Connecting up
02
5
En
English
Deutsch
Français
Nederlands
Italiano
Español
Р
ус
ский
Chapter 2:
Connecting up

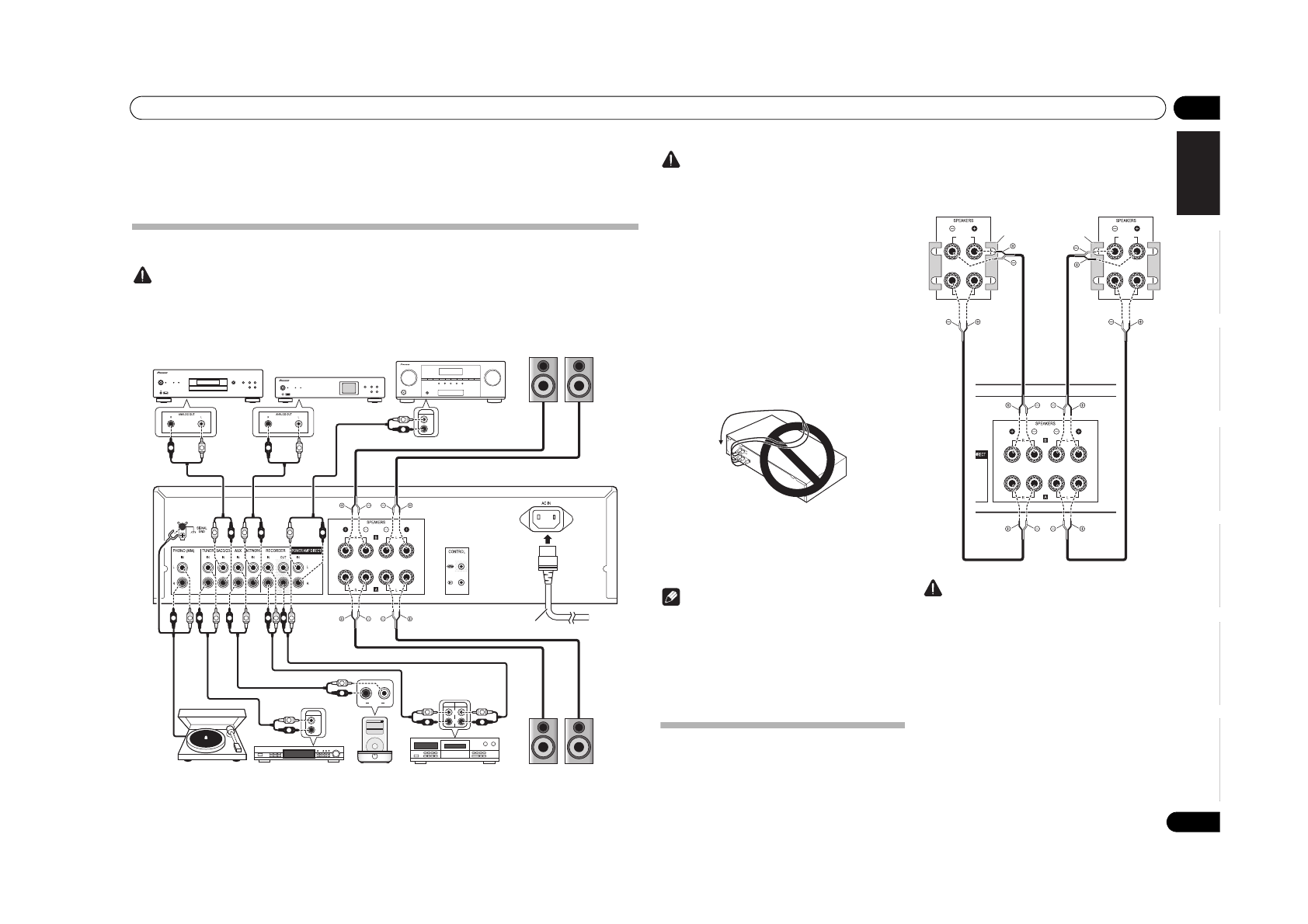

Making cable connections
Caution
• Before making or changing the connections, switch off the power and disconnect the power cord from the AC
outlet.
• Connect the power cord after all the connections between devices have been completed.
REC
R
L
OUTPUT
R
L
PLAY
R
L
AUDIO
OUTPUT
PRE OUT
R
L
L
R
L
R
L
R
L
R
L
R
L
R
L
R
L
R
L
R
L
R
L
R
L
R
L
R
L
R
L
R
MENU
iPod
Music>
Extras>
Settings>
Shuffle Songs
Backlight
SACD/CD player
Network audio player
PRE OUT jacks on pre-
amplifier or AV amplifier
Speaker system B
Speaker system A
Turntable
Tuner
iPod dock, etc
CD recorder or
tape deck
Right
Left
Right
Left
Power cord
(included)
A-30’s rear panel
A-30 only
Caution
• The
SIGNAL GND
terminal is provided to reduce
noise when connecting the unit to components
such as an analog turntable.
• Do not connect the
PHONO (MM)
terminals to any
component other than a turntable; also, do not
connect to a turntable equipped with built-in
equalizer. An excessively high sound output may be
produced, resulting in damage to your speakers or
other devices.
• The unit’s
PHONO (MM)
terminals are designed to
be used with turntables equipped with MM
(moving-magnet) type cartridges. Turntables
equipped with MC (moving-coil) cartridges cannot
be used.
• Make sure not to bend the cables over the top of
this unit (as shown in the illustration). If this
happens, the magnetic field produced by the
transformers in this unit may cause a humming
noise from the speakers.
• The unit’s
POWER AMP DIRECT
terminals should
never be connected to any other component’s
connectors except PRE-AMP OUT.
• If your turntable has a grounding wire, secure it to
the ground terminal on this amplifier.
Note
• When connecting a tape cassette deck, playback
noise may be heard, depending on the installation
location. This noise is caused by leakage flux from
the amplifier’s transformer. In this event, change
the installation location, or move the deck farther
from the amplifier.
• iPod is a trademark of Apple Inc., registered in the
U.S. and other countries.
About “Bi-wiring”
This unit can be used with speakers that support bi-
wiring. Be sure to connect the high-frequency and
low-frequency connections correctly.
• During playback, be sure that both the
SPEAKERS
A
button and
SPEAKERS B
button are set to ON
(page 7).
Caution
• When using bi-wiring to connect speakers, avoid
adverse affects on the amplifier by being sure to
remove the HIGH and LOW short bars provided
with the speakers. For detailed information, consult
the instructions provided with the speakers.
• When using speakers with removable network
circuits, note that if the network is removed, no
effect will be produced and damage may be caused
to the speaker.
• Another method of connection is to connect the
SPEAKERS A
terminals to HIGH and the
SPEAKERS B
terminals to LOW (reverse that shown
in the illustration).
HIGH
LOW
HIGH
LOW
Speaker system
Left
Speaker system
Right
A-30’s rear
panel
Remove the shorting
bar between the +
and – terminals.
