Installing SCC-C6407(P)

Installation Precautions

1) Make sure that the installation site can sufficiently support a minimum of

four times the net weight of the SCC-C6407(P) SmartDome Camera
and other accessories.

2) Install in an area where the space above the ceiling board is over 18 cm

(7 in.) high.

3) Use the supplied screws to fasten the camera to the bracket assembly.
4) Keep persons away from the installation area, as there is a risk of falling

objects.
Also, move valuables to a safe location before installation.

Separately Sold Products for Installation

Depending on the installation site, it may be convenient to use one of the
following products.

1) CEILING MOUNT BRACKET

(SBR-100DCM)

This bracket is used for installing
the SmartDome CAMERA in the
plenum above the drop ceiling.

2) WALL MOUNT ADAPTOR

(SADT-100WM)

This adaptor is used for installing the
indoor housing or the outdoor
housing for the SmartDome Camera
on a wall.

2-5

E

2-4

4. Adjust the switch on the Power Adapter to the proper voltage.

Then, connect the Power Adapter's plug to the Power Connector.

5. Connect the Remote Control

Terminal of the
SCC-C6407(P)
and the external Controller.

Controller

Adapter BOARD

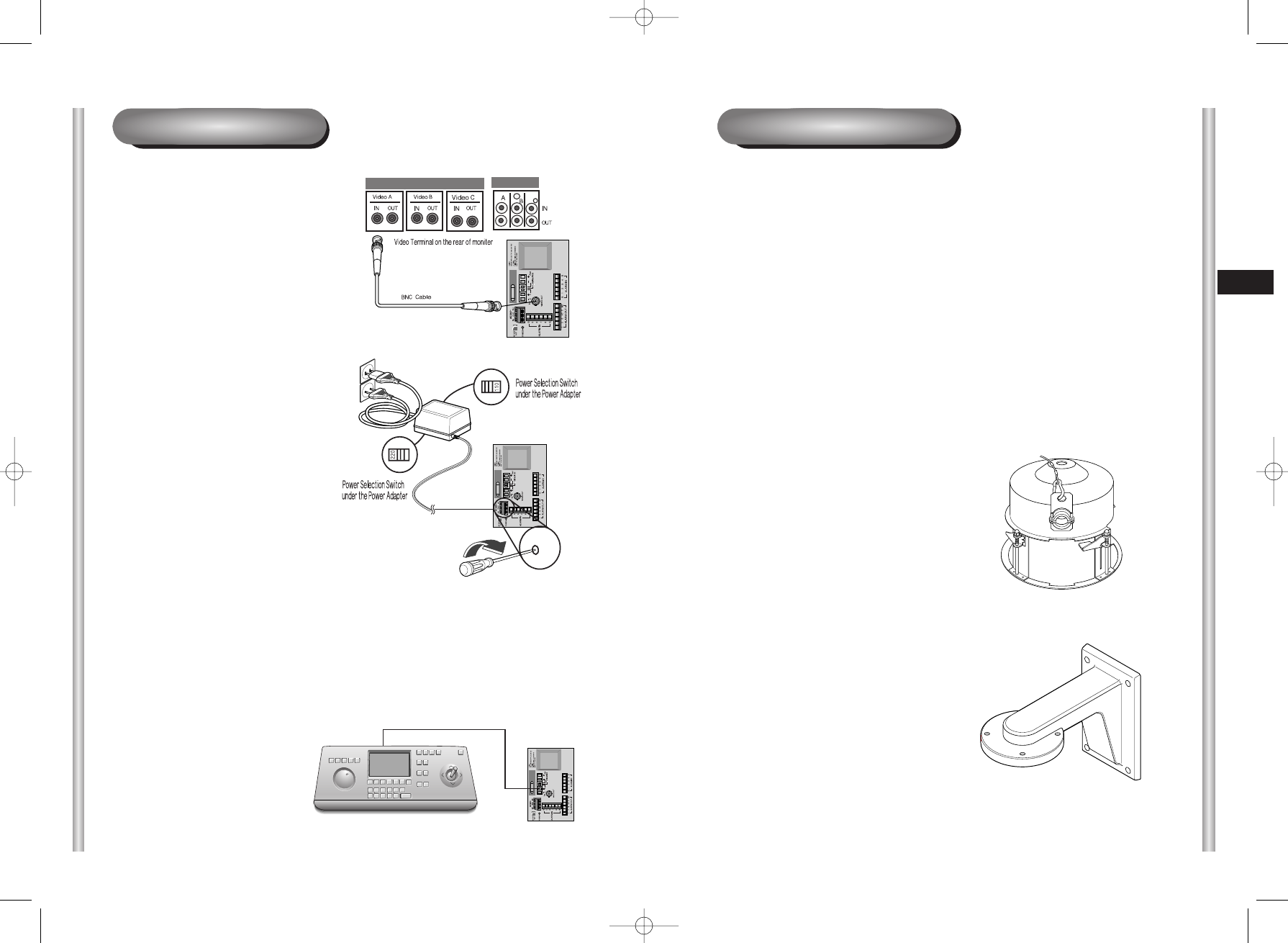

1. First, connect one end of the

BNC video cable connector to
the Video Output Terminal
(VIDEO OUT)

2. Then, connect the other end of

the connector to the Video Input
Terminal of the monitor.

3. Now connect the Power Adapter

Cable.  Use a driver to screw
one part of the two lines of
Power Adapter to Power Input
Terminal of the SCC-C6407(P).

Cable Connection
