When using diamond cutting discs, pay atten-
tion that the direction-of-rotation arrow on the
diamond cutting disc and the direction of rota-
tion of the machine (see direction-of-rotation ar-
row on the machine head) agree.
See graphics page for the mounting sequence.
To fasten the grinding/cutting disc, screw on
the clamping nut

12

 and tighten with the two-

pin spanner; see Section “Quick-clamping Nut ”.

f

After mounting the grinding tool and before
switching on, check that the grinding tool is
correctly mounted and that it can turn free-
ly. Make sure that the grinding tool does
not graze against the protection guard or
other parts.

Quick-clamping Nut

For convenient changing of grinding tools with-
out the use of additional tools, you can use the
quick-clamping nut

11

 instead of the clamping

nut

12

.

f

The quick-clamping nut 11 may be used only
for grinding or cutting discs.

Use only a flawless, undamaged quick-clamp-
ing nut 11.
When screwing on, pay attention that the side
of the quick-clamping nut 11 with printing
does not face the grinding disc; the arrow must
point to the index mark 20.

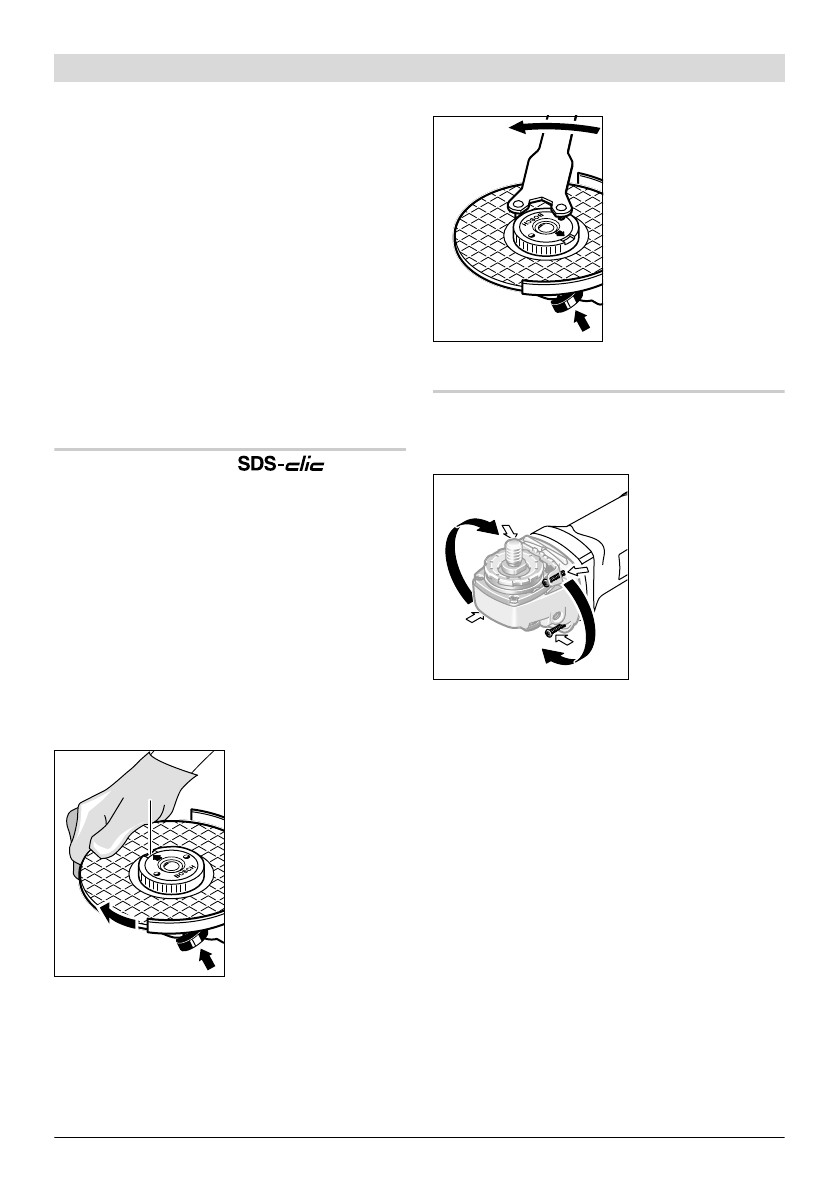

Lock the grinder spin-
dle with the spindle
lock button

3

. To tight-

en the quick-clamping
nut, firmly turn the
grinding disc in clock-
wise direction.

A properly attached,
undamaged quick-
clamping nut can be
loosened by hand
when turning the
knurled ring in anti-
clockwise direction.

Never loosen a tight
quick-clamping nut
with pliers. Always
use the two-pin span-
ner.

 Insert the two-pin

spanner as shown in the illustration.

Rotating the Machine Head

f

Before any work on the machine itself, pull
the mains plug.

The machine head
can be rotated with
respect to the ma-
chine housing in
90 °  steps. In this
manner, the On/Off
switch can be
brought into a more
convenient posi-
tion for special
working situations,

e. g., for cutting operations using the cutting
guide with dust extraction protection guard

17

or for left-handed persons.
Completely unscrew the four screws. Rotate the
machine head carefully,

without removing it

from the housing,

 to the new position. Screw in

and tighten the four screws again.
