 English |

21

Bosch Power Tools

1 609 92A 0E8 | (22.8.13)

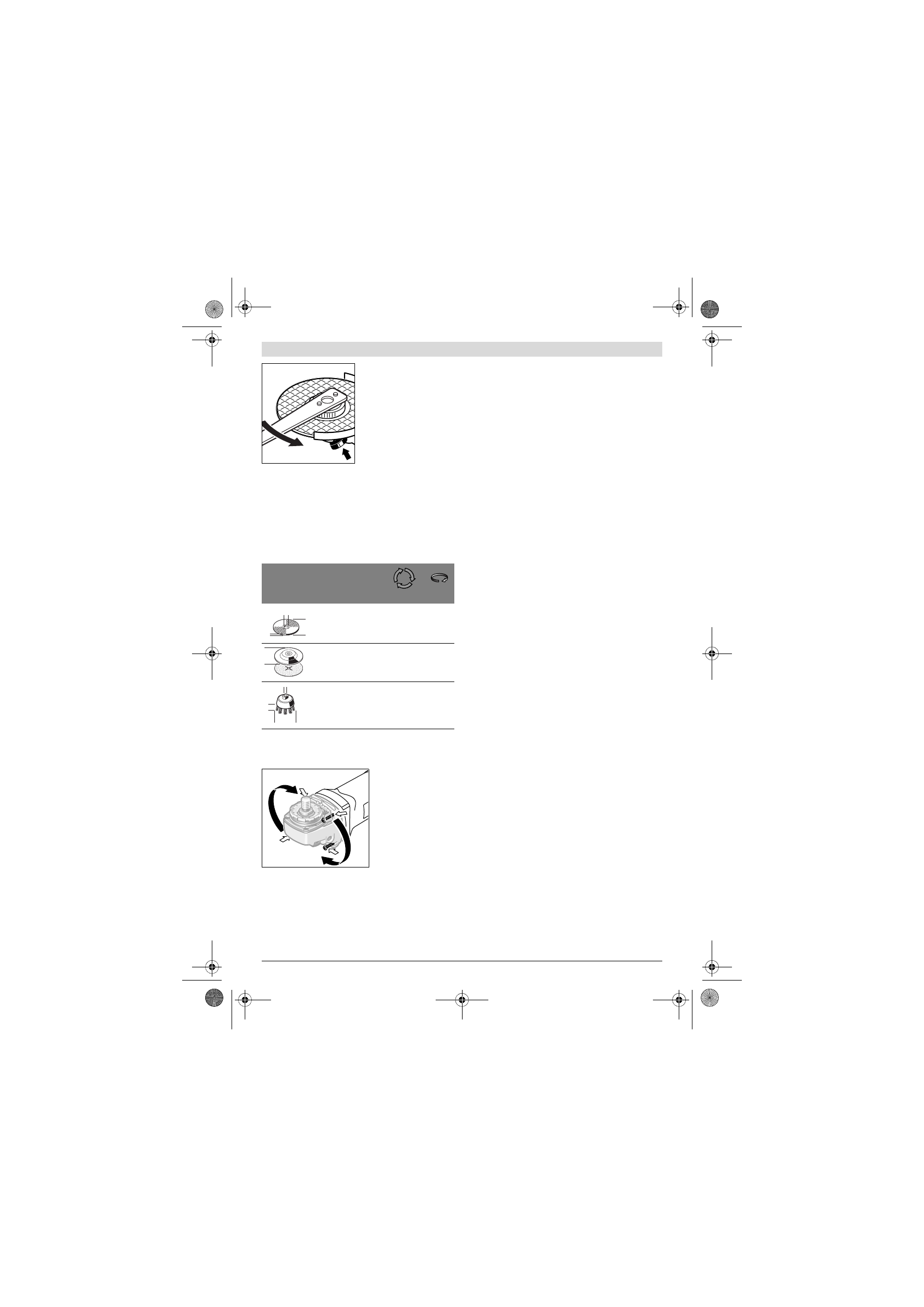

A properly attached, undam-
aged quick-clamping nut can
be loosened by hand when
turning the knurled ring in an-
ticlockwise direction.

Never loosen a tight quick-
clamping nut with pliers. Al-
ways use the two-pin span-
ner.

 Insert the two-pin span-

ner as shown in the
illustration.

Approved Grinding Tools

All grinding tools mentioned in these operating instructions
can be used.

The permissible speed [min

-1

] or the circumferential speed

[m/s] of the grinding tools used must at least match the values
given in the table.

Therefore, observe the permissible

rotational/circumferen-

tial speed

 on the label of the grinding tool.

Rotating the Machine Head



Before any work on the machine itself, pull the mains
plug.

The machine head can be
rotated with respect to
the machine housing in
90 °  steps. In this man-
ner, the On/Off switch
can be brought into a
more convenient posi-
tion for special working
situations, e. g., for cut-
ting operations using the
cutting guide with dust

extraction protection guard

20

 or for left-handed persons.

Completely unscrew the four screws. Rotate the machine
head carefully,

without removing it from the housing,

 to the

new position. Screw in and tighten the four screws again.

Dust/Chip Extraction



Dusts from materials such as lead-containing coatings,
some wood types, minerals and metal can be harmful to
one’s health. Touching or breathing-in the dusts can cause
allergic reactions and/or lead to respiratory infections of
the user or bystanders.
Certain dusts, such as oak or beech dust, are considered
as carcinogenic, especially in connection with wood-treat-
ment additives (chromate, wood preservative). Materials
containing asbestos may only be worked by specialists.

– As far as possible, use a dust extraction system suita-

ble for the material.

– Provide for good ventilation of the working place.
– It is recommended to wear a P2 filter-class respirator.

Observe the relevant regulations in your country for the
materials to be worked.



Prevent dust accumulation at the workplace.

Dusts can

easily ignite.

Operation

Starting Operation



Observe correct mains voltage! The voltage of the pow-
er source must agree with the voltage specified on the
nameplate of the machine. Power tools marked with
230 V can also be operated with 220 V.

When operating the machine with power from mobile genera-
tors that do not have sufficient reserve capacity or are not
equipped with suitable voltage control with starting current
amplification, loss of performance or untypical behavior can
occur upon switching on.
Please observe the suitability of the power generator being
used, particularly with regard to the mains voltage and fre-
quency.

Switching On and Off

To

start

 the power tool, push the On/Off switch

3

 forwards.

To

lock

 the On/Off switch

3

, press the On/Off switch

3

 down

at the front until it latches.

To

switch off

 the power tool, release the On/Off switch

3

 or,

if it is locked, briefly push down the back of the On/Off switch

3

 and then release it.



Check grinding tools before using. The grinding tool
must be mounted properly and be able to move freely.
Carry out a test run for at least one minute with no load.
Do not use damaged, out-of-centre or vibrating grind-
ing tools.

Damaged grinding tools can burst and cause in-

juries.

To save energy, only switch the power tool on when using it.

Reduced starting current (GWS 1100 / GWS 1400)

The electronic reduced starting current limits the power con-
sumption when switching the tool on and enables operation
from a 13 ampere fuse.

max.

[mm]

[mm]

D

b

d

[min

-1

]

[m/s]

115
125

6
6

22,2
22,2

11 000
11 000

80
80

115
125

–
–

–
–

11 000
11 000

80
80

75

30

M 14

11 000

45

b

d

D

D

D

b

d
