Technical Data

Declaration of Conformity

We declare under our sole responsibility that the product de-
scribed under “Technical Data” is in conformity with the fol-
lowing standards or standardization documents: EN 60745
according to the provisions of the directives 2011/65/EU,
2004/108/EC, 2006/42/EC.

Technical file (2006/42/EC) at:
Robert Bosch GmbH, PT/ETM9,
D-70745 Leinfelden-Echterdingen

Robert Bosch GmbH, Power Tools Division
D-70745 Leinfelden-Echterdingen
22.08.2013

Assembly

Mounting the Protective Devices



Before any work on the machine itself, pull the mains
plug.

Note:

After breakage of the grinding disc during operation or

damage to the holding fixtures on the protection guard/power
tool, the machine must promptly be sent to an after-sales ser-
vice agent for maintenance for addresses, see section “After-
sales Service and Application Service”.

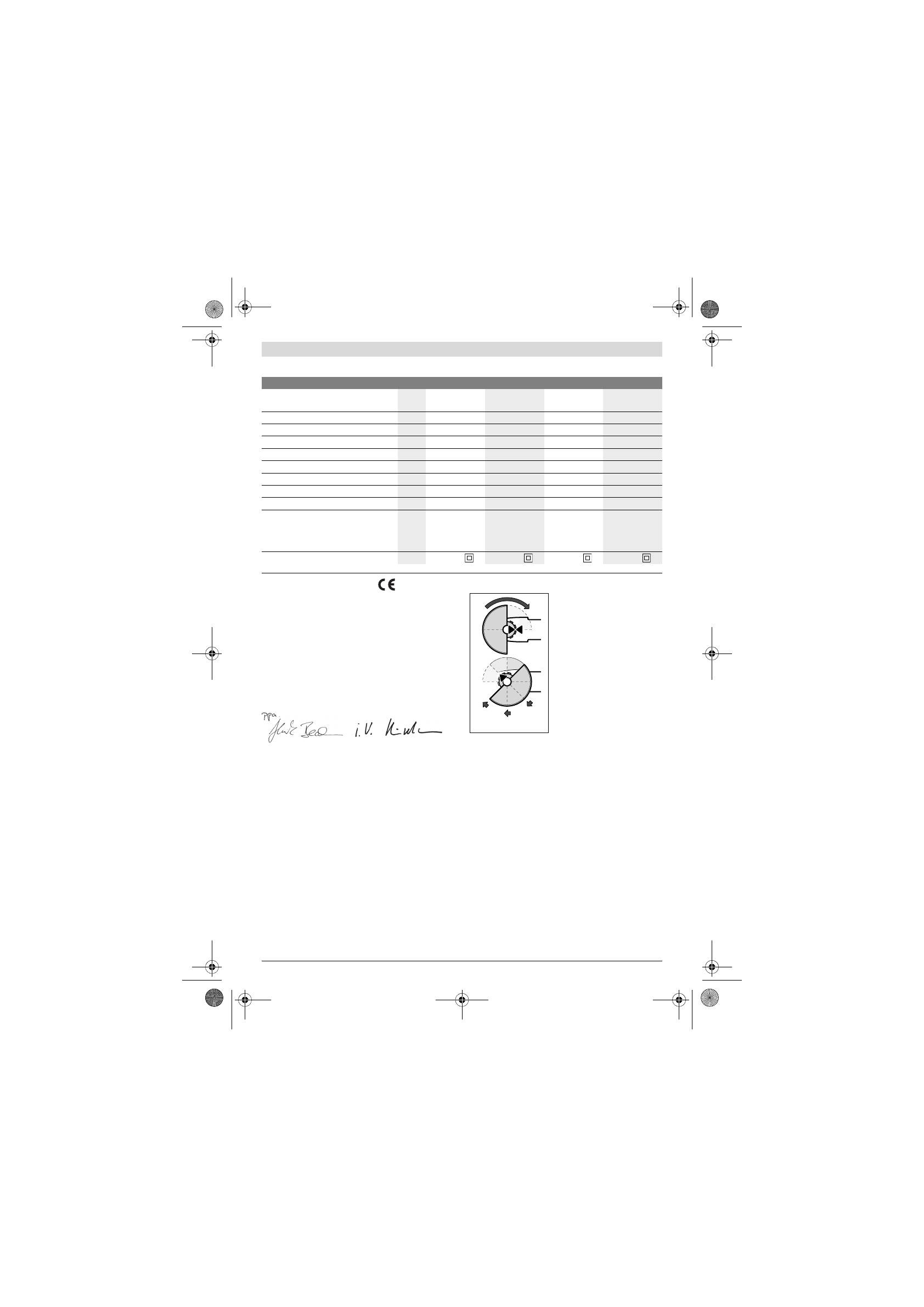

Protection Guard for Grinding

Place the protection guard

11

 on-

to the spindle collar as shown in
the illustration. The triangle marks
on the protection guard must cor-
respond with the respective
marks on the gear case.

Press the protection guard

11

 on-

to the spindle collar until the
shoulder of the protection guard
is seated against the flange of the
machine, and turn the protection
guard until it can clearly be heard
to engage.

Adjust the position of the protec-
tion guard

11

 to the requirements

of the work process. For this, press the release lever

1

 upward

and turn the protection guard

11

 to the required position.



Adjust the protection guard 11 in such a manner that
sparking is prevented in the direction of the operator.



The protection guard 11 may be turned only upon actu-
ation of the release lever 1! Otherwise the power tool
may not continue to be used under any circumstances
and must be taken to an after-sales service agent.

Note:

 The encoding keys on the protection guard

11

 ensure

that only a protection guard that fits the machine type can be
mounted.

Protection Guard for Cutting



For cutting with bonded abrasives, always use the pro-
tection guard for cutting 13.



Provide for sufficient dust extraction when cutting
stone.

The protection guard for cutting

13

 is mounted in the same

manner as the protection guard for grinding

11

.

Angle Grinder

GWS 1000

GWS 1000

GWS 1100

GWS 1400

Article number

3 601 H21 0..
3 601 H21 4..

3 601 H21 8..

3 601 H22 0..

3 601 H24 8..

Rated power input

W

1 000

1 000

1 100

1 400

Output power

W

630

630

660

820

Rated speed

min

-1

11 000

11 000

11 000

11 000

Grinding disc diameter, max.

mm

115

125

125

125

Thread of grinder spindle

M 14

M 14

M 14

M 14

Thread length (max.) of grinder spindle

mm

22

22

22

22

Reduced starting current

–

–





Constant electronic control

–

–





Weight according to EPTA-Procedure
01/2003
– with vibration-damping auxiliary handle
– with standard-auxiliary handle

kg

kg

2.2
2.1

2.3
2.1

2.1
2.0

2.4
2.2

Protection class

/

II

/

II

/

II

/

II

The values given are valid for a nominal voltage [U] of 230 V. For different voltages and models for specific countries, these values can vary.

Henk Becker
Executive Vice President
Engineering

Helmut Heinzelmann
Head of Product Certification
PT/ETM9
