20

 | English

1 609 92A 0E8 | (22.8.13)

Bosch Power Tools

Cutting Guide with Dust Extraction Protection Guard

The cutting guide with dust extraction protection guard

20

 is

mounted in the same manner as the protection guard for
grinding

11

.

Extraction Hood for Sanding

The extraction hood

6

 can be used for low-dust sanding of

paint, varnish and plastics in conjunction with the carbide
grinding head

8

 or the rubber sanding plate

16

 with a sanding

sheet

17

. The extraction hood

6

 is not suitable for working

metals.

A suitable Bosch vacuum cleaner can be connected to the ex-
traction hood

6

.

The extraction hood

6

 is mounted in the same manner as the

protection guard

11

. The brush collar is exchangeable.

Auxiliary Handle



Operate your machine only with the auxiliary handle 4.

Screw the auxiliary handle

4

 on the right or left of the machine

head depending on the working method.

Hand Guard



For operations with the rubber sanding plate 16 or with
the cup brush/wheel brush/flap disc, always mount the
hand guard 15.

The hand guard

15

 is fastened with the auxiliary handle

4

.

Mounting the Grinding Tools



Before any work on the machine itself, pull the mains
plug.



Do not touch grinding and cutting discs before they
have cooled down.

The discs can become very hot while

working.

Clean the grinder spindle

5

 and all parts to be mounted.

For clamping and loosening the grinding tools, lock the grind-
er spindle with the spindle lock button

2

.



Actuate the spindle lock button only when the grinder
spindle is at a standstill.

Otherwise, the machine may be-

come damaged.

Grinding/Cutting Disc

Pay attention to the dimensions of the grinding tools. The
mounting hole diameter must fit the mounting flange without
play. Do not use reducers or adapters.

When using diamond cutting discs, pay attention that the di-
rection-of-rotation arrow on the diamond cutting disc and the
direction of rotation of the machine (see direction-of-rotation
arrow on the machine head) agree.

See graphics page for the mounting sequence.

To fasten the grinding/cutting disc, screw on the clamping nut

9

 and tighten with the two-pin spanner; see Section “Quick-

clamping Nut ”.



After mounting the grinding tool and before switching
on, check that the grinding tool is correctly mounted
and that it can turn freely. Make sure that the grinding
tool does not graze against the protection guard or oth-
er parts.

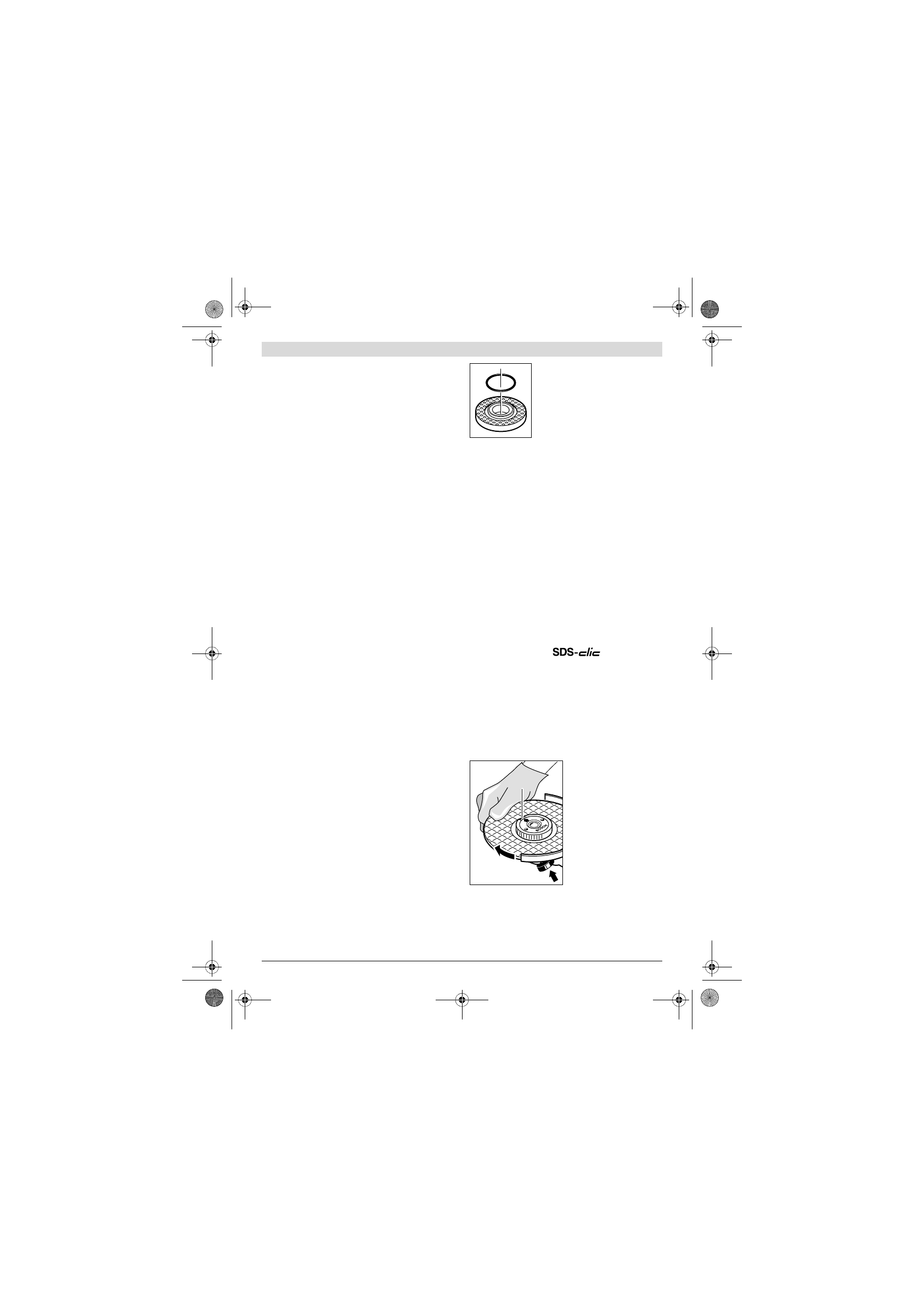

A plastic part (O-ring) is fitted around
the centring collar of mounting flange

7

.

If the O-ring is missing or damaged,

the mounting flange

7

 must be replaced

before resuming operation.

Flap Disc



For operations with the flap disc, always mount the
hand guard 15.

Rubber Sanding Plate



For operations with the rubber sanding plate 16, al-
ways mount the hand guard 15.

See graphics page for the mounting sequence.

Screw on the round nut

18

 and tighten with the two-pin

spanner.

Cup Brush/Disc Brush



For operations with the cup brush/wheel brush, always
mount the hand guard 15.

See graphics page for the mounting sequence.

The cup brush/disc brush must be able to be screwed onto
the grinder spindle until it rests firmly against the grinder
spindle flange at the end of the grinder spindle threads. Tight-
en the cup brush/disc brush with an open-end spanner.

Quick-clamping Nut

For convenient changing of grinding tools without the use of
additional tools, you can use the quick-clamping nut

10

 in-

stead of the clamping nut

9

.



The quick-clamping nut 10 may be used only for grind-
ing or cutting discs.

Use only a flawless, undamaged quick-clamping nut 10.
When screwing on, pay attention that the side of the
quick-clamping nut 10 with printing does not face the
grinding disc; the arrow must point to the index mark 23.

Lock the grinder spindle with
the spindle lock button

2

. To

tighten the quick-clamping
nut, firmly turn the grinding
disc in clockwise direction.

23
