28

Chapter 4

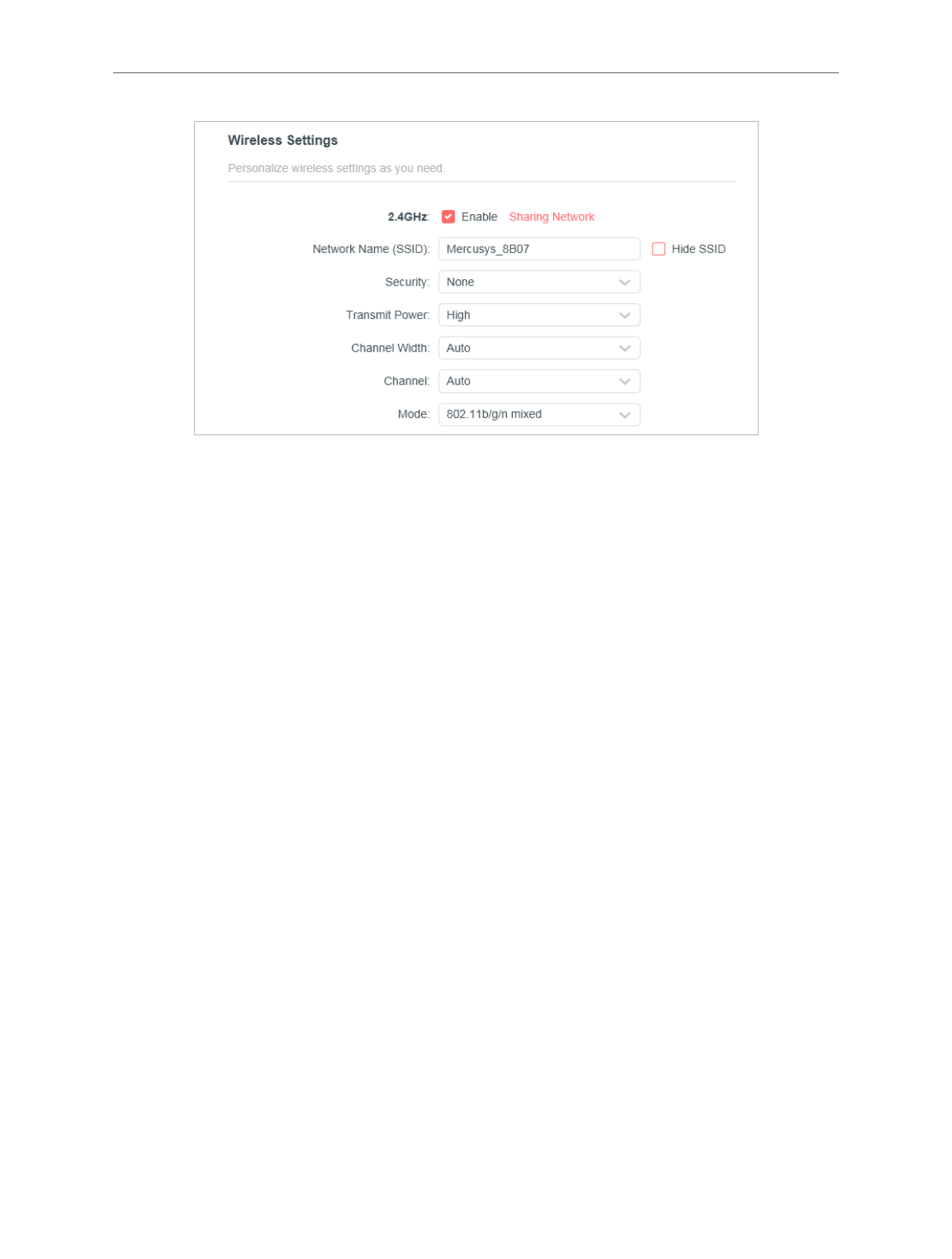

•  2.4GHz

 - Select this checkbox to enable the 2.4GHz wireless network.

•  Network Name (SSID)

 - Enter a value of up to 32 characters. The same Name (SSID) must

be assigned to all wireless devices in your network.

•  Hide SSID

- Select this checkbox if you want to hide the 2.4GHz network name (SSID)

from the Wi-Fi network list. In this case, you need to manually join the network.

•  Security

 - Select an option from the Security drop-down list.

•  None

- No security. It is highly recommend you enable the wireless security to

protect your wireless network from unauthorized access.

•  WPA-PSK/WPA2-Personal

 - It’s the WPA/WPA2 authentication type based on pre-

shared passphrase. It’s also the recommended security type.

•  WPA /WPA2-Enterprise

 - It’s based on Radius Server.

•  WEP

 - It is based on the IEEE 802.11 standard.

•  Version

- Keep default version value.

•  Encryption

 - Select

Auto

,

TKIP

 or

 AES

. We recommend you keep the default settings.

•  Transmit Power

 - Select

High

,

Middle

 or

Low

 to specify the data transmit power. The

default and recommended setting is

High

.

•  Channel Width

- Select a channel width (bandwidth) for the wireless network.

•  Channel

 - Select an operating channel for the wireless network. It is recommended to

leave the channel to

Auto

, if you are not experiencing the intermittent wireless connection

issue.

•  Mode

 - You can choose the appropriate “Mixed” mode.

4. 3. 2.  Guest Network

Guest Network allows you to provide Wi-Fi access for guests without disclosing your host
network. When you have guests in your house, apartment, or workplace, you can create a
