104

Chapter 7

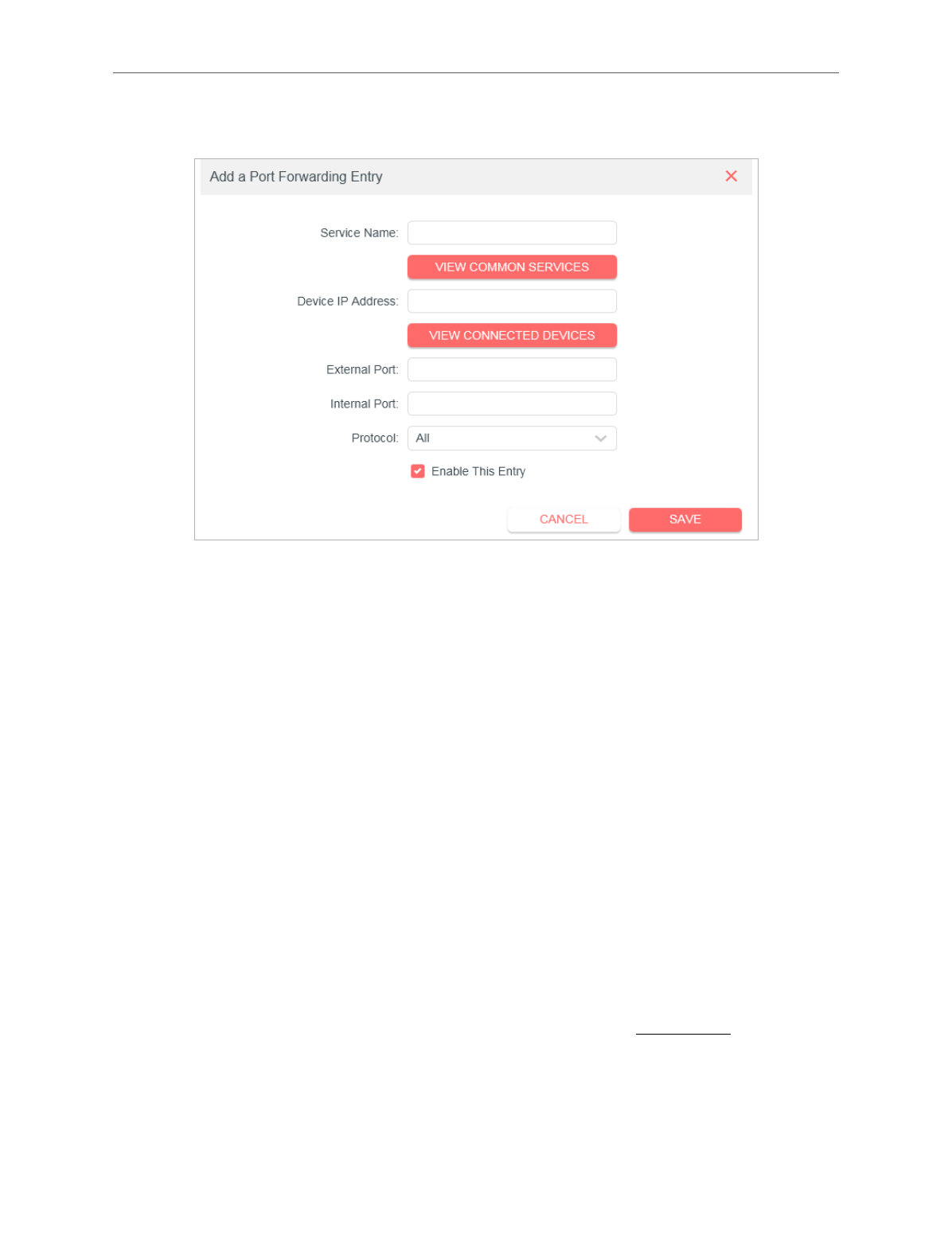

4.

Click

Add

.

5.

Click

VIEW COMMON SERVICES

 and select

HTTP

. The

External Port

,

Internal Port

 and

Protocol

 will be automatically filled in.

6.

Click

VIEW CONNECTED DEVICES

 and select your home PC. The

Device IP

Address

 will be automatically filled in. Or enter the PC’s IP address 192.168.1.100

manually in the

Device IP Address

 field.

7.

Click

SAVE

.

Note:

•

It is recommended to keep the default settings of

Internal Port

 and

Protocol

 if you are not clear about which

port and protocol to use.

•

If the service you want to use is not in the

Common Services

 list, you can enter the corresponding

parameters manually. You should verify the port number that the service needs.

•

You can add multiple virtual server rules if you want to provide several services in a router. Please note that

the

 External Port

should not be overlapped.

Done!

Users on the internet can enter

http:// WAN IP

 (in this example: http:// 218.18.232.154) to

visit your personal website.

Note:

•

If you have changed the default

External Port

, you should use

http:// WAN IP: External Port

 to visit the

website.

•

The WAN IP should be a public IP address. For the WAN IP is assigned dynamically by the ISP, it is

recommended to apply and register a domain name for the WAN referring to

Dynamic DNS

. Then users on

the internet can use

http:// domain name

 to visit the website.
