10

En

Connections

Make video connections to your receiver and
TV so that you can use one TV for several
different video sources (LD, VCR, etc.) by
simply switching the input source selector of
your receiver.
This unit has several types of video output
jacks. Use the one that corresponds to the
input jacks of the component to be connected.

Component video jacks <A>

Component video connections achieve higher
fidelity color reproduction than S-video
connections by transmitting video signals on
separate wires for luminance (Y: green) and
chrominance (P

B

: blue, P

R

: red).

Connect the VIDEO OUT - COMPONENT
(Y, P

B

/C

B

, P

R

/C

R

) jacks of this unit to

component input jacks of your AV receiver
and then to those of your TV using a

commercially available component video
cable. Observe the color of each jack when
you make connections.
If your receiver does not have component
output jacks, you can achieve a better video
image by connecting the component output
jacks of this unit directly to the component
input jacks of your TV.

S-video jack <B>

S-video connections achieve a clearer picture
than composite video connections by
transmitting video signals on separate wires
for luminance (Y) and chrominance (C).
Connect the VIDEO OUT - S VIDEO jack of
this unit to an S-video input jack of your AV
receiver and then to that of your TV using a
commercially available S-video cable.

Composite video jack <C>

Connect the VIDEO OUT - VIDEO jack of
this unit to a video input jack of your AV
receiver and then to that of your TV using the
supplied composite video cable (Europe and
Russia models) or audio/video cable (other
models).

SCART terminal <D>
(Europe and Russia models only)

You may connect the TV directly to this unit.
Connect the AV terminal of this unit to the
SCART input terminal of your TV using a
commercially available SCART cable.
The AV terminal outputs composite and RGB
video signals together with 2-ch audio signal.
Set the output of the video signal in
“Switching YUV/RGB (Europe and Russia
models only)” on page 36.

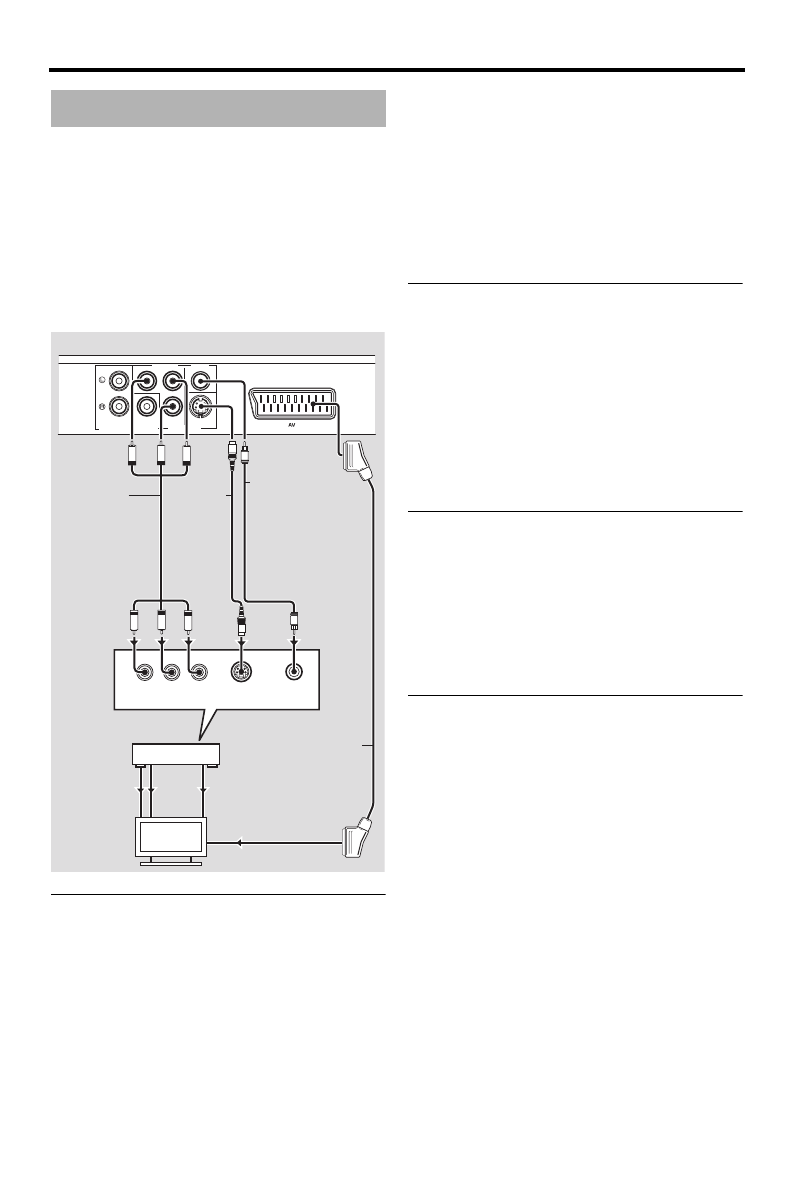

Video connections

AUDIO OUT

COMPONENT

VIDEO

S VIDEO

AV

COAXIAL

P

R

/

C

R

P

B

/

C

B

Y

VIDEO OUT

DIGITAL OUT

VIDEO

OUT

VIDEO

IN

S VIDEO

OUT

COMPONENT

VIDEO OUT

COMPONENT

VIDEO IN

S VIDEO

IN

COMPONENT

VIDEO IN

S VIDEO

INPUT

VIDEO

INPUT

<D>

<C>

<B>

<A>

Y

P

B

/C

B

P

R

/C

R

P

R

Y

P

B

P

R

Y

P

B

S

V

S

V

Composite video

cable (Europe and

Russia models)

or audio/video

cable

(other models)

(supplied)

AV receiver

TV

This unit (Europe model)

Component

video cable

S-video

cable

SCART cable
