7

En

Functional Overview

Eng

lish

1

AC power cable

Plug the power cable into the AC wall outlet.

2

REMOTE CONTROL (IN, OUT) jacks

Connect the REMOTE CONTROL (IN) jack of
this unit to the remote control output jack of
your Yamaha AV receiver (see page 12).
Connect the REMOTE CONTROL (OUT) jack
of this unit to the remote control input jack of
your Yamaha component.

3

HDMI jack

Connect to the HDMI input jack of your HDMI
component (see page 11).

4

AUDIO OUT (L, R) jacks

Connect to the audio input jacks of your AV
receiver or stereo system (see page 9).

5

DIGITAL OUT - COAXIAL jack

Connect to the coaxial input jack of your AV
receiver (see page 9).

6

VIDEO OUT - COMPONENT (Y, P

B

/C

B

, P

R

/

C

R

) jacks

Connect to the component input jacks of your
AV receiver (see page 10).

7

VIDEO OUT - S VIDEO jack

Connect to the S-video input jack of your AV
receiver (see page 10).

8

VIDEO OUT - VIDEO jack

Connect to the composite video input jack of
your AV receiver (see page 10).

9

AV terminal
(Europe and Russia models only)

Connect to the SCART input terminal of your
TV (see page 10).

Caution: Do not touch the inner pins of the jacks on the rear panel of this unit.

Electrostatic discharge may cause permanent damage to this unit.

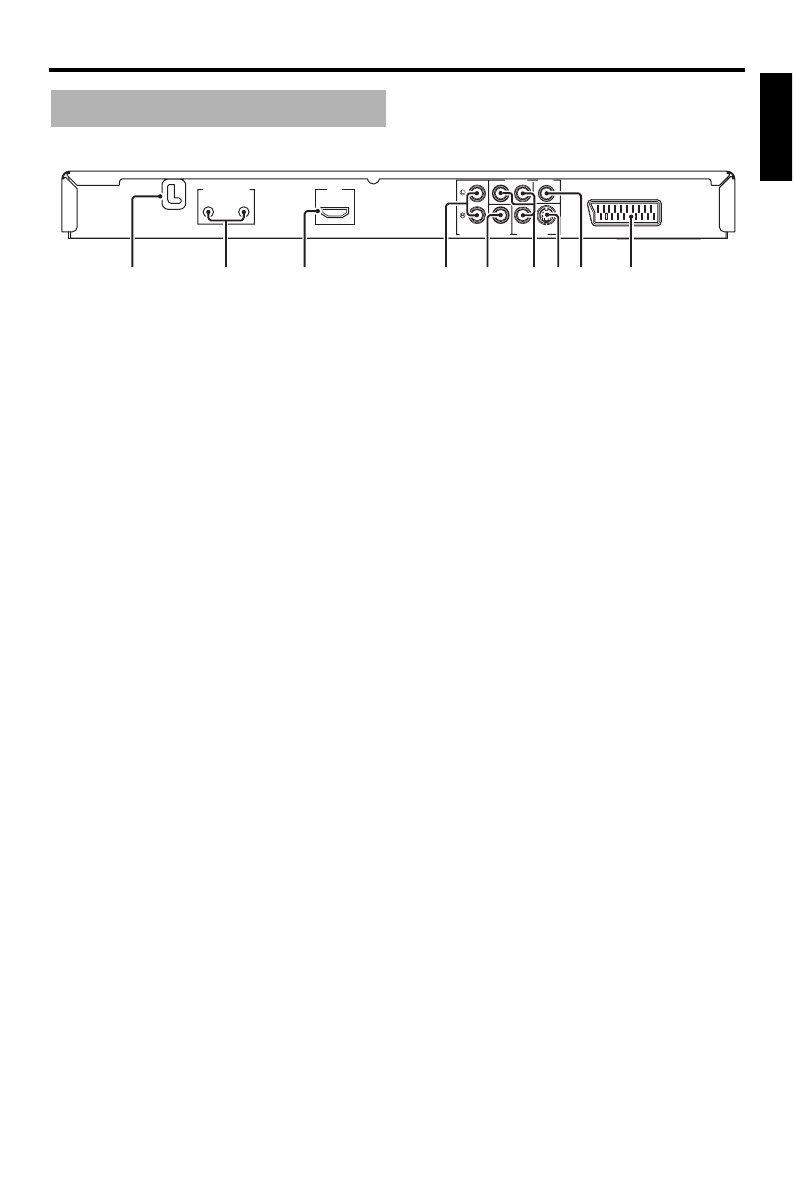

Rear panel

MAINS

REMOTE CONTROL

OUT

HDMI

AUDIO OUT

COMPONENT

VIDEO

S VIDEO

AV

COAXIAL

P

R

/

C

R

P

B

/

C

B

Y

VIDEO OUT

DIGITAL OUT

IN

9

1

4

5

6 7 8

3

2

(Europe model)
