9

En

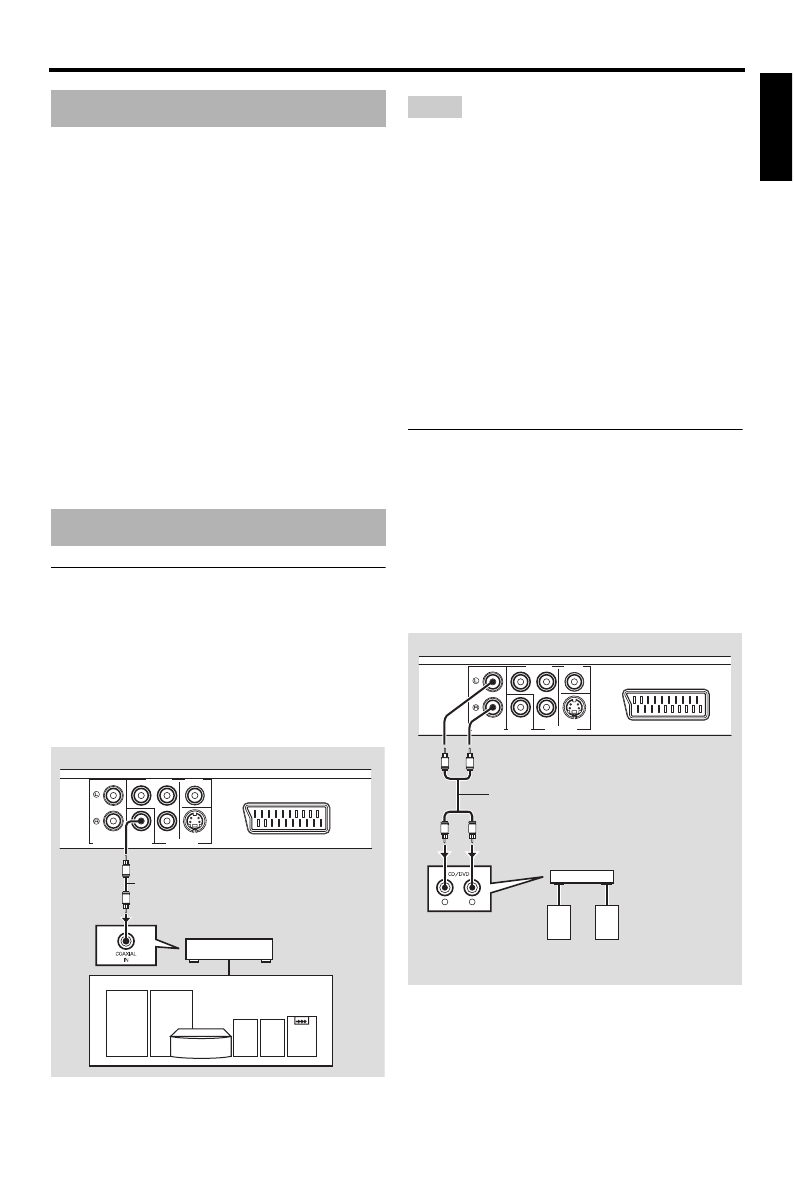

Connections

Eng

lish

Be sure to turn off this unit and unplug the
power cable before you make or change
connections.
• Depending on the component you want to

connect, there are various ways to make
connections. Possible connections are
described below.

• Refer to the manuals supplied with your

other components as necessary to make the
best connections.

• Do not connect this unit via your VCR. The

video quality could be distorted by the copy
protection system.

• Do not connect the audio out jack of this unit

to the phono in jack of your audio system.

Digital connection

This unit has a digital coaxial output jack.
Connect the DIGITAL OUT - COAXIAL jack
of this unit to your AV receiver equipped with
a Dolby Digital or DTS decoder using a
commercially available coaxial digital audio
cable.

• You need to set [DIGITAL OUTPUT] to [ALL]

(see “DIGITAL OUTPUT” on page 32).

• If the audio format of the digital output does not

match the capabilities of your receiver, the
receiver produces a distorted sound or no sound
at all. Make sure to select the appropriate audio
format from the menu screen on the disc.
Pressing

AUDIO

 on the remote control once or

more may change not only the audio languages
but also the audio format. The selected format
appears on the TV screen for several seconds.

• If you want to enjoy Dolby Digital and DTS

formats, you must connect this unit to an AV
receiver that supports these formats.

Analog connection

This unit has 2-ch analog output jacks.
Connect the AUDIO OUT (L, R) jacks of this
unit to the corresponding input jacks of your
audio component (such as a stereo amplifier)
using the supplied RCA stereo cable (Europe
and Russia models) or audio/video cable
(other models).

General notes on connections

Audio connections

AUDIO OUT

COMPONENT

VIDEO

S VIDEO

AV

COAXIAL

P

R

/

C

R

P

B

/

C

B

Y

VIDEO OUT

DIGITAL OUT

C

C

This unit (Europe model)

AV receiver

Speakers

Coaxial digital audio cable

Notes

AUDIO OUT

COMPONENT

VIDEO

S VIDEO

AV

COAXIAL

P

R

/

C

R

P

B

/

C

B

Y

VIDEO OUT

DIGITAL OUT

L

R

L

R

R

L

Stereo

amplifier

RCA stereo cable (Europe and Russia

models) or audio/video cable

(other models)

(supplied)

Speakers

This unit (Europe model)

Connections
