15
GB
DVD OUT
LINE OUT 2
VCR
DVD/VCR
ANTENNA IN
RF OUT
LINE IN 1
AUDIO
R
L
VIDEO
AUDIO
R
L
VIDEO
LINE OUT 1
DIGITAL
AUDIO
AUDIO
R
L
S-VIDEO
Y
P
R
(C
R
)
P
B
(C
B
)
COMPONENT
VIDEO
IN
AUDIO
IN
L
R
Yellow
White (L)
Red (R)
Yellow
White (L)
Red (R)
Required cable
VIDEO/AUDIO cable (supplied)
Jack and Plug Colours
Video: Yellow
Audio Left: White
Audio Right: Red
This Product
To DVD/VCR shared
VIDEO/AUDIO out jacks
VIDEO/AUDIO cable
(supplied)
To VIDEO/AUDIO
input jacks
TV
(with external input jacks)
(White) (Red)
(Yellow)
(Red)
(White)
(Yellow)

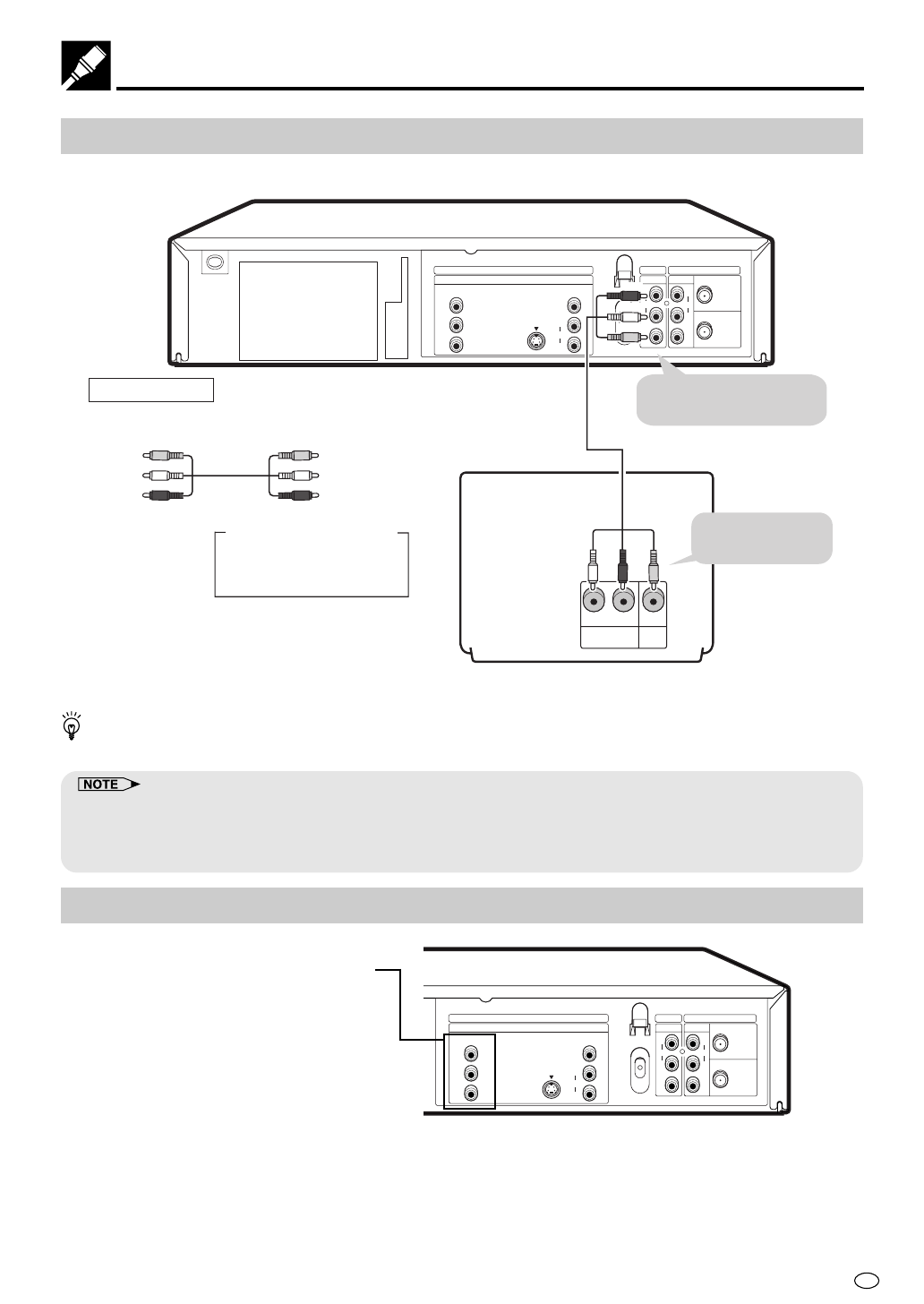

Connecting a TV Equipped with VIDEO/AUDIO Input Jacks
Basic Connection
You will not be able to hear all of the sound being output by the Product if you use the supplied VIDEO/AUDIO
cable to a monaural TV that has only one AUDIO input jack.
•
Make sure that colours of the jacks and plugs match up when connecting the cable.
•
Connect the Product directly to the TV. If you attempt to view video on a TV connected via a VCR, the copy protection
function will scramble the picture.
•
If you want to listen to the audio through audio equipment, connect only the VIDEO cable to the TV.
Using the Component Colour (Y, P
B
(C
B
) and P
R
(C
R
)) Output Jacks
DVD OUT
LINE OUT 2
VCR
DVD/VCR
ANTENNA IN
RF OUT
LINE IN 1
AUDIO
R
L
VIDEO
AUDIO
R
L
VIDEO
LINE OUT 1
DIGITAL
AUDIO
AUDIO
R
L
S-VIDEO
Y
P
R
(C
R
)
P
B
(C
B
)
COMPONENT
Colour Output Jacks (Y, P
B
(C
B
)
and
P
R
(C
R
)):
Some TVs and monitors are equipped with
input jacks for the component colour
signals (Y, P
B
(C
B
)
and P
R
(C
R
)). By connect-
ing these input jacks to the corresponding
output jacks on the Product, you can enjoy
higher quality playback images.
If you are using a TV or monitor equipped
with Y, P
B
(C
B
)
and P
R
(C
R
)
jacks, use these
jacks rather than the S-VIDEO OUT jack.
