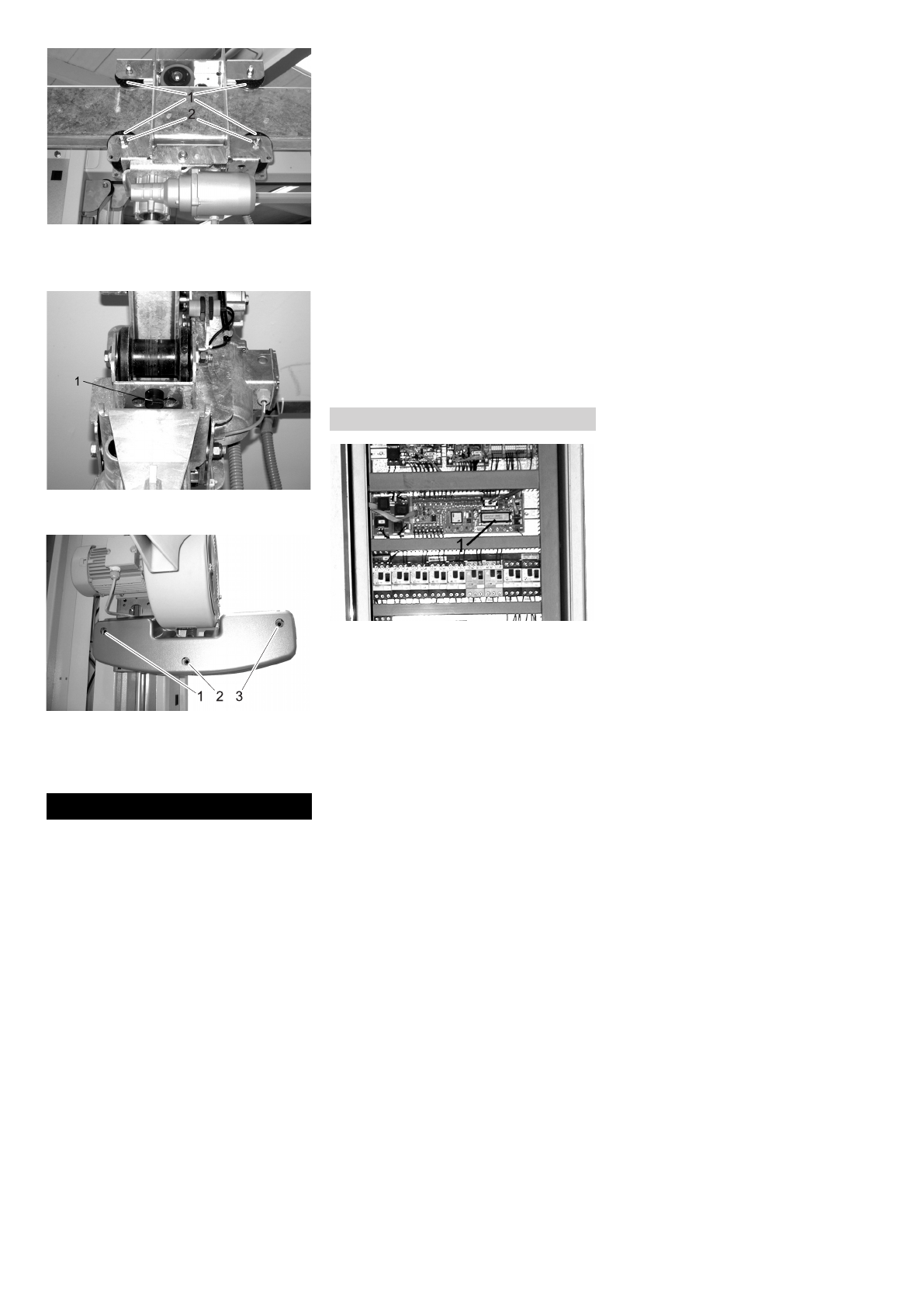

Figure 7
1 Running rollers
2 Eccentric

Figure 8
1 Stop buffer side-brush oscillate

Figure 9

1 Light barrier of drier forward
2 Light barrier of drier in the middle
3 Light barrier of drier behind



Danger

Risk of electric shock!
Work on electrical plant only to be carried
out by qualified electricians.
Switch the plant to voltage-free with all
work, in this case switch the plant at the
main switch to “0”and secure against it
switching on again.

Who may remedy faults?
Operator

Work designated with the sign “Operator”
may only be carried out by persons who
have been instructed in the safe operation
and maintenance on the wash plant

Electricians

Persons with a professional training in the
electro-technical area.

Customer Service

Work designated with the sign “Customer
Service” may only be done by the fitters of
Kärcher Customer Service or fitters who
have been authorised by Kärcher.



Danger

Risk of electric shock.
Switch on the plant voltage-free, in addition
switch on the main switch to “0” and secure
it against being switched on again.
Risk of injury from compressed air unex-
pectedly emerging. . Compressed air con-
tainers also remain under pressure after
the plant has been switched off. It is abso-
lutely necessary to get rid of pressure be-
fore starting work on the plant. To do this,
turn off the compressed air supply and use
the manual operation to move the wheel
wash system in and out until the pressure
has been released.  Then check for the ab-
sence of pressure on the manometer at the
maintenance unit.
Risk of eye injuries from parts flying off or
dirt. Keep clear off rotating brushes. Gog-
gles must be worn during maintenance
work.

1 Display
Display of faults recognised by the Control
is shown in the display of control unit.
