10

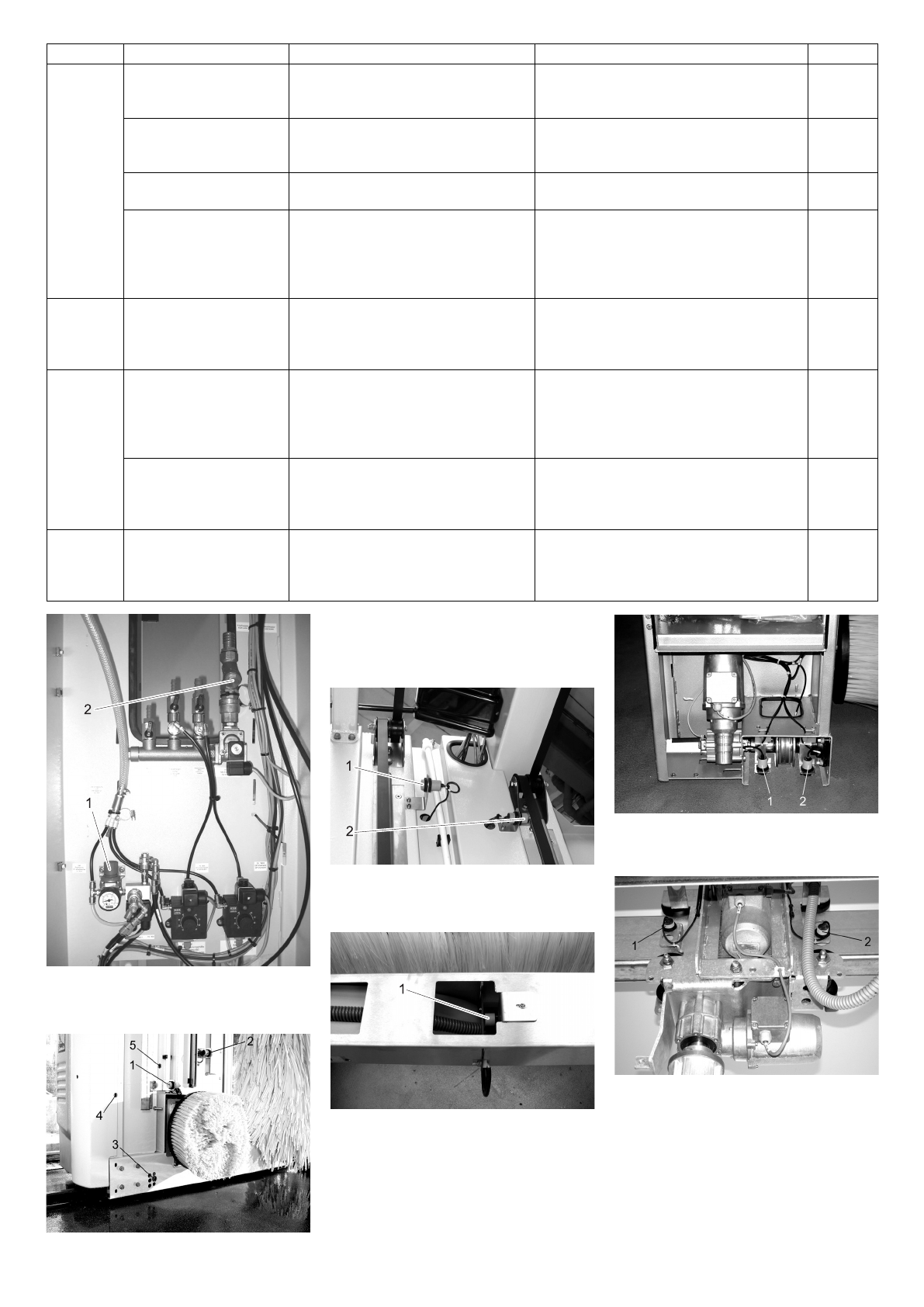

Figure 1
1 Pressure lessener wheel wash
2 Dirt catcher

Figure 2

1 Lower roof brush limit switch (DBU)
2 Lower drier limit switch (TRU)
3 Light barrier wheel wash facility
4 Light barrier position 1

Figure 3
1 Upper roof brush limit switch (DBO)
2 Upper drier limit switch (TRO)

Figure 4
1 Limit switch for roof drier safety bracket

Figure 5
1 Limit switch for travel start (PTS)
2 Limit switch for travel end (PFE)

Figure 6
1 Limit switch for side brush 1 start

(SB1_a)

2 Limit switch for side brush 1 end

(SB1_e)

Time

Activity

Assembly affected

Remedy

of whom

monthly or
after 2000
washes

Clean filter

Detergent suction filter in the detergent
containers

Screw off the cover of the detergent con-
tainers and rinse the filters of the suction
hoses with clean water.

Operator

Clean dirt catcher

Dirt catcher Fresh water (option), Dirt
catcher Fresh water (Diag. 1)

Shut off water supply, screw off cover of the
dirt catcher, rinse out filter with water, re-in-
sert filter and screw on cover.

Operator

Visual check of belt for
roof brush, drier

Belt of roof brush, drier

Visual inspection: Check status of the belts,
replace, if necessary (Customer Service).

Custom-
er Service

Tighten and and check dis-
tance of all limit switches

All limit switches (see diagrams 2 to 6) Check of the nominal distances of 4mm: Use a

4mm thick flat material as feeler gage, measure
distance between limit switch and switching flag.
Readjust limit switch, if necessary by shifting
both plastic nuts.

Custom-
er Service

half-yearly
or after
5000
washes

Check energy supply line Cables and hoses at: - energy column

or - energy chain or - cable tow

Visible inspection: Condition of hoses and
cables, leaks in hoses and connectors.
Check ease of movement of roller truck at
cable tow.

Operator

yearly or
after 10000
washes

Check plastic rollers and
rubber buffers

Running rollers (Diag. 7) and stop-buff-
ers of the side-brushes’ wagon, stop-
buffers of the side-brushes oscillate
(Diag. 8)

Visual inspection: check state of the guide
rollers and play between rollers and guide
rails (maximum 5 mm play, binding of the
guide rollers at least 15 mm thick). Check
rubber buffers for cracks, visible inspection.

Operator

Check running surface

SB traversing operation

Check that running surface for SB travers-
ing operation is clean. Remove contamina-
tions using special cleaners (for e.g.6.869-
035).

Operator

every two
years or af-
ter 20000
washes

Replace belts and pulley Belts and pulleys drier and roof brush Replace parts

Custom-
er Service

29

EN
