Hardware Installation
- 25 -

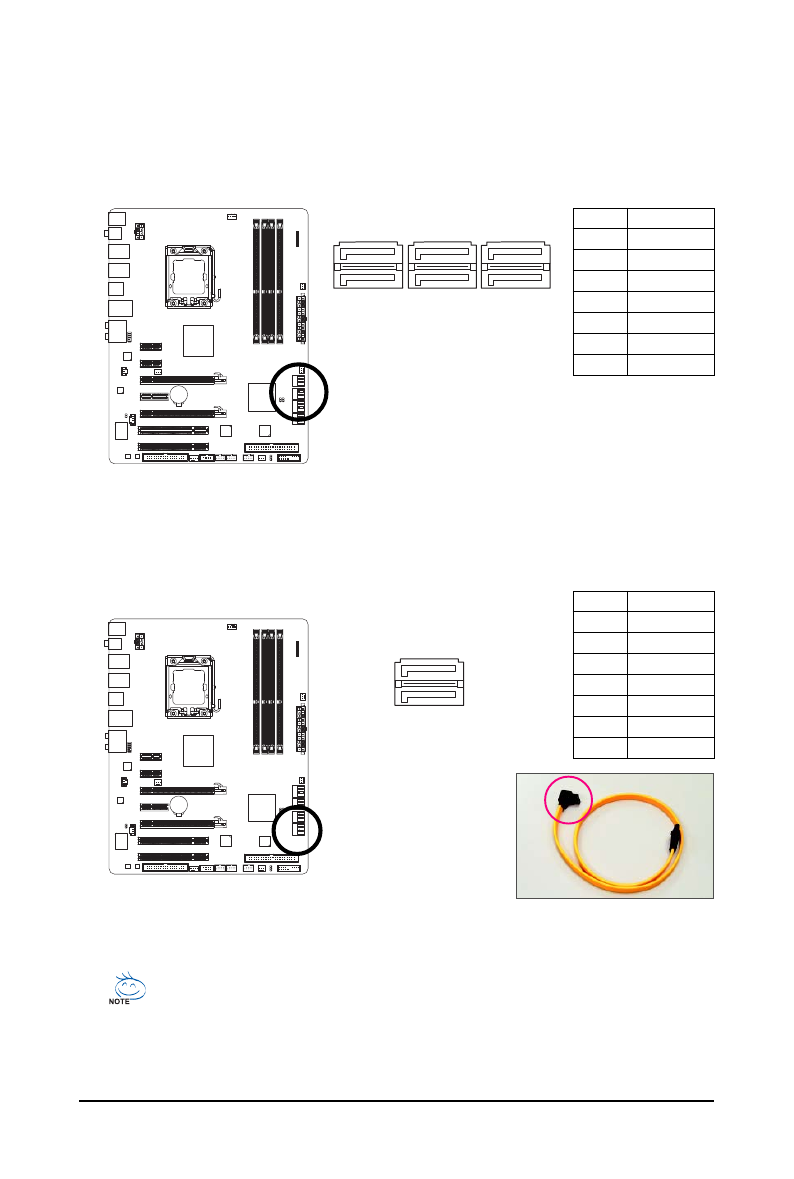

9) SATA2_0/1/2/3/4/5 (SATA 3Gb/s Connectors, Controlled by ICH10R, Blue)
The SATA connectors conform to SATA 3Gb/s standard and are compatible with SATA 1.5Gb/s
standard. Each SATA connector supports a single SATA device. The ICH10R controller supports
RAID 0, RAID 1, RAID 5 and RAID 10. Refer to Chapter 5, "Configuring SATA Hard Drive(s)," for
instructions on configuring a RAID array.
Pin No.
Definition
1
GND
2
TXP
3
TXN
4
GND
5
RXN
6
RXP
7
GND
•
A RAID 0 or RAID 1 configuration requires at least two hard drives. If more than two hard
drives are to be used, the total number of hard drives must be an even number.
•
A RAID 5 configuration requires at least three hard drives. (The total number of hard
drives does not have to be an even number.)
•
A RAID 10 configuration requires at least four hard drives and the total number of hard
drives must be an even number.
Please connect the L-shaped end
of the SATA 3Gb/s cable to your
SATA hard drive.
SATA2_5
SATA2_4
SATA2_3
SATA2_2
SATA2_1
SATA2_0
1
1
7
7
10) GSATA2_0/1 (SATA 3Gb/s Connectors, Controlled by GIGABYTE SATA2, White)
The SATA connectors conform to SATA 3Gb/s standard and are compatible with SATA 1.5Gb/s
standard. Each SATA connector supports a single SATA device. The GIGABYTE SATA2 controller
supports RAID 0, RAID 1 and JBOD. Refer to Chapter 5, "Configuring SATA Hard Drive(s)," for
instructions on configuring a RAID array.
Pin No.
Definition
1
GND
2
TXP
3
TXN
4
GND
5
RXN
6
RXP
7
GND
GSATA2_1
GSATA2_0
1
1
7
7
