Chapter 2: Hardware installation

M2_PCIEG4_64G_1: M.2 (M Key) Socket

• 

The M.2 slot supports M.2 Type 2280 SSD module. When installing M.2 SSD module,

please place the screw and hex pillar to correct position.

• 

Supports M.2 PCI Express.

• 

Supports Intel® Optane Technology.

M2_PCIEG4_64G_2: M.2 (M Key) Socket

• 

The M.2 slot supports M.2 Type 2280 SSD module. When installing M.2 SSD module,

please place the screw and hex pillar to correct position.

• 

Supports Intel® Optane Technology.

M2_PCIEG3_32G_SATA_1: M.2 (M Key) Socket

• 

The M.2 slot supports M.2 Type 2242/ 2260/ 2280/ 22110 SSD module. When installing

M.2 SSD module, please place the screw and hex pillar to correct position.

•   Supports M.2 PCI Express module up to Gen3 x4 (32Gb/s) - NVMe & AHCI SSD, and M.2

SATA III (6Gb/s) module.

• 

Supports Intel® Optane Technology.

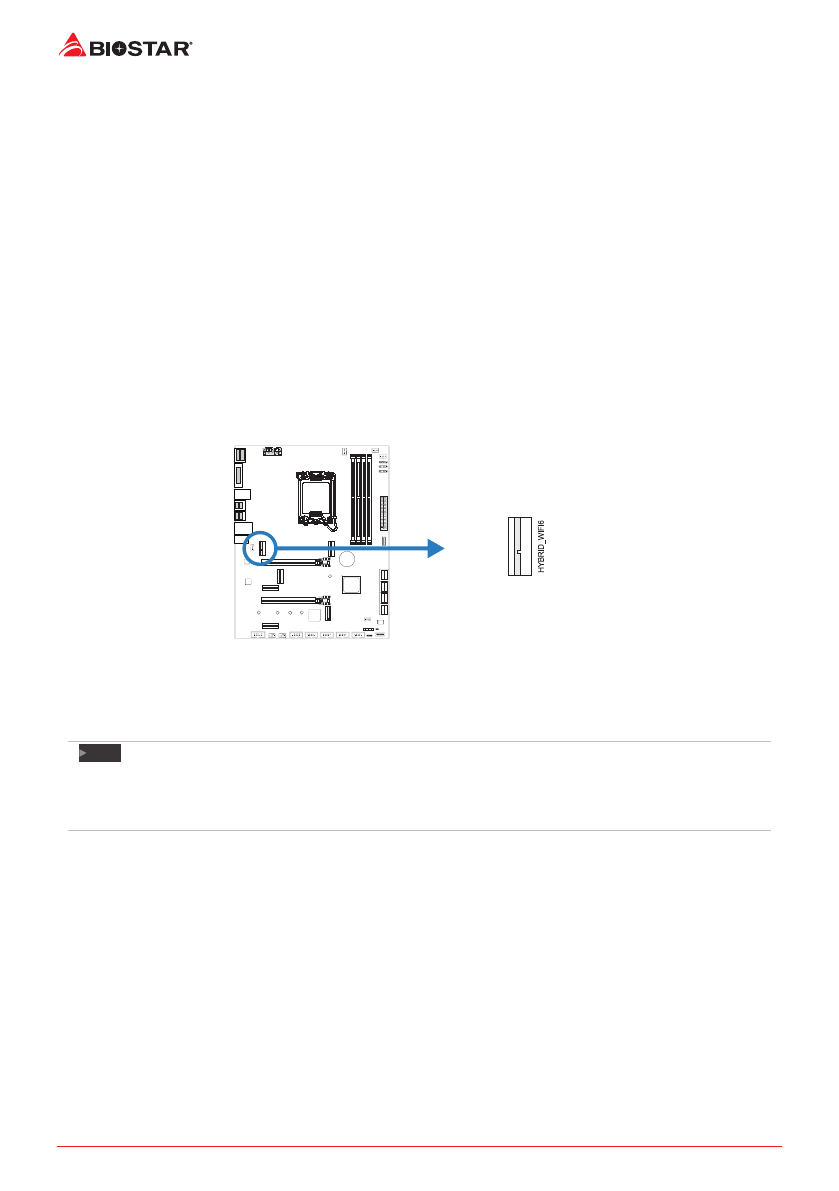

HYBRID_WIFI6: M.2 (E Key) Socket (M.2 (E key) Wi-Fi card is not provided)

•   Support M.2 socket 2230 type module.

•   Supports WiFi/ Bluetooth module and Intel® CNVi (Integrated WiFi/ BT).

Note

»

When using SATA SSD module on M.2 slot (M2_PCIEG3_32G_SATA_1), the SATA_8 connector will be

disabled.

»

When using PCIE SSD module on M.2 slot (M2_PCIEG4_64G_2), the PCIEG4X4 slot will be disabled.
