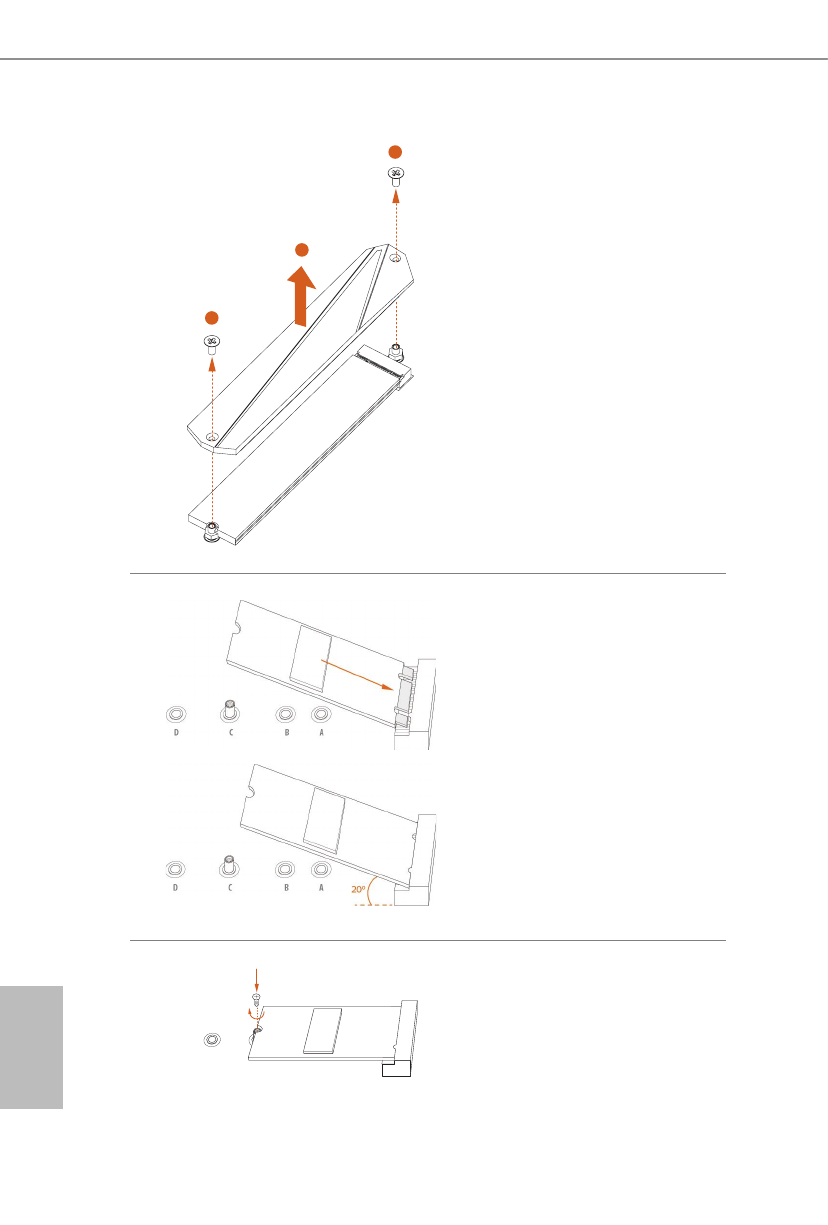

Step 3

Before installing a M.2 (NGFF) SSD
module, please loosen the screws to
remove the M.2 heatsink.

Step 4

Prepare the M.2 standoff that comes
with the package. Then hand tighten
the standoff into the desired nut
location on the motherboard. Align
and gently insert the M.2 (NGFF)
SSD module into the M.2 slot. Please
be aware that the M.2 (NGFF) SSD
module only fits in one orientation.

Step 5

Tighten the screw with a screwdriver
to secure the module into place.
Please do not overtighten the screw
as this might damage the module.

1

1

2

NUT1

NUT2

D

E
