English

1-13

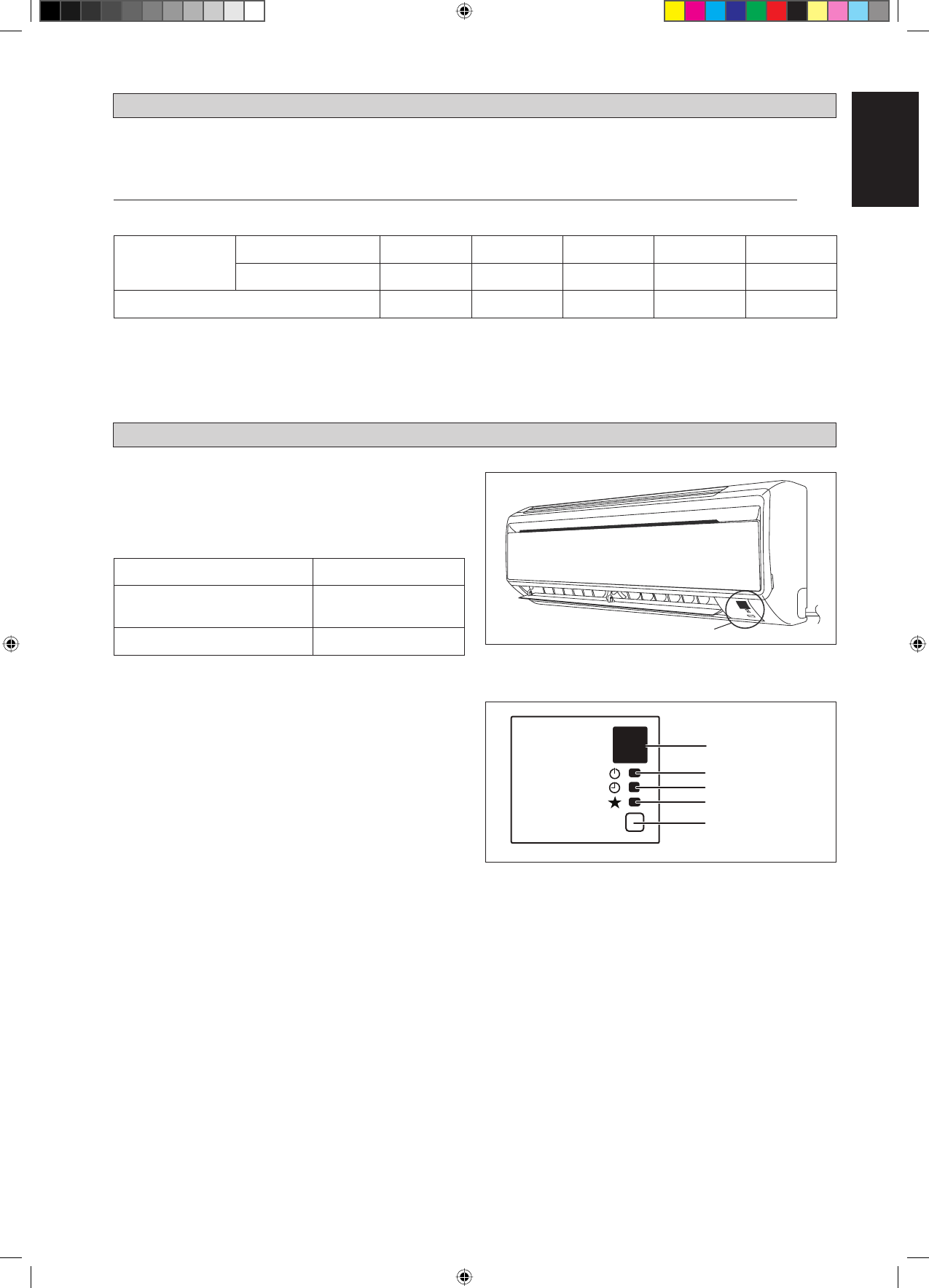

Additional refrigerant charge [g] per additional 1m length as tabulated (For R410A models)

IR Signal Receiver

When an infrared remote control operating signal has been
transmitted, the signal receiver on the indoor unit will respond
as below to con

fi

 rm acceptance of the signal transmission.

LED Indicator Lights for Cooling Unit/Heat Pump
Unit ATYN  20/25/35/50/60J

IR Receiver

Cooling Unit/Heat Pump Unit

The table shows the LED indicator lights for the air conditioner
unit under normal operation and fault conditions.
The LED indicator lights are located at the right bottom of
the air conditioner unit.
The heat pump units are equipped with an “auto” mode
sensor whereby it will provide reasonable room temperature
by switching automatically to either “cool” or “heat” mode
according to the temperature set by the user.

ON/OFF

Cool/Heat
Timer
Sleep

ON/OFF switch

The refrigerant is pre-charged in the outdoor unit. If the piping length is less than 7.5m, then additional charge after vacuuming
is not necessary. If the piping length is more than 7.5m, then use the additional charge value as indicated in the table.

IR Receiver

INDICATOR LIGHTS

ON to OFF

1 Long Beep

OFF to ON
Pump down/Cool force on

2 Short Beep

Others

1 Short Beep

Example:

ATYN35J & ARYN35C with 12m piping length, additional piping length is 4.5m. Thus,
Additional charge = 4.5[m] x 9[g/m]

= 40.5[g]

HEAT PUMP MODEL

Model

Indoor (ATYN)

20J

25J

35J

50J

60J

Outdoor (ARYN)

20C

25C

35C

50C

60C

Additional charge [g/m]

20

16

16

19

16

ADDITIONAL CHARGE
