| English
1 609 92A 2A0 | (17.11.16)
Bosch Power Tools
Prevent dust accumulation at the workplace.
Dust can
easily ignite.

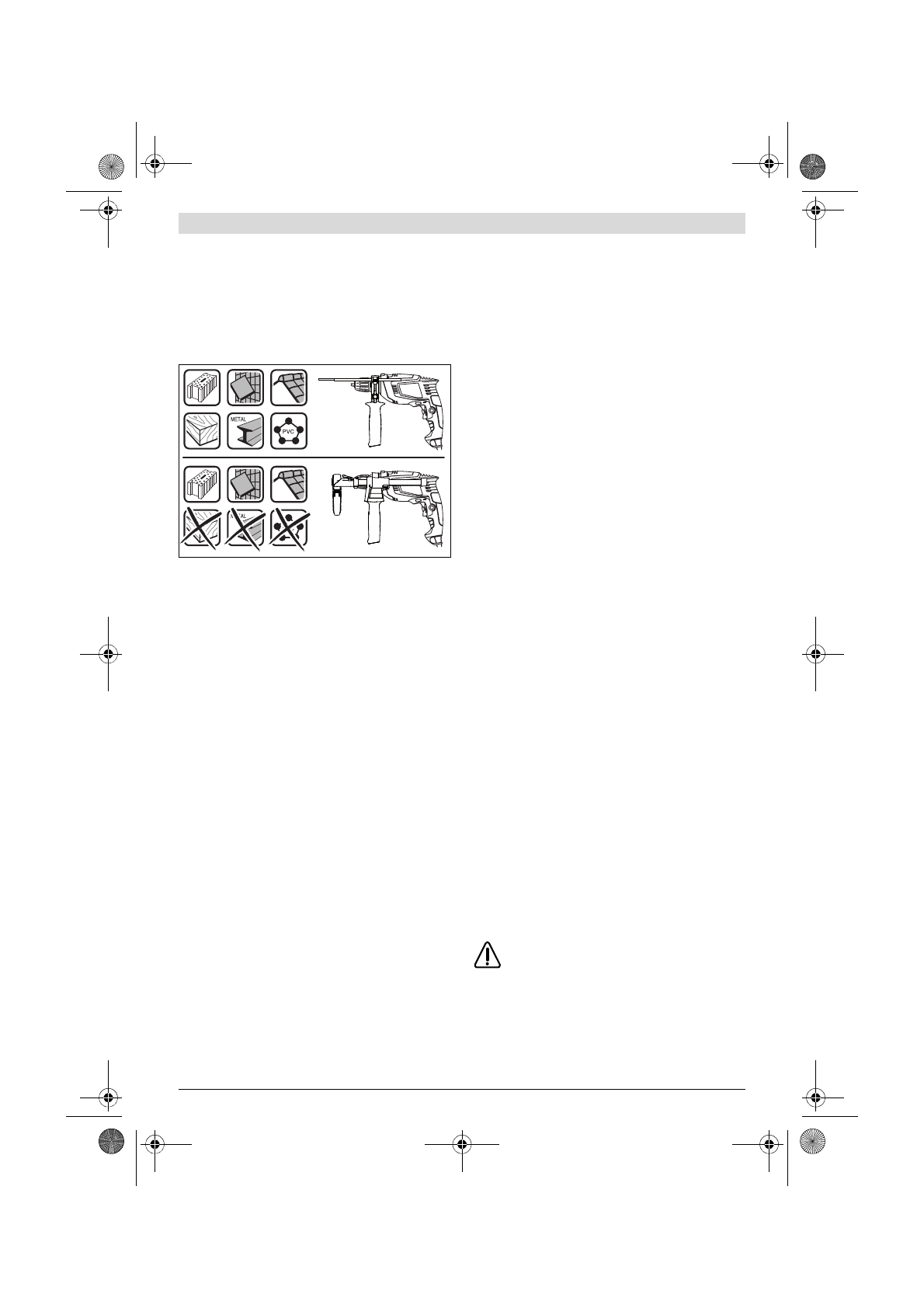

Use the dust box only when working on concrete and
stone.
Wood chips and plastic chips can easily lead to
clogging.
Warning: Danger of fire! Do not work on any metallic
materials with the dust box mounted.
Hot metal chips
can ignite parts of the dust box.
Please observe the following instructions to optimise your use
of the dust box:
– Ensure that the dust box is placed flush against the work-
piece or wall. This also makes it easier to drill at a right an-
gle.
– After reaching the desired drilling depth, pull the drill bit
out of the drill hole first and then switch off the impact drill.
– The dust protection ring
15
can wear, especially when
working with large drill-bit diameters. Replace the dust
protection ring when worn/damaged.
Changing the Tool
Keyless Chuck (UniversalImpact 700,
UniversalImpact 700 + Drill Assistant) (see figure H)
Press the spindle lock button 2 only when the machine
is at a standstill.
The drill spindle is locked by pressing the spindle lock button
2
. This makes quick and easy changing of the tool in the drill
chuck possible.
Open the keyless chuck
1
by turning in rotation direction
,
until the tool can be inserted. Insert the tool.
Firmly tighten the collar of the keyless chuck
1
by hand in ro-
tation direction
until the locking action (“click”) is no longer
heard. This automatically locks the chuck.
The lock will disengage again if you turn the sleeve in the op-
posite direction to remove the tool with the spindle locking
button pressed.
Keyless Chuck (UniversalImpact 800) (see figure I)
The drill spindle is locked when the On/Off switch
6
is not
pressed. This makes quick, convenient and easy changing of
the tool in the drill chuck possible.
Open the keyless chuck
1
by turning in rotation direction
,
until the tool can be inserted. Insert the tool.
Firmly tighten the collar of the keyless chuck
1
by hand in ro-
tation direction
until the locking action (“click”) is no longer
heard. This automatically locks the chuck.
The locking is released again to remove the tool when the col-
lar is turned in the opposite direction.
Key Type Drill Chuck (UniversalImpact 650)
(see figure J)
Press the spindle lock button 2 only when the machine
is at a standstill.
The drill spindle is locked by pressing the spindle lock button
2
. This makes quick and easy changing of the tool in the drill
chuck possible.
Wear protective gloves when changing the tool.
The
drill chuck can become very hot during longer work peri-
ods.
Open the key type drill chuck
28
by turning until the tool can
be inserted. Insert the tool.
Insert the chuck key
29
into the corresponding holes of the
key type drill chuck
28
and clamp the tool uniformly.
Screwdriver Tools
When working with screwdriver bits
25
, a universal bit holder
24
should always be used. Use only screwdriver bits that fit
the screw head.
For driving screws, always position the “Drilling/Impact Drill-
ing” selector switch
3
to the “Drilling” symbol.
Replacing the Drill Chuck
Before any work on the machine itself, pull the mains
plug.
Removing the Drill Chuck (see figure K)
Remove the auxiliary handle
9
.
Insert a steel pin with a diameter of Ø 4 mm and approx.
50 mm of length into the drill hole on the spindle neck in order
to lock the drill spindle.
Clamp the short end of a hex key
27
into the keyless chuck
1
.
Place the machine on a stable surface (e. g. a workbench).
Hold the machine firmly and loosen the keyless chuck
1
by
turning the hex key
27
in rotation direction
. Loosen a tight-
seated keyless chuck by giving the long end of the hex key
27
a light blow. Remove the hex key from the keyless chuck and
completely unscrew the keyless chuck.
Mounting the Drill Chuck (see figure L)
The keyless chuck is mounted in reverse order.
Remove the steel pin from the drill hole on the spindle
neck after mounting is completed.
The drill chuck must be tightened with a tightening
torque of approx. 30 – 35 Nm.
OBJ_BUCH-2862-001.book Page 20 Thursday, November 17, 2016 2:40 PM
