3

 En

Caution:

 Make sure the power cables for the subwoofer and your other AV components are disconnected from the

AC wall outlets before making any connections.

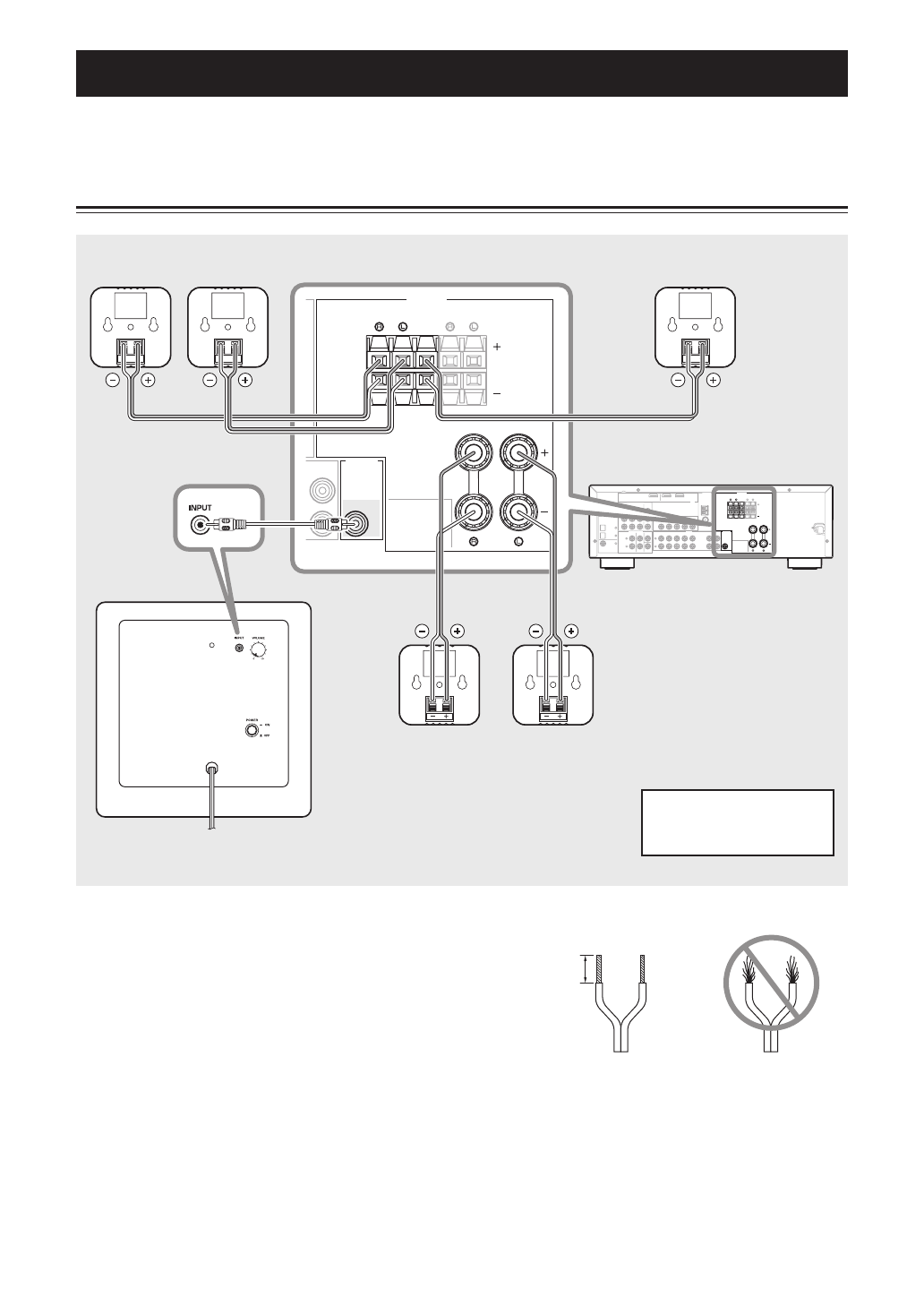

Connection diagram

■

Preparing the speaker cables

Once you’ve positioned the speakers, you’ll need to cut
the 25-meter (82 ft.) speaker cable to make five cables
for connecting the two front speakers, center speaker,
and the two surround speakers.

1

Cut the included speaker cable to suitable
lengths for the front, center, and surround
speakers. You need five cables.

2

Remove about 10 mm (3/8") of insulation from
the end of each speaker wire.

3

Twist the bare wires tightly.

Notes

• Make the speaker cables as short as possible. Do not

bundle or roll up excess cable.

• Twist  the  bare  wires tightly so the individual strands

are not splayed.

• Be  careful not to injure yourself while preparing the

speaker cables.

Connecting the speakers

DOCK

DIGITAL INPUT

COMPONENT VIDEO

VIDEO

AUDIO

MULTI CH INPUT

HDMI

ANTENNA

SPEAKERS

DVD

OPTICAL

DVD

CENTER

FRONT B

FRONT A

DVR

SURROUND

FRONT

CENTER

SUBWOOFER

DTV/CBL

DVD

DVR

FM

AM

GND

IN

OUT

DTV/CBL

DVD

DVR

CD

OUTPUT

SUB

WOOFR

IN

OUT

MD/

CD-R

IN

(PLAY)

OUT

(REC)

DTV/CBL

DTV/CBL

MONITOR

OUT

MONITOR

OUT

CD

PR

PB

Y

DVD

COAXIAL

DTV/
CBL

OUT

UNBAL.

SPEAKERS

CENTER

FRONT B

FRONT A

D

OUTPUT

SUB

WOOFR

D/

D-R

OUT

(REC)

SURROUND

To AC wall outlet

Center speaker

Subwoofer

Amplifier

Front speakers

Right

Left

Note: The exact layout of
the speaker terminals
depends on your amplifier.

Surround speakers

Right

Left

Good

No Good

10 mm (3/8")
