1

 En

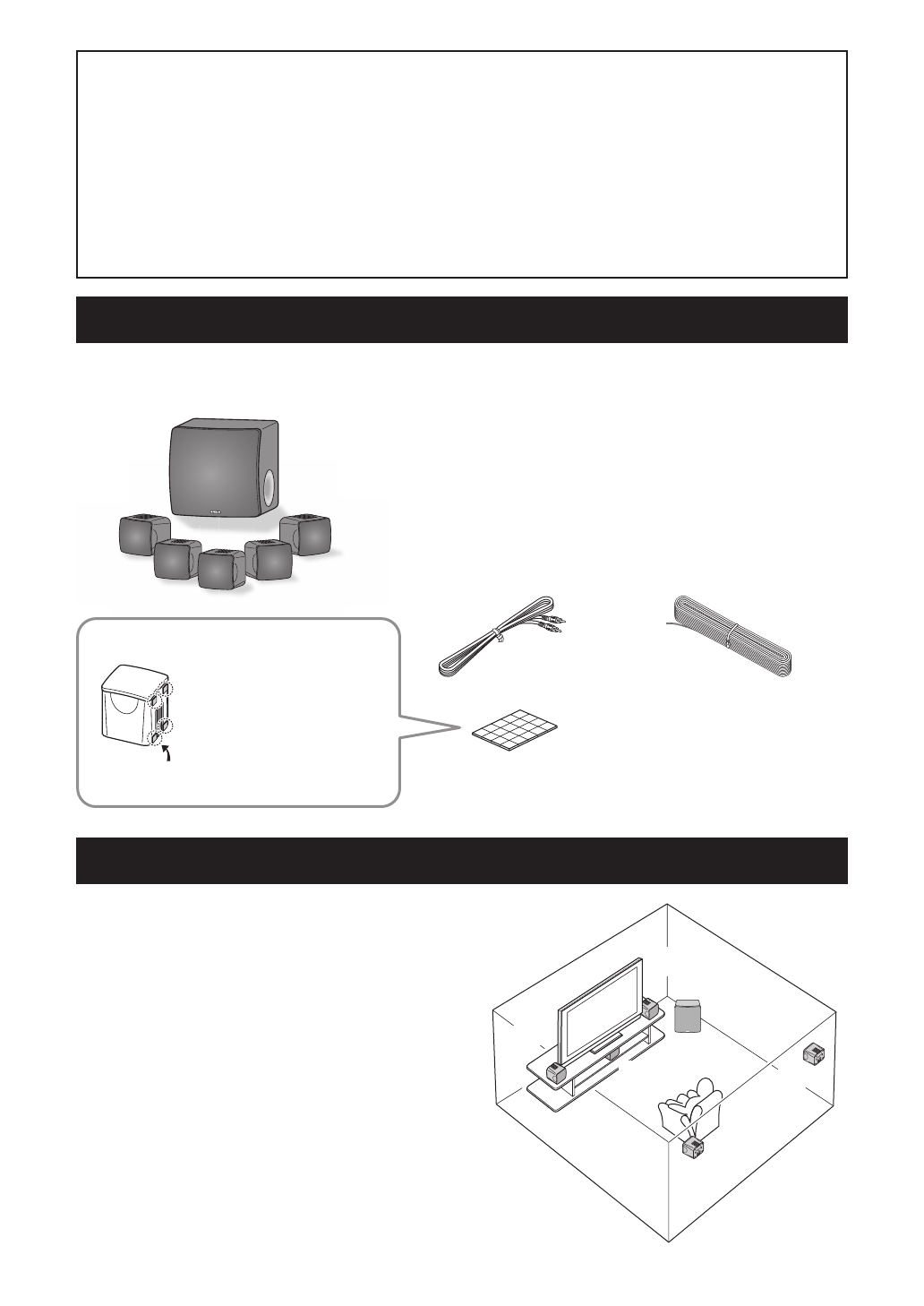

Thank you for choosing the Yamaha NS-P280 5.1CH Speaker Package.
Make sure the package contains the following items.

Before you connect the speakers, place each speaker in
its respective location. Speaker positioning is very
important as it affects the overall sound quality of the
system. Place the speakers in locations that will
optimize the sound quality at your listening position.
Refer to the illustration.
The position of the subwoofer is not as critical as the
position of the other speakers because sub-bass
sounds are not very directional. Refer to “Installing the
subwoofer” on page 2 for more information.

Note

• Placing the speakers too close to a CRT-type TV

may impair the picture color or cause a buzzing
noise. In this case, move the speakers at least 20 cm
(8") away from the TV. This is not an issue with LCD
and plasma TVs.

•

Contents

Package contents ................................................ 1
Installing the speakers ....................................... 1

Installing the front, center, and surround

speakers ..........................................................2

Installing the subwoofer .....................................2
Wall-mounting the speakers ..............................2

Connecting the speakers................................... 3

Connection diagram ...........................................3

Connecting the power cables............................. 4

Using the Subwoofer ......................................... 4

Setting the subwoofer volume ........................... 4
Frequency characteristics................................... 5

Troubleshooting ................................................. 5
Specifications ...................................................... 6

Package contents

Speaker cable, 25 m (82 ft.) x1

( To be cut into 5 lengths for the
front, center, and surround
speakers. Take care to prevent
injury when preparing the cables.)

Subwoofer cable,
5 m (16 ft.) x1

Non-skid pads (20 pcs.) x1

(For the front, center, and
surround speakers.)

■

Subwoofer (NS-SW280 x1)

The Subwoofer features a built-in power amplifier and utilizes
Advanced Yamaha Active Servo Technology to provide high-quality
sub-bass sound that adds real “punch” to your home theater.

■

Front, center, and surround speakers (NS-B280 x5)

The front, center, and surround speakers are full-range
acoustic-suspension speakers.

Non-skid pads:

When

placing the speakers on a flat
surface, affix the included
non-skid pads to the corners
of the speaker undersides, as
shown. The pads will prevent
the speakers from moving
around.

■

 Front, center, and surround speakers

Non-skid pad

Installing the speakers

Center

Front
right

Subwoofer

TV

Surround
left

Front
left

Surround
right
