6

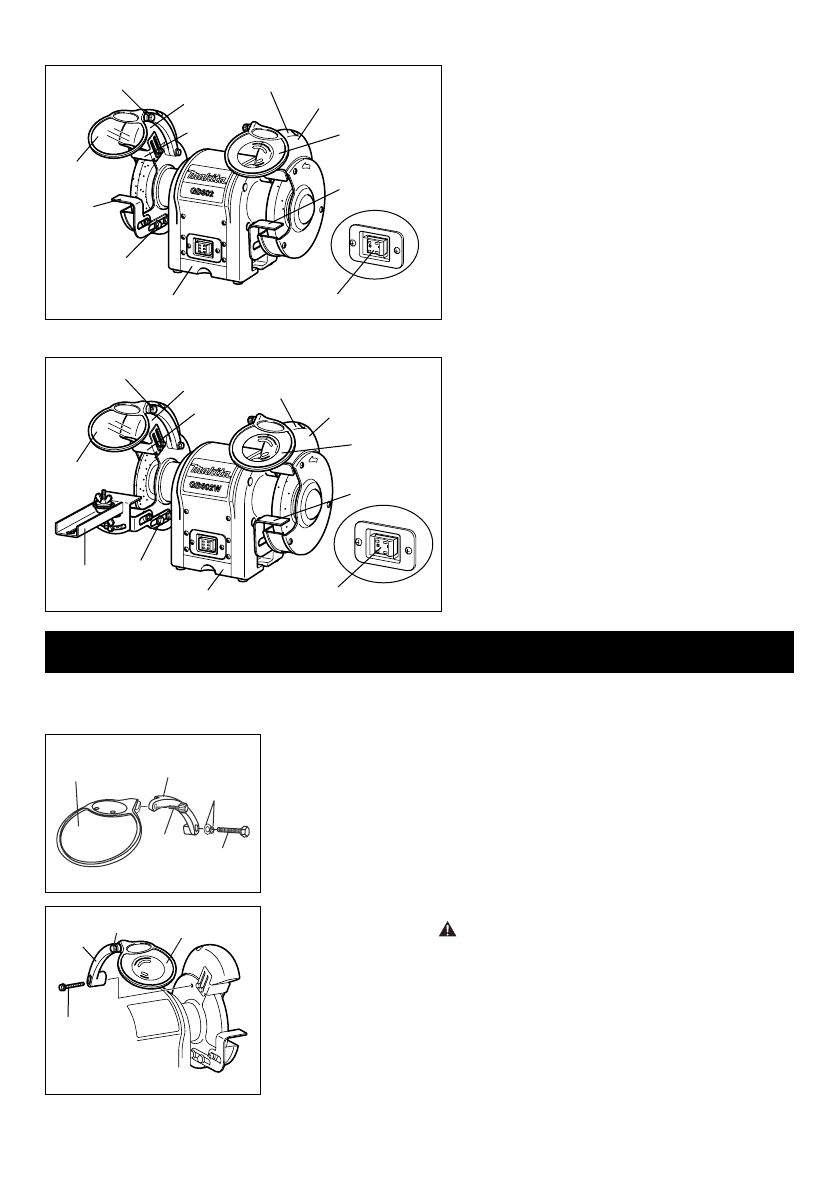

GB602/GB801 (Fig. 3)

1. Adjustable knob
2. Safety eye shield
3. Work rest (left)
4. Adjustment bolts
5. Coolant tray
6. Auto-ON (work light)
7. Spark deflector (left)
8. Spark deflector (right)
9. Lamp cover
10. Safety eye shield with magnifying glass
11. Work rest (right)
12. Power switch

GB602W (Fig. 4)

1. Adjustable knob
2. Safety eye shield
3. Saw blade sharpening kit
4. Adjustment bolts
5. Coolant tray
6. Auto-ON (work light)
7. Spark deflector (left)
8. Spark deflector (right)
9. Lamp cover
10. Safety eye shield with magnifying glass
11. Work rest (right)
12. Power switch

MOUNTING SAFETY EYE SHIELDS

See Fig. 5-6.

1. Safety eye shield
2. Eye shield

mounting arm

3. Adjustable knob
4. Washer
5. Hex bolt

1. Eye shield

mounting arm

2. Hex bolt
3. Adjustable knob
4. Safety eye shield

Mount the left and right eye shield-mounting arm To the
inside of the wheel guards using the clamp Brackets, hex
bolts (M6 X 30 mm), and washers (6 mm).
Use the illustration as a guide to determine which eye
shield mounting arm is mounted on the left and which eye
shield mounting arm is mounted on the right of the
grinder.
Once the eye shield mounting arms are firmly in place,
slide the shield bracket onto the eye shield-mounting arm.
Tighten the adjustable knob leaving it loose enough to
allow the safety eye shield to be raised and lowered
easily.

 WARNING:

To prevent personal injury, never operate the bench
grinder unless the safety eye shields and spark deflectors
are properly installed and in place.

1

2

3

6

7

8

9

10

11

4

5

12

1

2

3

6

7

8

9

10

11

4

5

12

ASSEMBLY

1

2

3

4

5

Fig. 5

1

2

3

4

Fig. 6
