DESCRIPTION OF THE WATER HEATER

(see figure 7)

F)

 LED

A)

 Cap

M)

 Adjustment knob

B)

 Water intake pipe

C)

 Water outlet pipe

TECHNICAL CHARACTERISTICS

For the technical specifications, refer to the nameplate (the nameplate is located next to the water intake/outlet pipes).

The power consumption data in the table and the other information given in the Product Data Sheet (Enclosure A to
this manual) are defined in relation to EU Directives 812/2013 and 814/2013.
The products without the label and the data sheet for water heaters and solar devices, stipulated in regulation 812/2013,
are not intended to be used in such assemblies.
Products equipped with a regulator knob have the thermostat positioned in the <ready to use> setting indicated in
the Data Sheet (Enclosure A), according to which the relevant energy class has been declared by the manufacturer.

This appliance is conforming with the international electrical safety standards IEC 60335-1 and IEC 60335-2-
21. The CE marking of the appliances attests its conformity to the following EC Directives, of which it satisfies
the essential requisites:
- LVD Low Voltage Directive: EN 60335-1, EN 60335-2-21, EN 60529, EN 62233, EN 50106.
- EMC Electro-Magnetic Compatibility: EN 55014-1, EN 55014-2, EN 61000-3-2, EN 61000-3-3.
- RoHS2 Risk of Hazardous Substances: EN 50581.
- ErP Energy related Products: EN 50440.

INSTALLING NORMS (for the installer)

EN

The appliance must be installed and commissioned by a qualified technician in accordance with established
regulations and local health and safety regulations.

We recommend installing the appliance as close as possible to the delivery points to minimise heat loss along the
pipes.
Local regulations may provide for restrictions on installation in bathrooms; observe any regulatory minimum distances.
The range of water heaters includes models set up to be assembled above or below the point of use (sink, basin or
shower). The models intended to be assembled under the point of use are called "undersink".
To facilitate maintenance, make sure there is a clearance of at least 50 cm inside the enclosure for access to the
electrical equipment. Fix the supplied bracket to the wall with screws and dowels of adequate size for the type of wall.
Hook the water heater to the bracket and pull down to make sure it is secured.

!

CAUTION Observe all general warnings and safety standards listed at the
beginning of this text in full; all such instructions are obligatory.

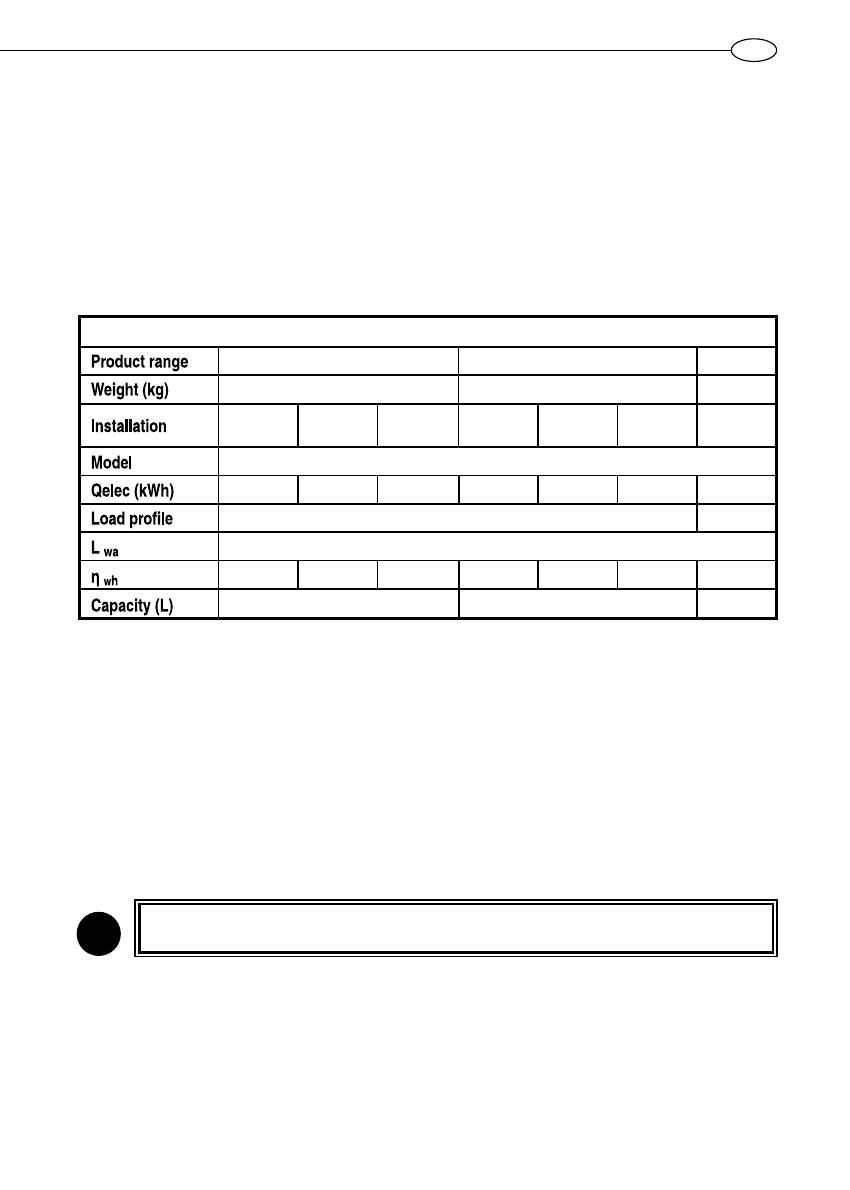

Product information

10

6,6

15

7,4

30

12,8

Refer to the nameplate

Oversink

2,662

XXS

S

15 dB

33,2%

10

15

30

3,026

29,9%

2,675

33,0%

Oversink

2,489

35,0%

3,080

29,4%

Undersink

with regulation

2,691

32,9%

Oversink

2,481

35,1%

Undersink

without regulation

Undersink

with regulation

Undersink

without regulation
