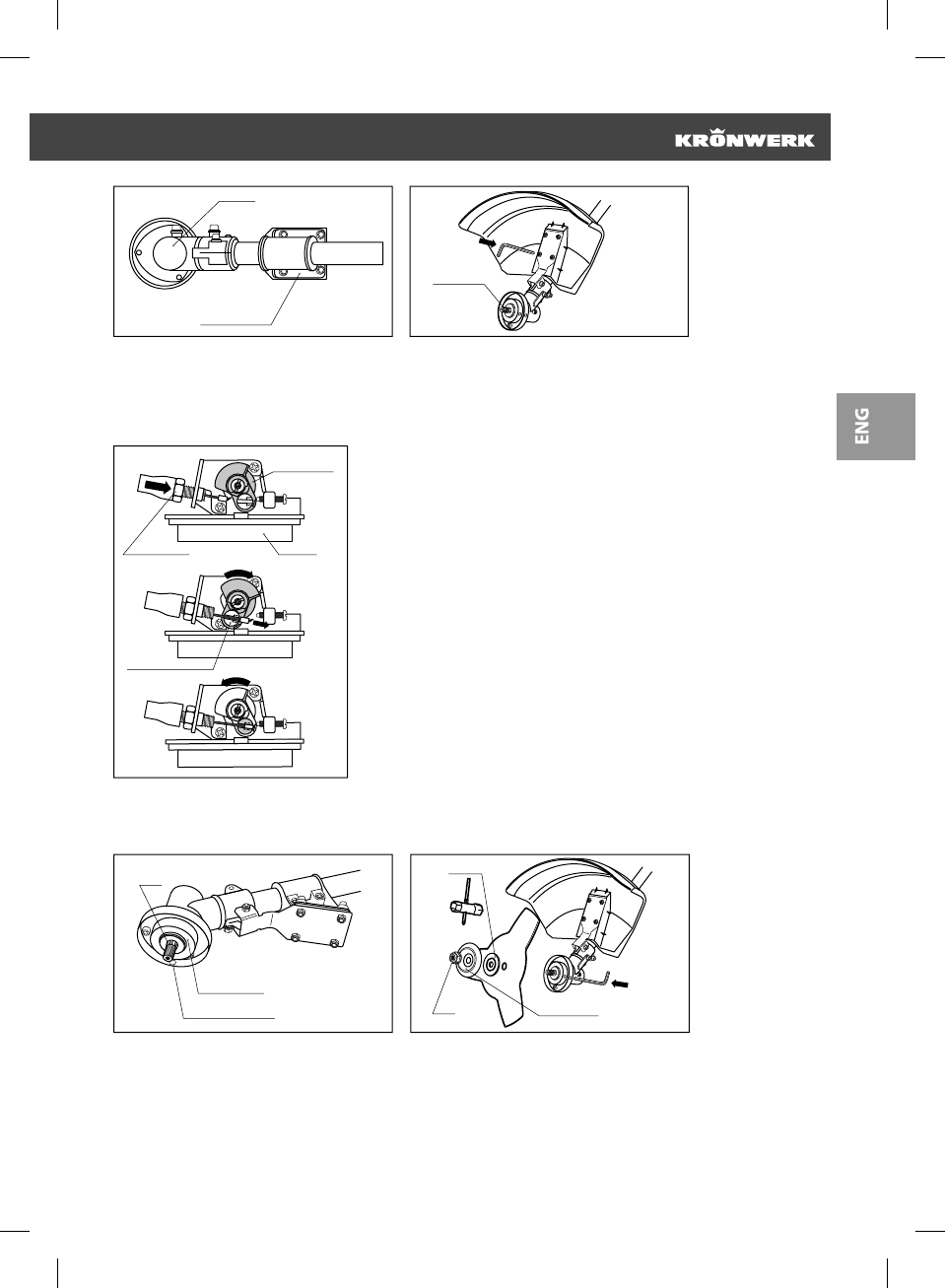

GASOLINE TRIMMER

gearbox

mounting plate

fig. 4

rotary head

fig. 5

3. Protective cover installation

• Align the holes on the protective cover with the holes on the mounting plate (fi g. 4).

• Secure the protective cover onto the mounting plate with the bolts with washers using a hex wrench (fi g. 5).

air filter

retaining nut

lock pivot

throttle valve

fig. 6

4. Throttle valve cable connection

• Remove the air fi lter cover.

• Secure the cable to the engine and place the end of the cable in the
throttle valve connector (Fig 6).

• Connect the red cable of the control handle to the red cable of the
engine, and the black cable to the black cable of the engine.

• Install the air fi lter cover.

5. Fitting of the shoulder strap

• Secure the shoulder strap carabiner to the strap fastening ring.

• To ensure better balance of the appliance, adjust the position of the
strap fastening ring on the pipe of the appliance by loosening the ring
retaining bolt.

• After the adjustment, fi x the ring with the fastening bolt.

• Adjust the length of the strap if necessary to ensure convenience.

6. Cutting blade installation

hole of the gear cup

flange washer

shaft

fig. 7

washer

mounting cup

nut

fig. 8

• Align the hole of the fl ange washer with the hole of the gear cup (fi g. 7).

• Insert the metal locking rod into the hole of the gear cup and into the hole of the fl ange washer.

• Unscrew the fastening nut from the trimmer shaft clockwise.

• Remove the cup from the shaft, leaving the fl ange washer.

• Place the cutting blade on the fl ange washer.
