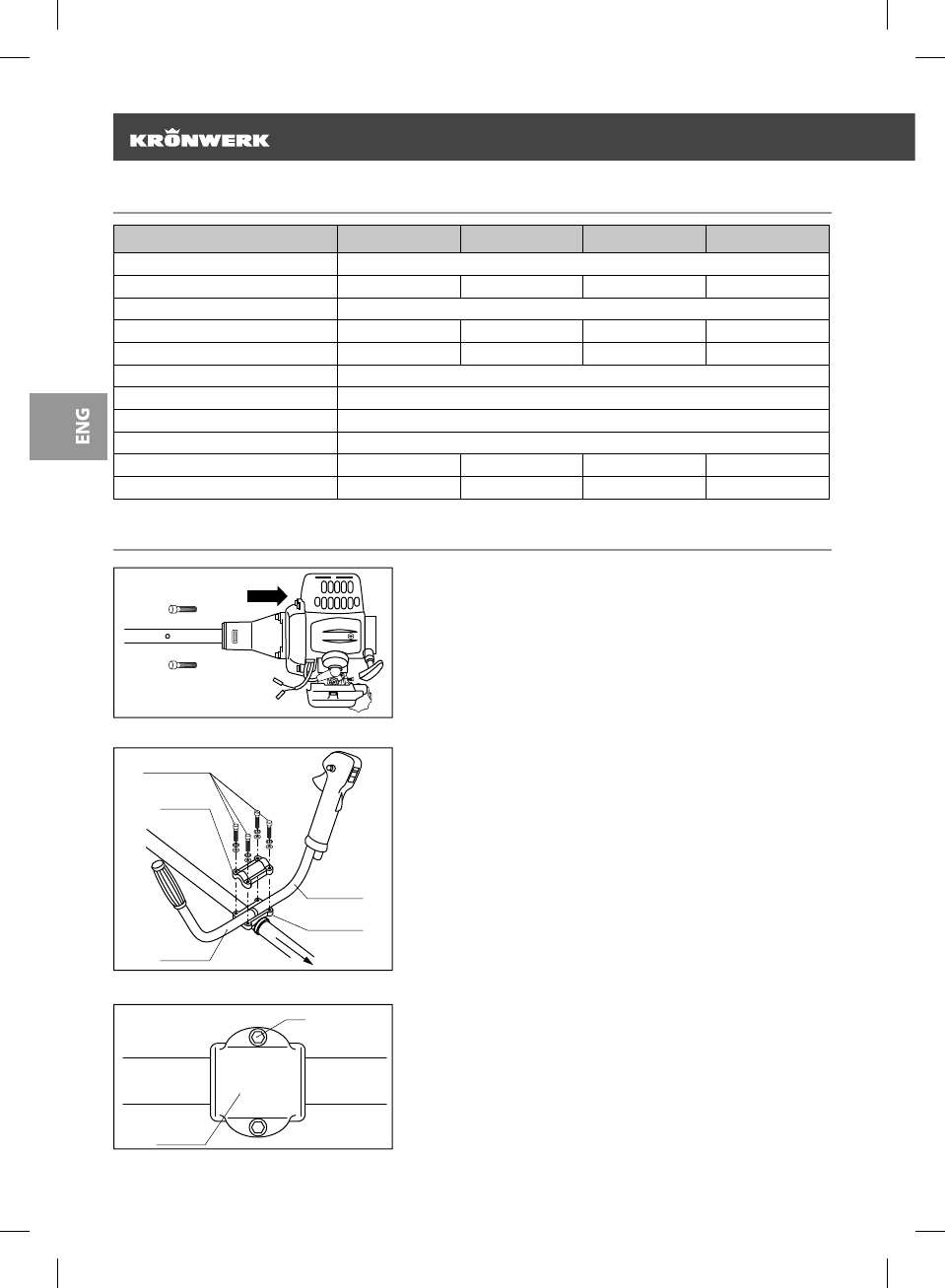

KRONWERK KC-2500 96212 - Инструкция по эксплуатации - Страница 6

GASOLINE TRIMMER

6

TECHNICAL SPECIFICATION

Item

96210 (KC-1300)

96211 (KC-1800)

96212 (KC-2500)

96213 (KC-3000)

Engine type

2-stroke, air-cooled

Engine power, horsepower

1,3

1,8

2,5

3,0

Drive

manual

Engine volume, cm

3

25,4

32,6

42,7

51,7

Fuel tank capacity, ml

450

1000

1200

1200

Trimmer coil

Double thread

Cutting blade

Triple blade

Cutting width: nylon thread, mm

420

                              cutting blade, mm

252

Rotation speed, rpm

7000

7500

7500

7500

Trimmer weight, kg

7,6

8,2

8,86

9

INSTALLATION

fig. 1

1. Pipe and engine connection

Align the pipe with the engine so that the trimmer spindle is
aligned with the engine fuel tank.

Install the pipe fl ange to the engine and secure it with 4 screws
(fi g.1).

upper part

left handle

right handle

engine

middle part

fastening bolts

fig. 2

lower part

bolt

fig. 3

2. Handle installation

A fastener is used to attach the handle to the pipe. It consists of
an upper part, fastening bolts, lower and middle anchorages
located on the pipe (fi g. 2).

To adjust the position of the handle and achieve optimum
balance of the gasoline trimmer during operation, it is necessary
to loosen the bolts at the bottom of the fastener (fi g. 3), move
the handle to the required distance, and tighten them again.

To insert the handles:

• Unscrew the four bolts at the top of the handle fastener.

• Install the right handle (supplied with the gas throttle lever)
and left handle in the fastener and secure the bolts.
