GASOLINE TRIMMER

4

DESIGNATION

The gasoline trimmer is used for cutting grass and small shrubs.

Max. diameter of the branches:

when working with a nylon cutting head – 0.7 cm;

when working with a blade – 1.2 cm.

Using the trimmer for other purposes is a violation of the instructions for use. The Trimmer is designed for
operation under the following conditions:

- 5 to 35°C ambient temperature;

- 80% relative humidity at 20 ° C.

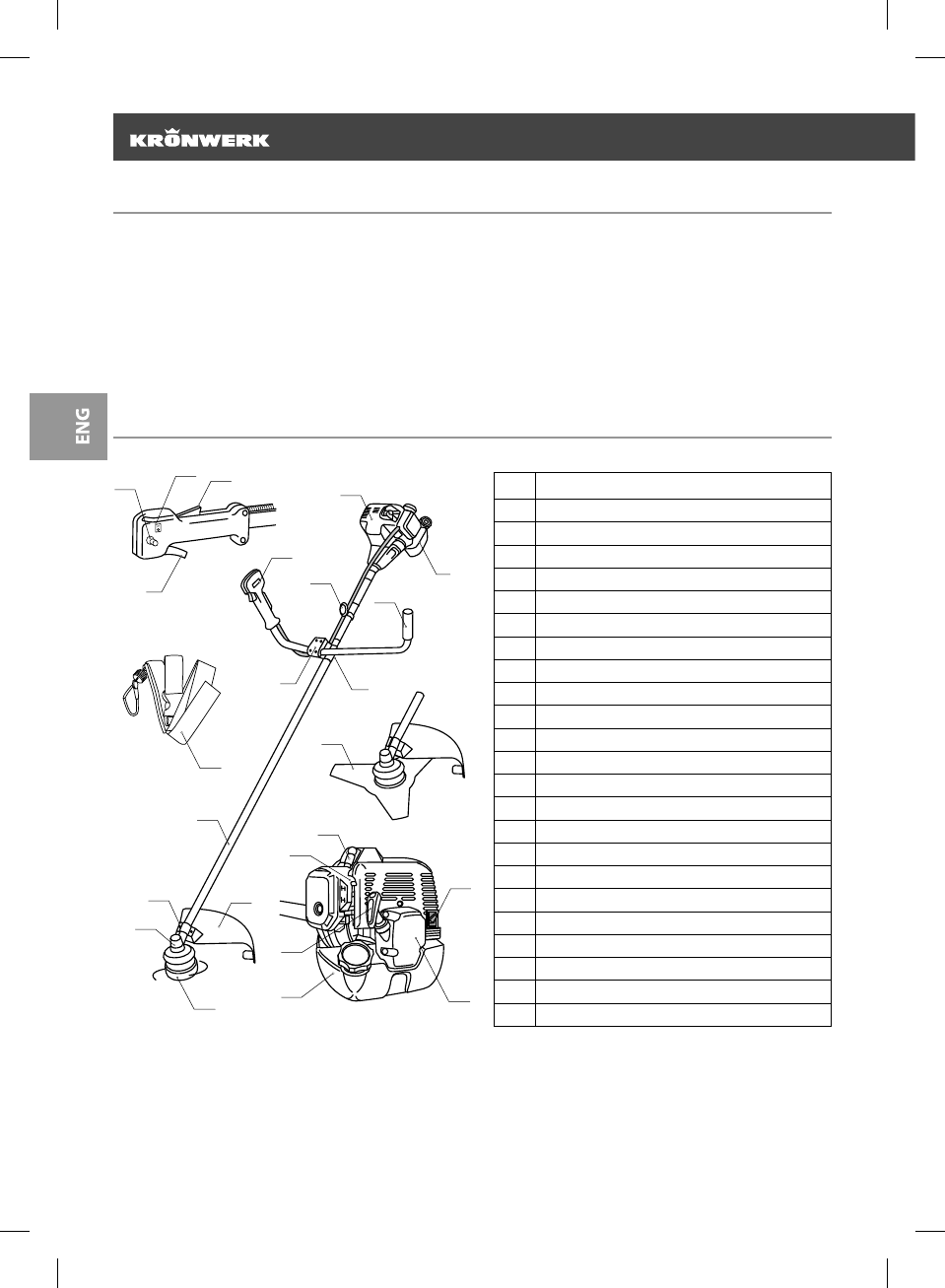

COMPONENTS

14

15

16

21

10

12

17

18

19

24

20

7

8

13

9

11

22

6

2

4

3

1

5

23

1

Starter  handle

2

Starter

3

Throttle valve control lever

4

Plug  cables

5

Fuel  tank

6

Exhaust  pipe

7

Left  handle

8

Engine casing

9

Fuel  tank

10

Right handle

11

Lower part for attaching the handle

12

Shoulder strap ring

13

Upper part for attaching the handle

14

Switch (on/off  )

15

Gas throttle trigger

16

Gas throttle lock

17

Gas throttle lever

18

Pipe and engine connection

19

Cutting head / blade

20

Lower gearbox

21

Protective cover

22

Coil with nylon thread

23

Strap

24

Mounting plate for the protective cover
