BURN-
ER

RE-
DUC-
ED
POW-
ER

NOR-
MAL
POWER

Type

of gas

Pres-

sure

Injector

diameter

Usage

(mini-

mum

flame)

Usge:

(maxi-

mum

flame)

kW

kW

mbar

mm

g/h

Triple-
crown
burner

1,80

4,00

Butane

G30

30

1,01

130,88

290,8

5

1,60

3,50

Pro-

pane

G31

30

1,01

114,26

249,9

5

13.3

Gas Connection

Choose fixed connections or use a flexible
pipe in stainless steel in compliance with
the regulation in force. If you use flexible
metallic pipes, be careful they do not
come in touch with mobile parts or they
are not squeezed.

13.4

Flexible nonmetal pipes

connection

If it is possible to easily and fully control
the gas connection, you can use a flexible
pipe. You must tightly attach the flexible
pipe by clamps.
To install, use a pipe holder. Make sure
that you tightly attach the pipe holder to
the gasket, and then continue with the
gas connection. The flexible pipe is cor-
rect when:
– It cannot become hotter than room

temperature or higher than 30 °C.

– It is no longer than 1500 mm.
– It does not compress.
– It is not subject to traction or torsion.
– It does not make contact with sharp

edges or corners.

– You can easily examine it in order to

check its condition.

To preserve the flexible pipe, you must
regularly check if:
– It does not show cracks, cuts or burn

marks on the two ends and its length.

– The material is correctly elastic and not

hardened.

– The fastening clamps are not rusted.
– It is not expired.
If you can see one or more defects, do
not repair the pipe, but replace it.

After installation is complete, use
a soapy solution and never a
flame to see if you sealed all the
pipe fittings perfectly.

The gas supply ramp is on the rear side of
the control panel.

WARNING!
Before gas connection discon-
nect the mains plug from the
mains socket or switch off the
fuse in the fuse box. Close the
primary valve of the gas sup-
ply.

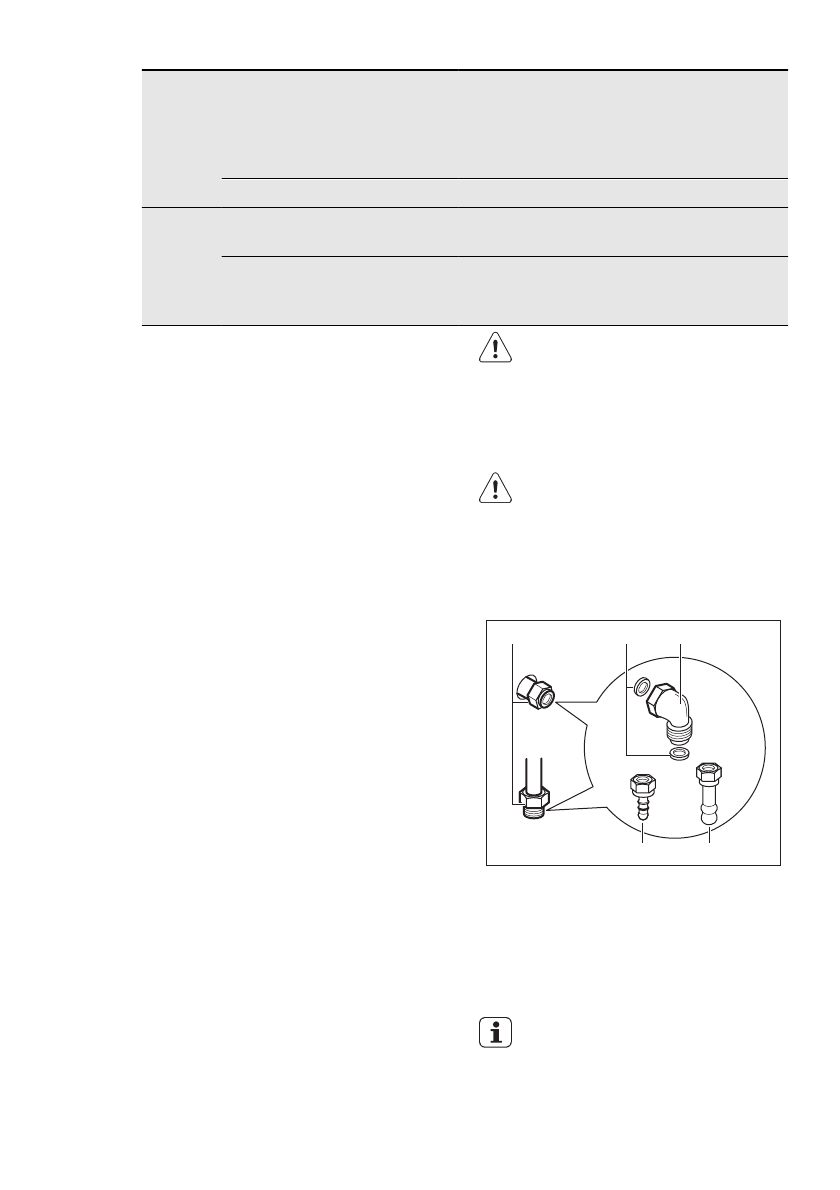

A

B

C

D

E

A)

Gas connection point (only one point
is applicable for appliance)

B)

Gasket

C)

Adjustable connection

D)

Natural Gas pipe holder

E)

LPG pipe holder

The appliance is set to default
gas, to change the setting choose
pipe holder from the list. Always
use the gasket sealing
