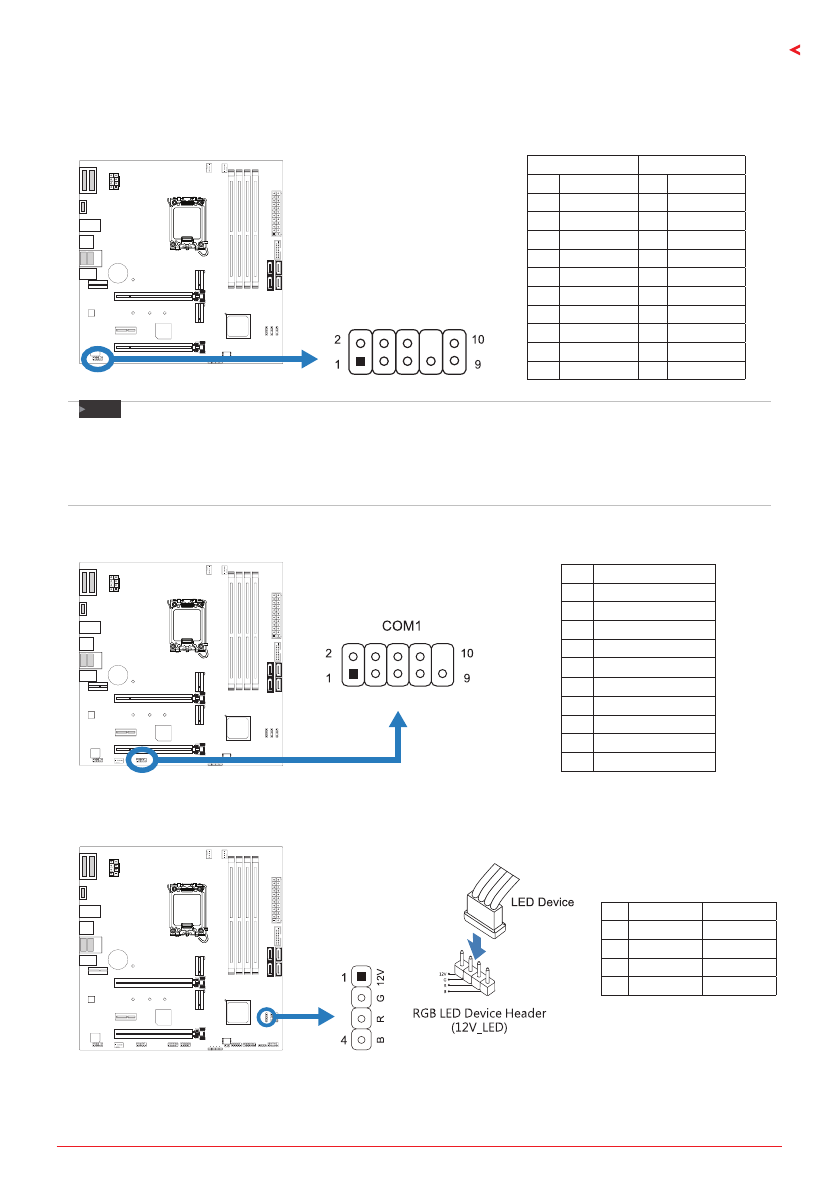

Chapter 2: Hardware installation

 | 19

B660MX-E PRO

I

 B660MH-E PRO

F_AUDIO: Front Panel Audio Header

This header allows user to connect the chassis-mount front panel audio I/O which supports HD

and AC’97 audio standards.

HD Audio

AC’97

Pin Assignment

Pin Assignment

1

Mic Left in

1

Mic In

2

Ground

2

Ground

3

Mic Right in 3

Mic Power

4

GPIO

4

Audio Power

5

Right line in

5

RT Line Out

6

Jack Sense

6

RT Line Out

7

Front Sense

7

Reserved

8

Key

8

Key

9

Left line in

9

LFT Line Out

10

Jack Sense

10 LFT Line Out

Note

»

When using the front HD audio jack and plug in the headset, the rear sound will be automatically Disabled.

»

   It is recommended that you connect a high-definition front panel audio module to this connector to

avail of the motherboard’s high definition audio capability.

»

   Please try to disable the “Front Panel Jack Detection” if you want to use an AC’97 front audio output

cable. The function can be found via O.S. Audio Utility.

COM1: Serial Port Header

The motherboard has a serial port header for connecting RS-232 Port.

Pin Assignment
1

Carrier detect

2

Received data

3

Transmitted data

4

Data terminal ready

5

Signal ground

6

Data set ready

7

Request to send

8

Clear to send

9

Ring indicator

10

Key

12V_LED: RGB LED Device (5050 SMD) Header

This header providers 12V power and RGB control pins for RGB LED Device (5050 SMD).

Pin Cable Color Assignment
1

12V (Black) VCC12

2

G (Green)

LED_GREEN

3

R (Red)

LED_RED

4

B (Blue)

LED_BLUE
