English

16

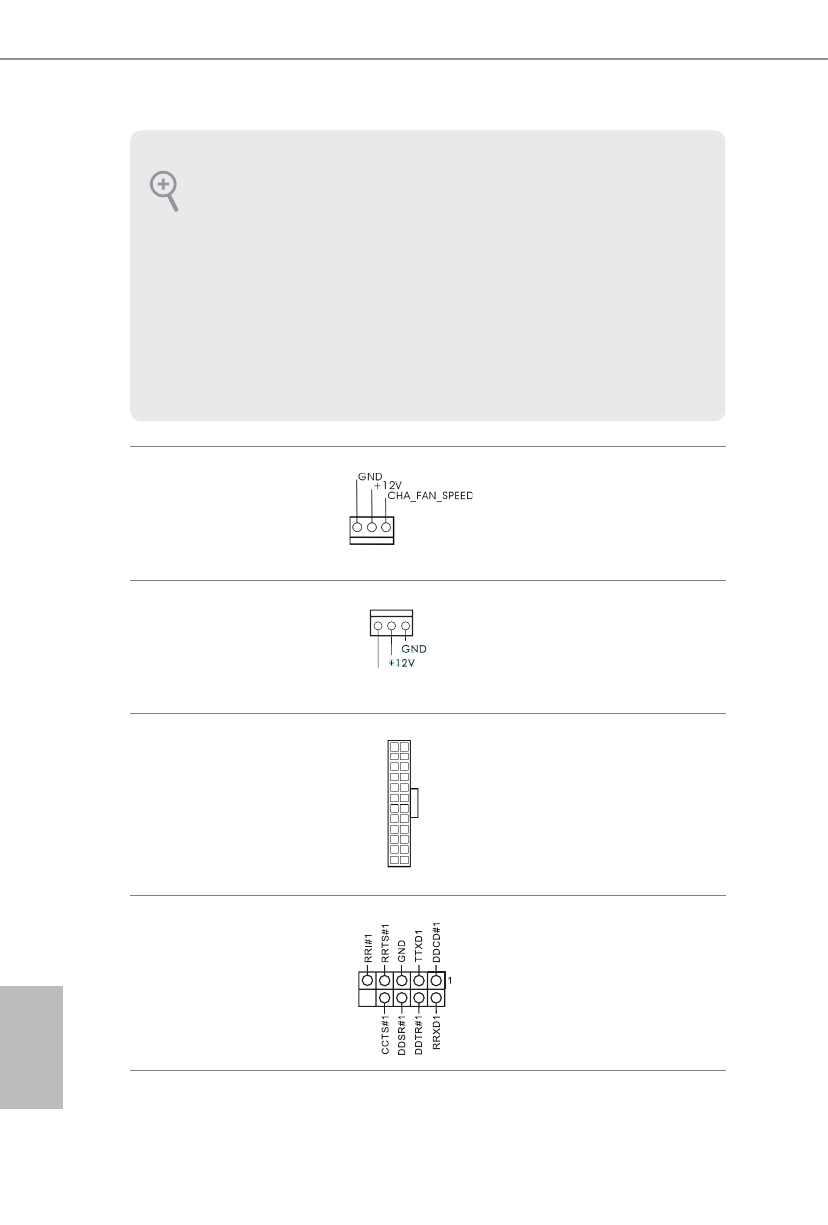

Chassis Fan Connector
(3-pin CHA_FAN1)
(see p.1, No. 9)

Please connect fan cable
to the fan connector and
match the black wire to
the ground pin.

CPU Fan Connector
(3-pin CPU_FAN1)
(see p.1, No. 2)

Please connect the CPU
fan cable to the connector
and match the black wire
to the ground pin.

ATX Power Connector
(24-pin ATXPWR1)
(see p.1, No. 4)

This motherboard pro-
vides a 24-pin ATX power
connector. To use a 20-pin
ATX power supply, please
plug it along Pin 1 and Pin
13.

Serial Port Headers
(9-pin COM1)
(see p.1, No. 15)
(9-pin COM2)
(see p.1, No. 16)

This header supports a
serial port module.

12

 1

24

13

1.  High Definition Audio supports Jack Sensing, but the panel wire on the chassis must

support HDA to function correctly. Please follow the instructions in our manual and
chassis manual to install your system.

2.  If you use an AC’97 audio panel, please install it to the front panel audio header by

the steps below:
A. Connect Mic_IN (MIC) to MIC2_L.
B. Connect Audio_R (RIN) to OUT2_R and Audio_L (LIN) to OUT2_L.
C. Connect Ground (GND) to Ground (GND).
D. MIC_RET and OUT_RET are for the HD audio panel only. You don’t need to
connect them for the AC’97 audio panel.
E. To activate the front mic, go to the “FrontMic” Tab in the Realtek Control panel
and adjust “Recording Volume”.

C P U _ FA N _ S P E E D
