18

GB

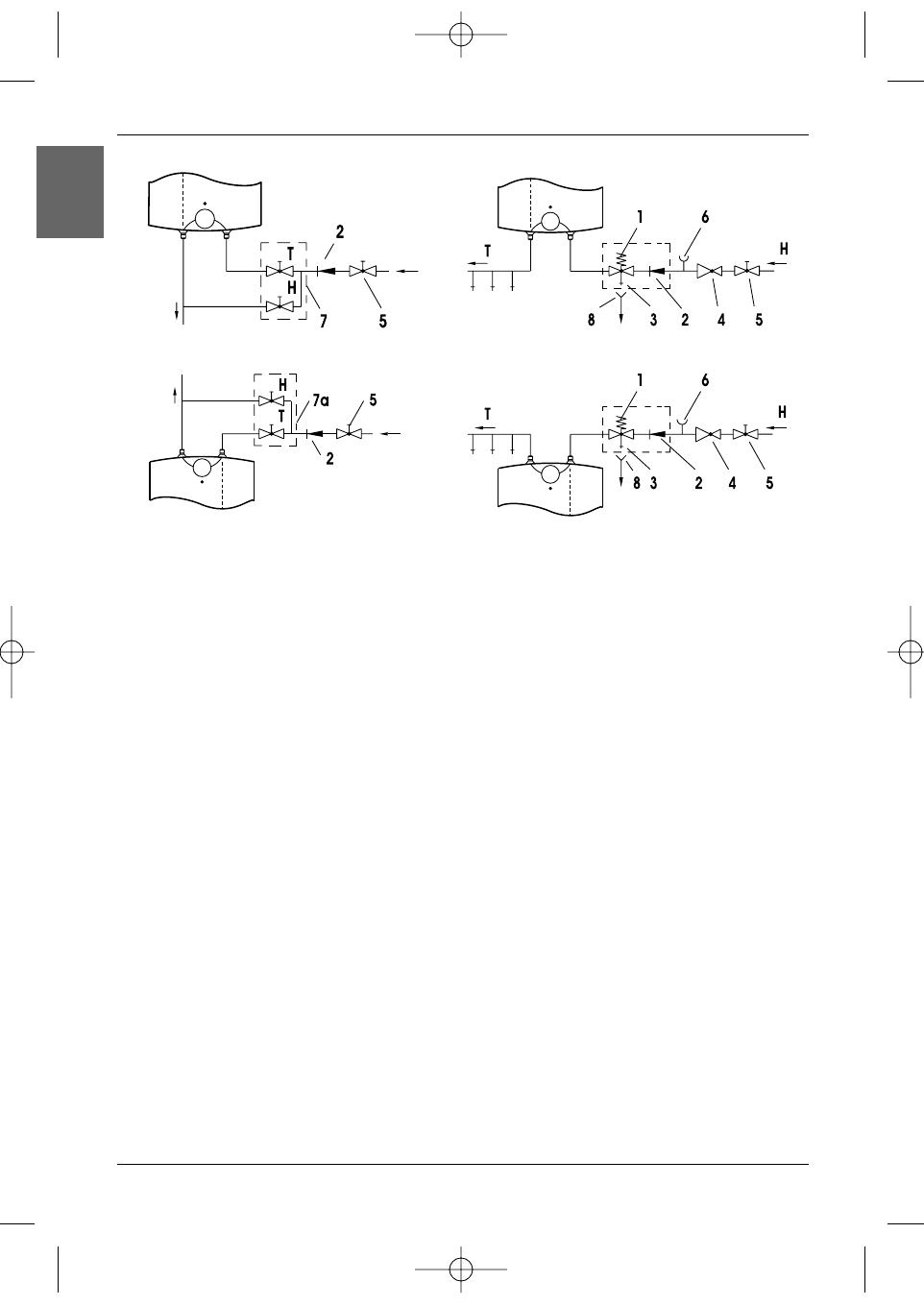

Open-circuit (gravity) system

Closed-circuit (pressure) system

Installation below the basin/sink

Installation below the basin/sink

Legend:

1 - Safety valve

7 - Mixer tap - installation above the basin/sink

2 - Non-return valve

7a - Mixer tap - installation below the basin/sink

3 - Test valve

8 - Funnel outlet to the drain

4 - Pressure-reducing valve
5 - Stop valve

H - Cold water

6 - Testing piece

T - Hot water

The stop valve must not be installed between the water heater and safety
valve, as this would disable the safety valve.

The water heater may be connected to the water supply system without the pressure-
reducing valve, provided the supply mains pressure is less than 0,5 MPa. The water
heater must be filled with water prior to being connected to the power  supply. The hot
water tap must be open during the initial filling of the tank. The tank is full when the water
star ts flowing through the tap and into the sink.

POWER CONNECTION

The water heater shall be connected to the power supply by an electrical cable fitted with
a plug. Should the existing cable replaced by a new, longer cable, the new cable should
be connected to the lead and the wires screwed to the connectors. In this case the
water heater should first be disconnected from the power supply. For safety reasons a
switch should be installed on the lead connecting the heater to the power grid, i.e. a
switch disconnecting both power supply poles with the minimum of 3 mm distance
between the open contacts.
The water heater must be connected to the power supply in accordance with the
requirements set out in the relevant standards applying to the electrical installations.

WARNING: The appliance must be disconnected from the power supply prior
to doing anything that requires you to open the body of the water heater!

Installation above the basin/sink

Installation above the basin/sink
