28

GB

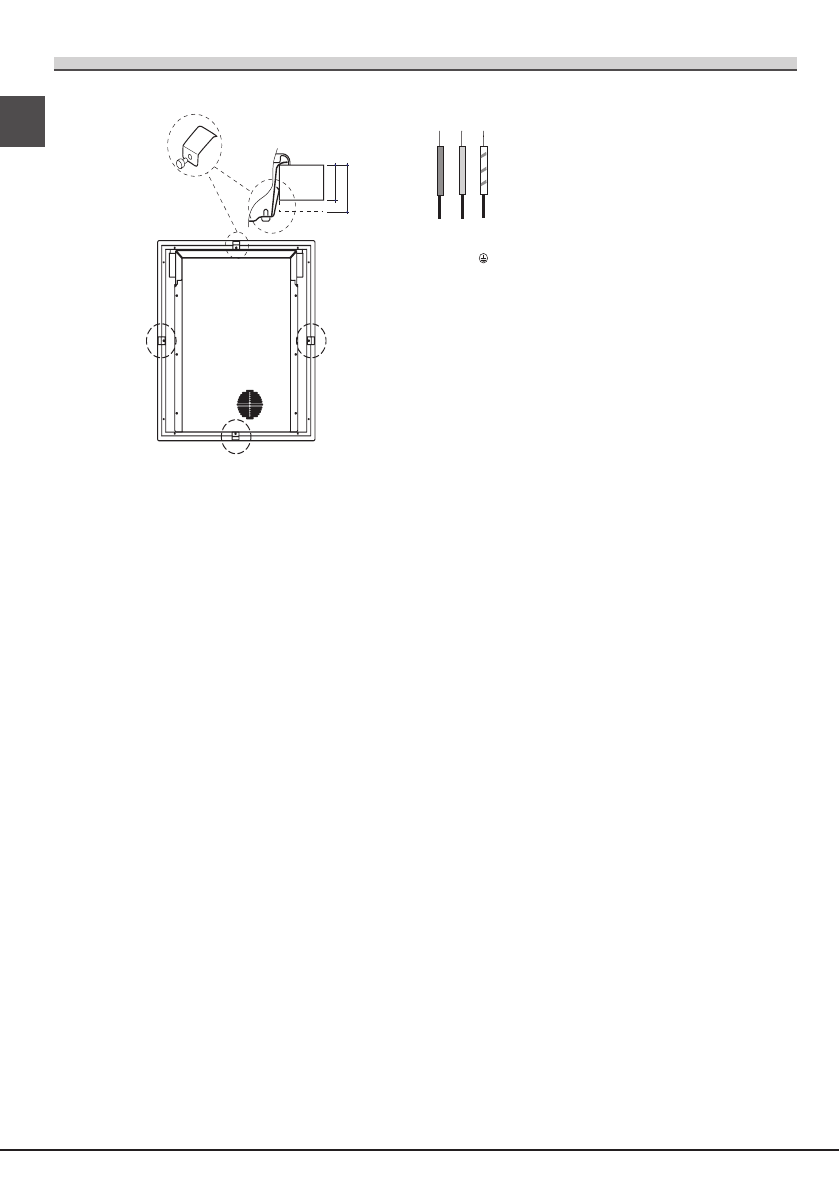

hob is stuck to the supporting surface.

FRONT  SIDE

OF  HOB

SUPPORTIN G

SURFAC E

30

40

UNDERSIDE

OF  HOB

!

 The screws for the alignment springs must remain

accessible.

!

 In order to adhere to safety standards, the appliance

must not come into contact with electrical parts once it

has been installed.

!

 All parts that ensure the safe operation of the appliance

must not be removable without the aid of a tool.

! To maximise the efficiency of all maintenance

procedures, the area around the hob must be easily

accessible after it has been installed (i.e. there are no

completely closed-off elements).

Electrical connection

Hobs equipped with a three-pole power supply cable are

designed to operate with alternating current at the voltage

and frequency indicated on the data plate (this is located

on the lower part of the appliance). The earth wire in the

cable has a green and yellow cover. If the appliance is to

be installed above a built-in electric oven, the electrical

connection of the hob and the oven must be carried out

separately, both for electrical safety purposes and to make

extracting the oven easier.

Single-phase connection

If  the  hob  is  fitted  with  a  supply  cable,

connect it to the mains, observing the

colour coding of the wires (see diagram).

The yellow-green earth wire must be 5 cm

longer than the other wires.

Connecting the supply cable to the mains

The appliance must be directly connected to the mains

using an omnipolar circuit-breaker with a minimum contact

opening of 3 mm installed between the appliance and

the mains.  The circuit-breaker must be suitable for the

charge indicated and must comply with current electrical

regulations (the earthing wire must not be interrupted by

the circuit-breaker). The supply cable must not come into

contact with surfaces with temperatures higher than 50°C.

!

 The installer must ensure that the correct electrical

connection has been made and that it is compliant with

safety regulations.

Before connecting to the power supply, make sure that:

•  the appliance is earthed and the plug is compliant with

the law.

•  the socket can withstand the maximum power of the

appliance, which is indicated on the data plate.

•  the voltage is in the range between the values indicated

on the data plate.

•  the socket is compatible with the plug of the appliance.

If the socket is incompatible with the plug, ask an

authorised technician to replace it. Do not use

extension cords or multiple sockets.

!

 Once the appliance has been installed, the power supply

cable and the electrical socket must be easily accessible.

!

 The cable must not be bent or compressed.

!

 The cable must be checked regularly and replaced by

authorised technicians only (see Assistance).

!

The manufacturer declines any liability should these

safety measures not be observed.

Blue Brown

N

Neutra

l

L

Liv

e

Green/Yellow

Eart

h
