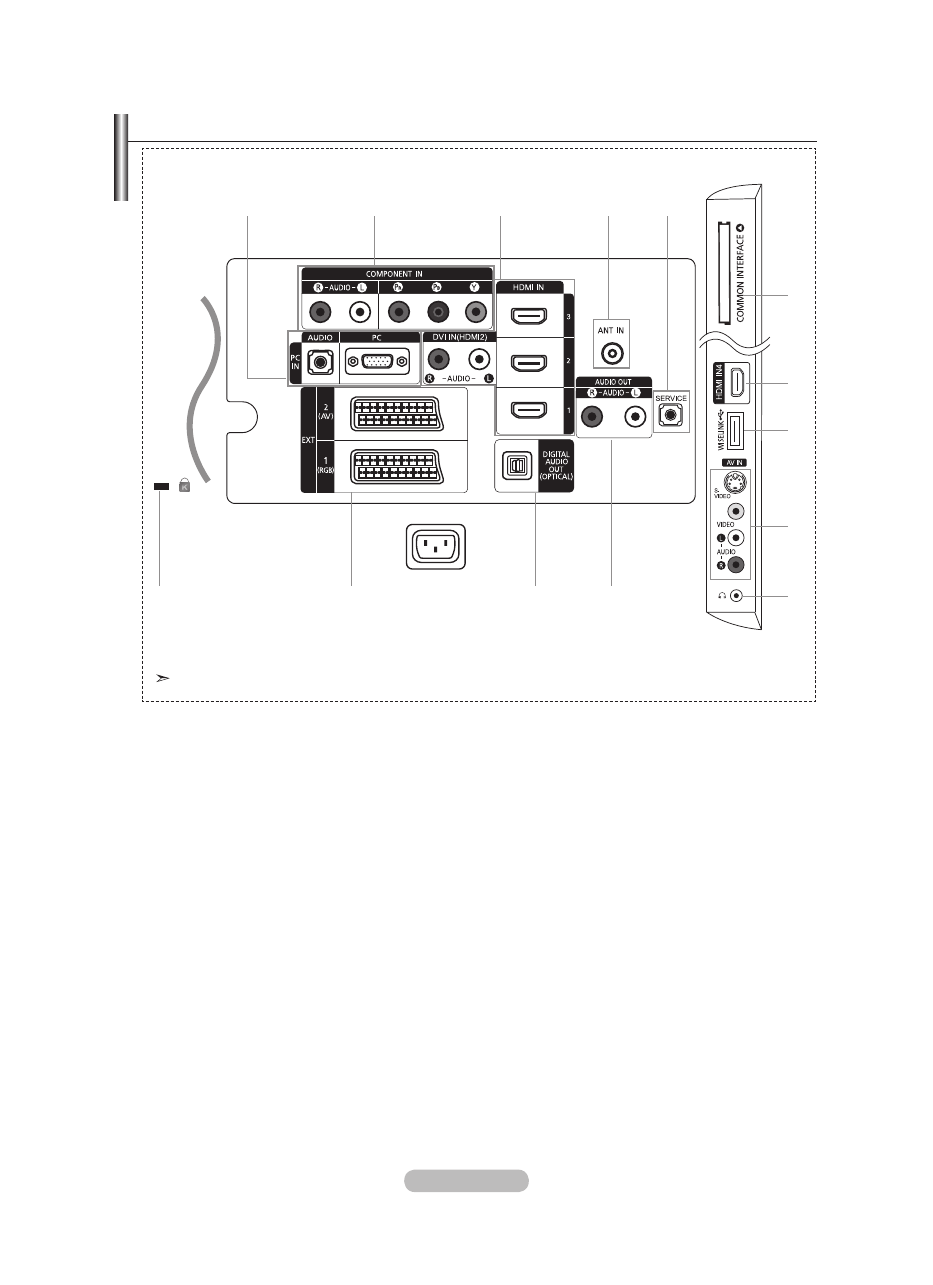

Viewing the Connection Panel
Whenever you connect an external device to your TV, make sure that power on the unit is turned off
When connecting an external device, match the colour of the connection terminal to the cable.
1
PC IN [PC] / [AUDIO]
Connect to the video and audio output jack on your PC.
2
COMPONENt IN
Connect component video cables (optional) to component connector ("P
R
", "P
B
", "Y") on the rear of
your set and the other ends to corresponding component video out connectors on the DTV or DVD.
If you wish to connect both the Set-Top Box and DTV (or DVD), you should connect the Set-Top Box
to the DTV (or DVD) and connect the DTV (or DVD) to component connector ("P
R
", "P
B
", "Y") on
your set.
The P
R
, P
B
and Y connectors on your component devices (DTV or DVD) are sometimes labeled Y,
B-Y and R-Y or Y, Cb and Cr.
Connect RCA audio cables (optional) to "R - AUDIO - L" on the rear of your set and the other ends to
corresponding audio out connectors on the DTV or DVD.
3
hDMI IN 1, hDMI IN 2, hDMI IN , hDMI IN
Supports connections between HDMI-connection-enabled AV devices (Set-Top Boxes, DVD players)
No additional Audio connection is needed for an HDMI to HDMI connection.
When using an HDMI/DVI cable connection, you must use the HDMI IN 2 jack.
➣
➣
-
-
-
-
-
-
-
-
6
0
The product colour and shape may vary depending on the model.
Power Input
[Side Panel Jacks]
1
2
3
4
5
3
7
8
9
!
@
#
