ENERAL INJECTORS TABLE

Kind of gas

mbar

Nozzle

N.

Burners Position-type

Power

Watt

Consum

max.

min.

max.

Natural

20

1.15

Rapide

3000

750

286 l/h

0.97

Semi rapide

1750

480

167 l/h

0.72

Auxiliary

1000

330

95 l/h

1.30

Triple crown

3600

1300

343 l/h

G.P.L.

Butane

propane

30

0.85

Rapide

3000

750

219 l/h

28

0.65

Semi rapide

1750

480

128 l/h

37

0.50

Auxiliary

1000

330

73 l/h

0.96

Triple crown

3600

1300

262 l/h

MINIMUM FLOW ADJUSTMENT FOR WORK-TOP TAPS

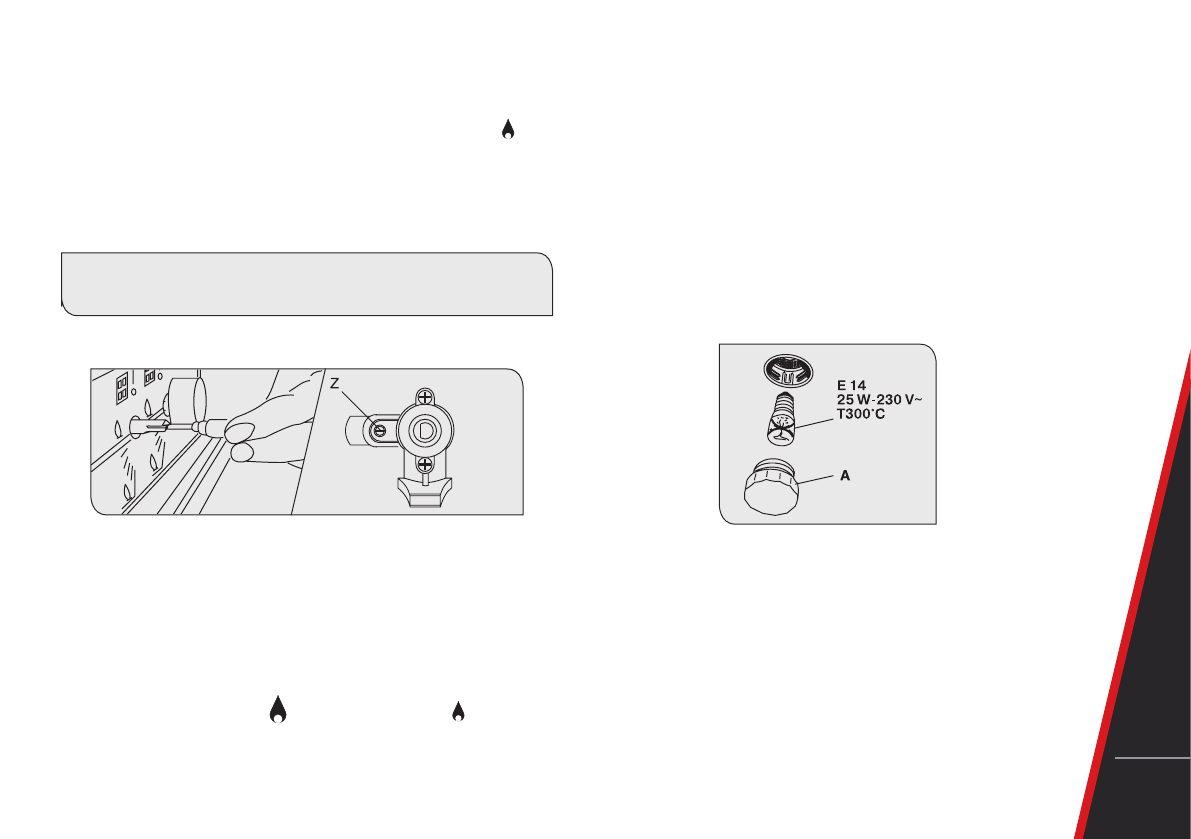

 In order to adjust the minimum, act as follows: switch the burner
on, and turn the knob towards the minimum flow position  .
Remove the knob from the tap, introduce a little screwdriver in
the tap rod (fig. 12A).

ATTENTION

in taps with security valve, the minimum adjusting screw
“Z” is placed outside the rod tap (fig. 12B).

Unscrew the adjusting screw in order to increase the flow or
screw it to decrease the flow.
The right adjustment is obtained when the flame has a length of
about 3 or 4 mm.
For butane/propane gas, the adjusting screw must be tight
screwed. Make sure that the flame does not go out passing
quickly from the max. flow    to the minimum flow  .
Assemble the knob again.

Fig.12 A

Fig.12 B

APPLIANCE MAINTENANCE

WARNINGS

Isolate the cooker from the electricity supply before attempting to
replace the oven lamp.

The oven lamp

 used is of a special type withstanding high

temperatures. To replace it, act as follows: disassemble the
protecting glass (A) and replace the burnt lamp with one of the
same type. Reassemble the protecting glass.

DISASSEMBLE OF WORK-TOP

In case it is necessary to repair or replace the inside components,
act as follows:remove the glass lid from its position slipping off it
upwards.
Remove the grids, remove burners and flame-spreaders

(see fig. 13), unscrew the visible screws “V” placed on the work-
top (see fig. 14). Disassemble the work-top by unscrewing the
4  rear screws “A” (see fig. 15).
