12

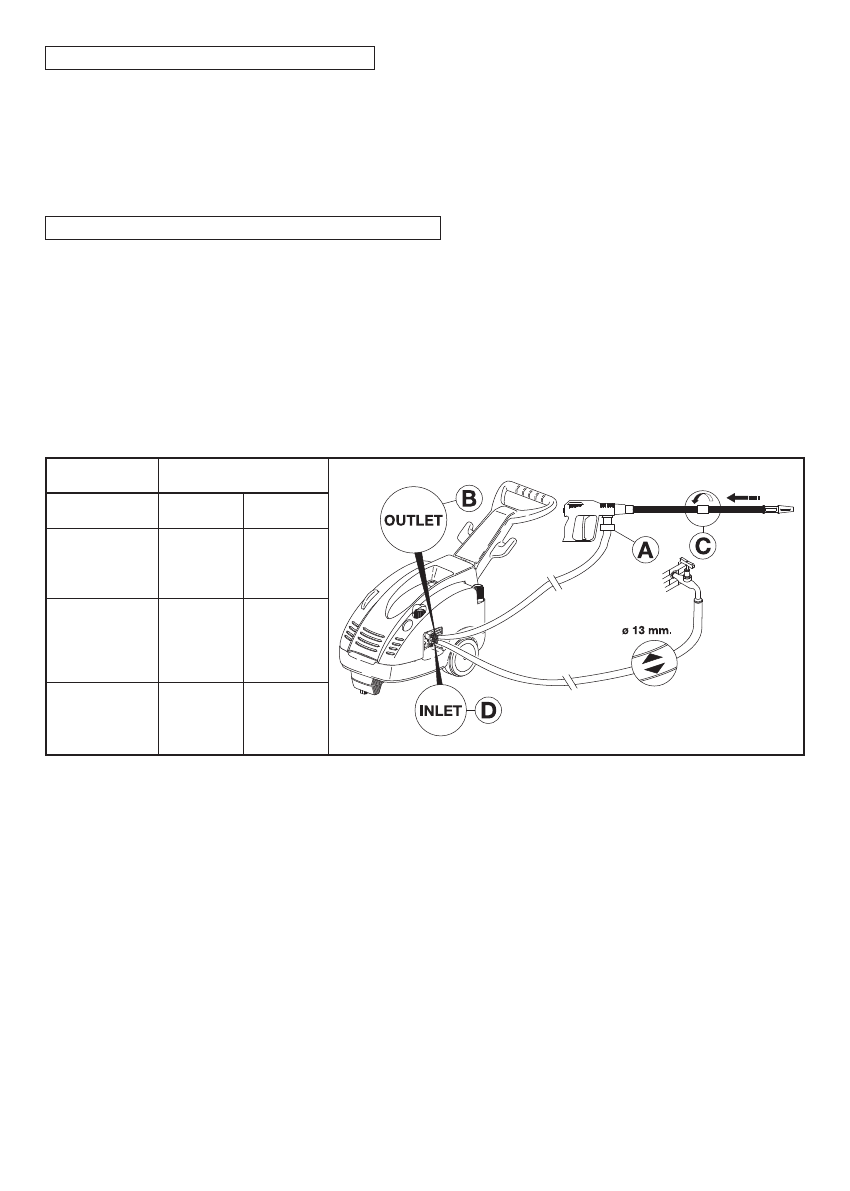

5.1 HIGH PRESSURE CONNECTION

1 - Connect one end of the high pressure hose to the automatic gun (A) and the other end to
the OUTLET connection on the machine. Tighten firmly (B).

2 - Complete the assembly by coupling the extension to the gun/lance and tighten firmly (C).

5.2 - CONNECTION TO THE WATER SUPPLY

1- The maximum temperature of the inlet water must not exceed 60°C (140°F).
2- Connect the water supply to the INLET (D) port by means of a reinforced hose (min.15
bar/1,5 MPa/200 psi) with the internal diameter not less than 13mm (1/2”)
3- Since the water flow decreases according to the length of the hose, make sure that the quan-
tity of water supplied to the machine is not less than the quantities indicated in the chart below.
4- The pressure of the inlet water must not exceed 10 bar, 1 MPa, 145 psi.

ATTENTION: The water supply which enters into the washer is not drinkable.

IMPORTANT

The water supplied to the machine must be clean. Running the unit without water, or with water
which is dirty, contains grit or corrosive liquids, causes serious damage to the machine.

MODEL

L/min.

G.P.M. USA

TSX SERIES

FLOW RATE OF

WATER SUPPLY

TSX 10-130
TSX 12-100
TSX 12-140

TSX 951

TSX 14-120
TSX 13-180

TSX 954
TSX 955
TSX 956

TSX 15-150
TSX 17-130

TSX 957
TSX 961

15

17

20

4

4.5

5.3

If the user wishes to power the washer by means of free suction, simply emerge the end of the
supply tube in the water to be suctioned. The maximum suction depth considered as the dis-
tance in height between the water surface and the pump varies between 1 m. and 3 m. (see
technical specifications table).
