11

A

B

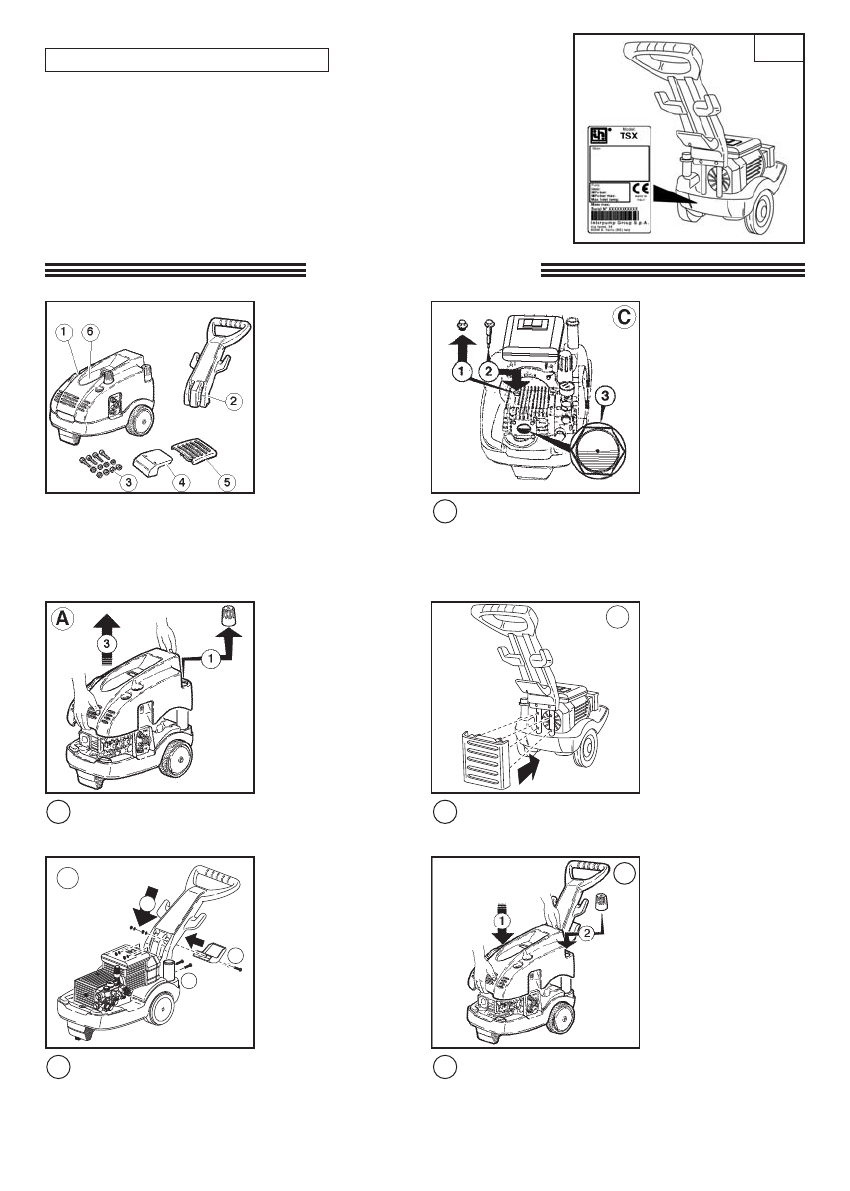

Before using the machine, make sure that it is provided with the
identification Label. In case the Identification Label is missing,
do not use the machine and consult your dealer immediately.
The Identification Label with the technical specifications is fixed
to the motor.
Check that the mains voltage is the same as shown on the iden-
tification label.

4.2 - IDENTIFICATION LABEL

5 - INSTALLATION

Body of the unit

Handle

Kit of screws + washers + nuts

Hose hanger

Fan grid

Cover fixing knob

Remove the cap of the chemical tank

Unscrew cover fixing knob

Remove the cover

C

Replace the red plug (Fig. 1) with the black and yellow
dipstick (Fig. 2) and check that the oil in the sigth
glass is at half-way level (Fig. 3).

D

Insert fan grid into its holes and push firmly until it is
fully locked.

E

Replace the cover.

Reinsert the chemical tank cap.

Lock cover fixing knob.

Insert the handle in its guides.

Fix the handle and hose hanger by using screws,
nuts and washers supplied.

Fix the bottom of the handle by using screws, nuts

and washers supplied.

1

2

3

B

D

E

TSX
