Overview of Components

CPU Socket

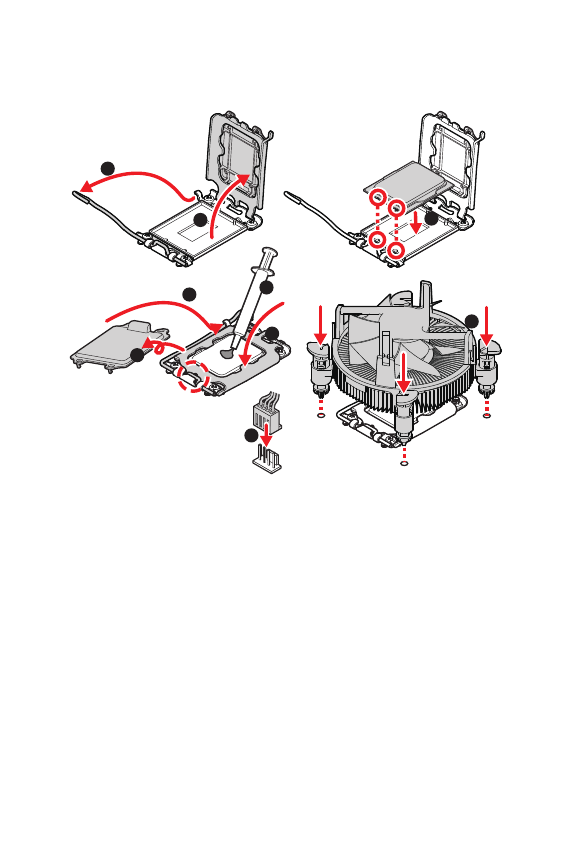

Please install the CPU into the CPU socket as shown below.

⚠

Important

∙

Always unplug the power cord from the power outlet before installing or removing

the CPU.

∙

Please retain the CPU protective cap after installing the processor. MSI will deal

with Return Merchandise Authorization (RMA) requests if only the motherboard

comes with the protective cap on the CPU socket.

∙

When installing a CPU, always remember to install a CPU heatsink. A CPU heatsink

is necessary to prevent overheating and maintain system stability.

∙

Confirm that the CPU heatsink has formed a tight seal with the CPU before booting

your system.

∙

Overheating can seriously damage the CPU and motherboard. Always make sure

the cooling fans work properly to protect the CPU from overheating. Be sure to apply

an even layer of thermal paste (or thermal tape) between the CPU and the heatsink to

enhance heat dissipation.

∙

Whenever the CPU is not installed, always protect the CPU socket pins by covering

the socket with the plastic cap.

∙

If you purchased a separate CPU and heatsink/ cooler, Please refer to the docu-

mentation in the heatsink/ cooler package for more details about installation.

1

4

6

5

7

8

9

3

2
