Hardware Installation
- 20 -

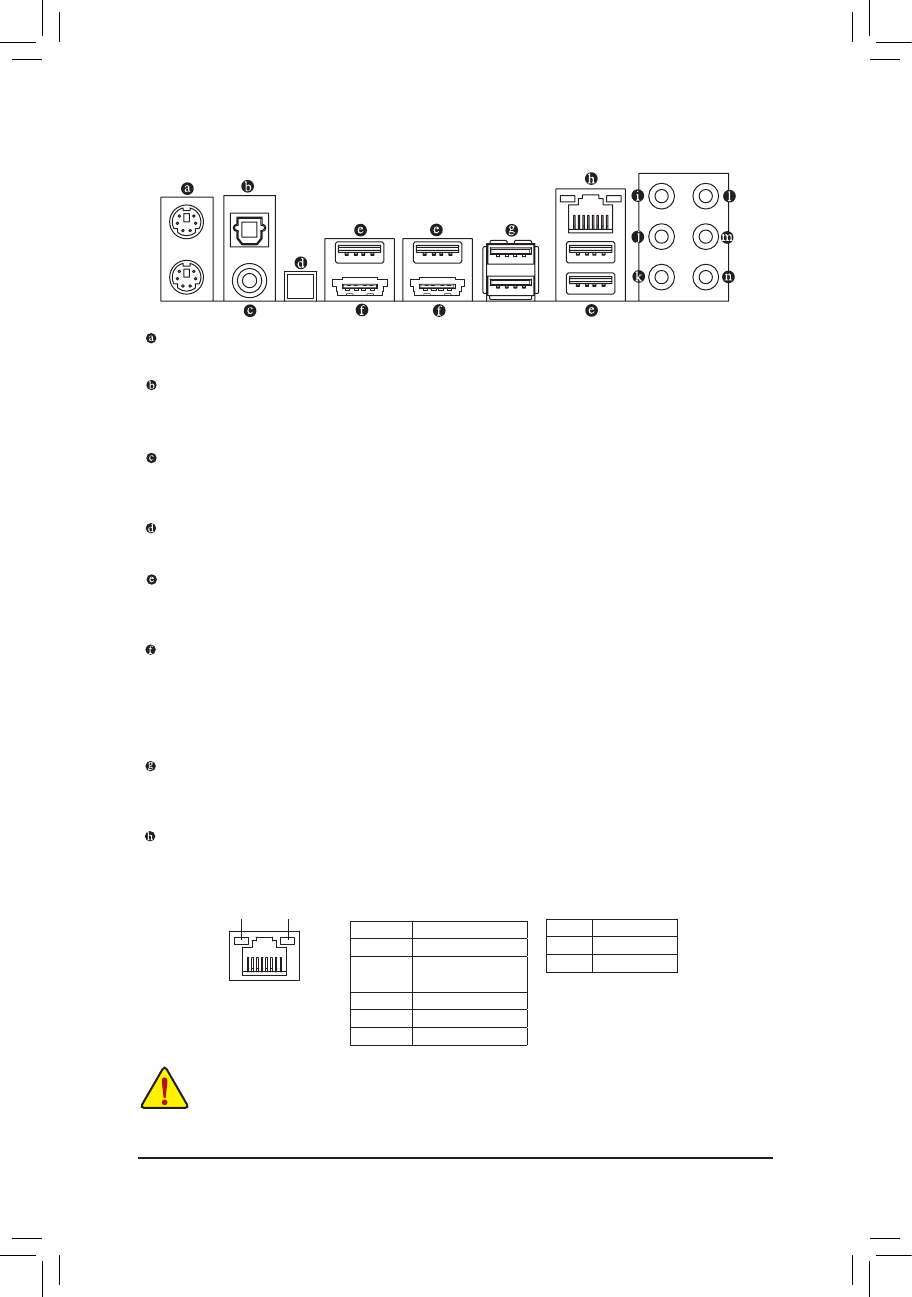

1-7 Back Panel Connectors
•
When removing the cable connected to a back panel connector, first remove the cable from your
device and then remove it from the motherboard.
•
When removing the cable, pull it straight out from the connector. Do not rock it side to side to
prevent an electrical short inside the cable connector.
PS/2 Keyboard and PS/2 Mouse Port
Use the upper port (green) to connect a PS/2 mouse and the lower port (purple) to connect a PS/2 keyboard.
Optical S/PDIF Out Connector
This connector provides digital audio out to an external audio system that supports digital optical audio.
Before using this feature, ensure that your audio system provides an optical digital audio in connector.
Coaxial S/PDIF Out Connector
This connector provides digital audio out to an external audio system that supports digital coaxial audio.
Before using this feature, ensure that your audio system provides a coaxial digital audio in connector.
O.C. Button
Press this button to overclock your CPU. To return to the defaults, press this button again.
USB 2.0/1.1 Port
The USB port supports the USB 2.0/1.1 specification. Use this port for USB devices such as a USB key
-
board/mouse, USB printer, USB flash drive and etc.
eSATA/USB Combo Connector
This connector supports SATA 3Gb/s and USB 2.0/1.1 specification. Use the port to connect an external
SATA device or a SATA port multiplier.The JMicron JMB362 chip supports RAID function. Refer to
Chapter 5, "Configuring SATA Hard Drive(s)," for instructions on configuring a RAID array. Or use this
port for USB devices such as a USB keyboard/mouse, USB printer, USB flash drive and etc.
USB 3.0/2.0 Port
The USB 3.0 port supports the USB 3.0 specification and is compatible to the USB 2.0/1.1 specification.
Use this port for USB devices such as a USB keyboard/mouse, USB printer, USB flash drive and etc.
RJ-45 LAN Port
The Gigabit Ethernet LAN port provides Internet connection at up to 1 Gbps data rate. The following
describes the states of the LAN port LEDs.
O.C.
Link LED
Speed/Activity LED
LAN Port
Link LED:
Speed/Activity LED:
State
Description
Orange
10 Mbps data rate
Green +
Orange
100 Mbps data rate
Green
1 Gbps data rate
Blinking
Network activity
Off
No connection
State
Description
On
Linked properly
Off
No link
