2.7 Headers & Connectors

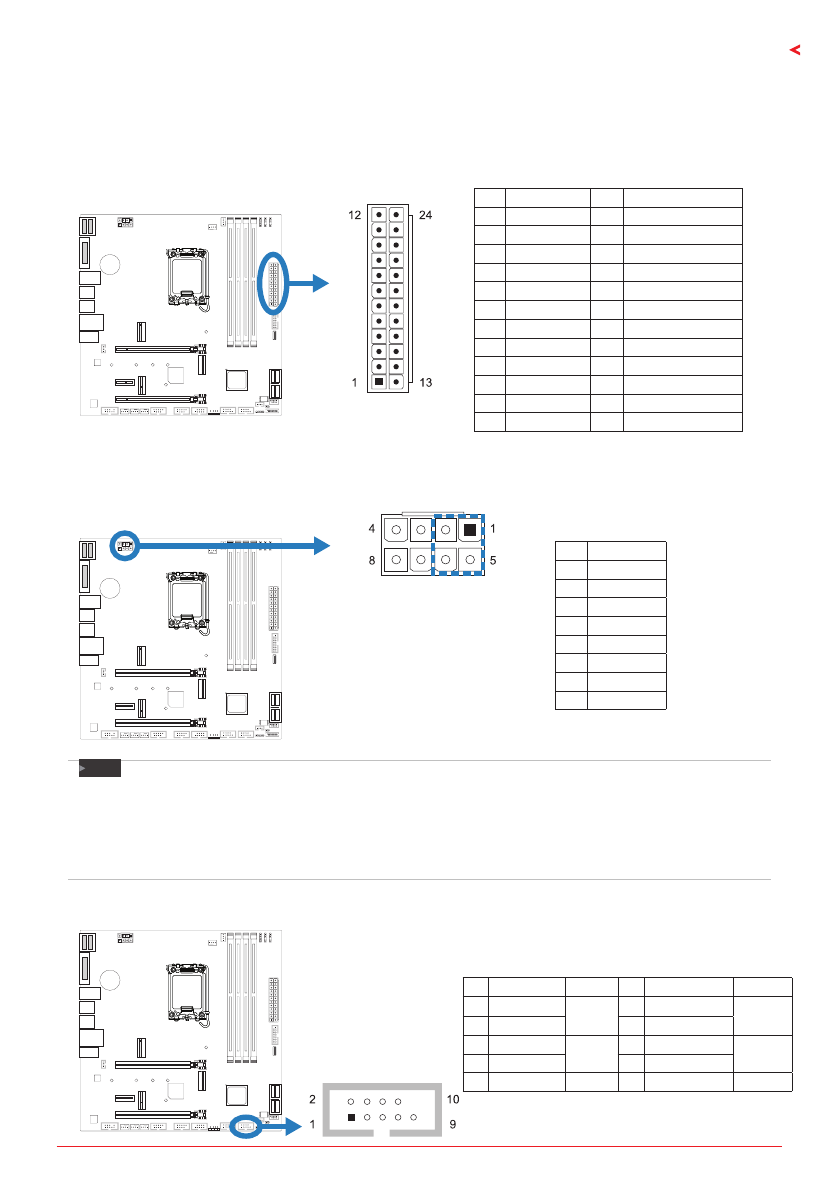

ATX: ATX Power Source Connector

For better compatibility, we recommend to use a standard ATX 24-pin power supply for this

connector. Make sure to find the correct orientation before plugging the connector.

Pin Assignment

Pin Assignment

13

+3.3V

1

+3.3V

14

-12V

2

+3.3V

15

Ground

3

Ground

16

PS_ON

4

+5V

17

Ground

5

Ground

18

Ground

6

+5V

19

Ground

7

Ground

20

NC

8

PW_OK

21

+5V

9

Standby Voltage+5V

22

+5V

10

+12V

23

+5V

11

+12V

24

Ground

12

+3.3V

ATX_12V_2X4: ATX Power Source Connector

The connector provides +12V to the CPU power circuit. If the CPU power plug is 4-pin, please

plug it into Pin 1-2-5-6 of ATX_12V_2X4.

Pin Assignment
1

+12V

2

+12V

3

+12V

4

+12V

5

Ground

6

Ground

7

Ground

8

Ground

Note

»

   Before you power on the system, please make sure that both ATX, ATX_12V_2X4 and connectors

have been plugged-in.

»

   Insufficient power supplied to the system may result in instability or the peripherals not functioning

properly. Use of a PSU with a higher power output is recommended when configuring a system with

more power-consuming devices.

PANEL1: Front Panel Header

This 10-pin header includes Power-on, Reset, HDD LED, Power LED connection.

Pin Assignment Function Pin Assignment

Function

1

HDD LED(+) HDD

LED

2

Power LED (+) Power

LED

3

HDD LED(-)

4

Power LED (-)

5

Ground

Reset
Button

6

Power Button

Power-On
Button

7

Reset Control

8

Ground

9

NC

NC

10 NA

NA
