14 | Chapter 2: Hardware installation

2.5 Expansion Slots

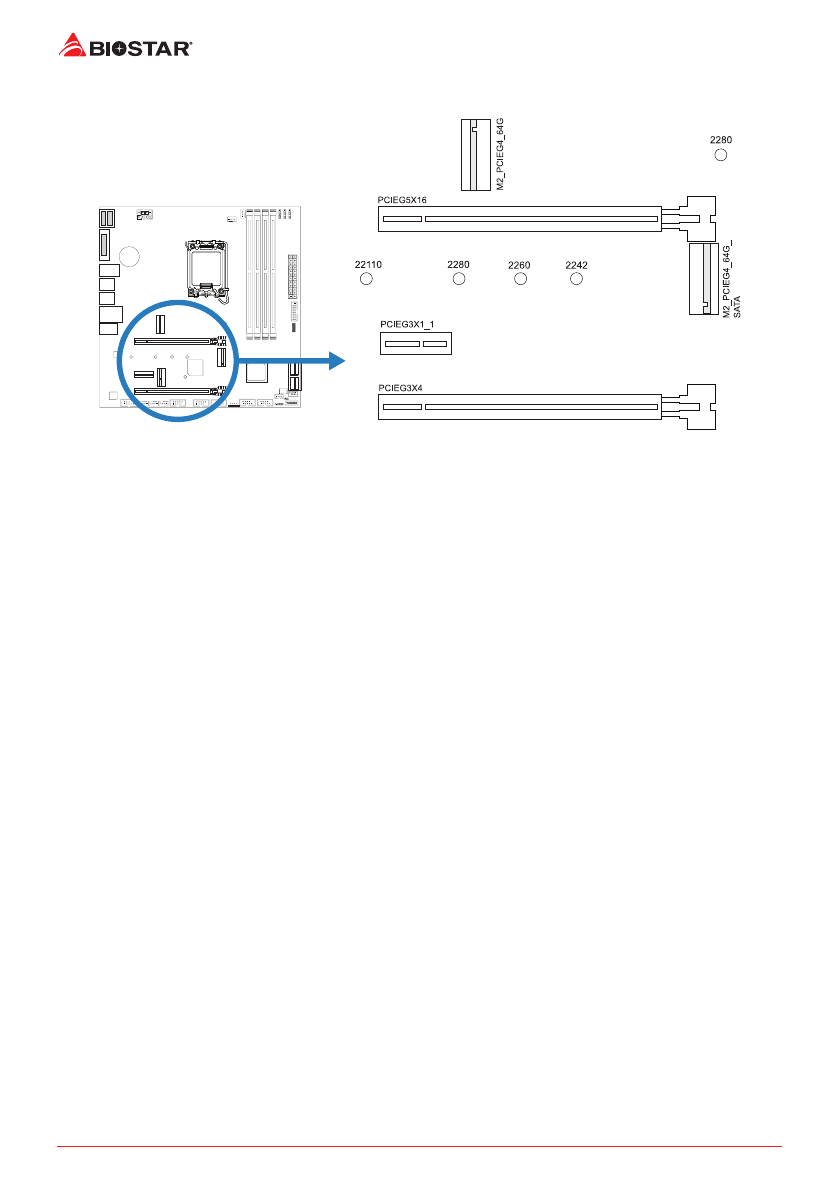

PCIEG5X16: PCI-Express Gen5 x16 Slots (x16 mode)

•   PCI-Express 5.0 compliant.

•   The maximum bandwidth of the PCIe slot is 128GB/s.

PCIEG3X4: PCI-Express Gen3 x16 Slots (x4 mode)

•   PCI-Express 3.0 compliant.

•   The maximum bandwidth of the PCIe slot is 8GB/s.

PCIEG3X1_1: PCI-Express Gen3 x1 Slots

•   PCI-Express 3.0 compliant.

•   Data transfer bandwidth up to 1GB/s per direction; 2GB/s in total

M2_PCIEG4_64G: M.2 (M Key) Socket

•   The M.2 slot supports M.2 Type 2280 SSD module. When installing M.2 SSD module,

please place the screw and hex pillar to correct position.

•   Supports M.2 PCI Express module up to Gen4 x4 (64Gb/s) - NVMe & AHCI SSD.

•   Supports Intel® Optane Technology.

M2_PCIEG4_64G_SATA: M.2 (M Key) Socket

•   The M.2 slot supports M.2 Type 2242/ 2260/ 2280/ 22110 SSD module. When installing

M.2 SSD module, please place the screw and hex pillar to correct position.

•   Supports M.2 SATA III (6Gb/s) module and M.2 PCI Express module up to Gen4 x4

(64Gb/s) - NVMe & AHCI SSD

•   Supports Intel® Rapid Storage Technology & Intel® Optane Technology.
