Chapter 2: Hardware installation | 13

B660GTQ

I

 B660M-SILVER

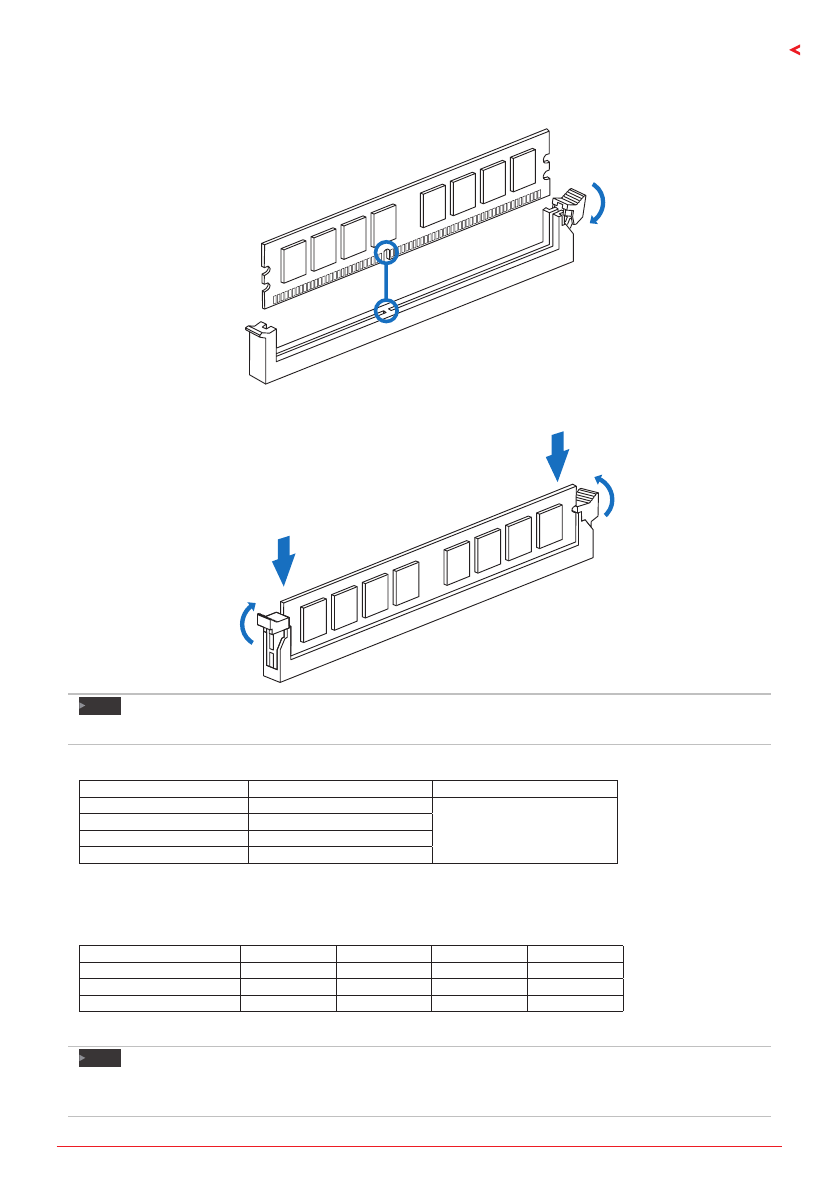

Step 1: Unlock a DIMM slot

by pressing the retaining clips outward. Align a DIMM on the slot

such that the notch on the DIMM matches the break on the slot.

Step 2: Insert the DIMM vertically and firmly into the slot until the retaining clips snap back in

place and the DIMM is properly seated.

Note

»

   If the DIMM does not go in smoothly, do not force it. Pull it all the way out and try again.

Memory Capacity

DIMM Socket Location DDR4 Module

Total Memory Size

DDR4_A1

4GB/8GB/16GB/32GB

Max is 128GB.

DDR4_A2

4GB/8GB/16GB/32GB

DDR4_B1

4GB/8GB/16GB/32GB

DDR4_B2

4GB/8GB/16GB/32GB

Dual Channel Memory Installation

Please refer to the following requirements to activate Dual Channel function:

Install memory module of the same density in pairs, shown in the table.

Dual Channel Status

DDR4_A1

DDR4_A2

DDR4_B1

DDR4_B2

Enabled

O

X

O

X

Enabled

X

O

X

O

Enabled

O

O

O

O

(O means memory installed, X means memory not installed.)

Note

»

When installing more than one memory module, we recommend to use the same brand and

capacity memory on this motherboard.
