Download the Map

In order to download the map the ST16E need to
be connected to the internet via Wi-Fi.
Tap the Wi-Fi mark then select a hotspot.
When the ST16E was connected with Wi-Fi it will
download the map automatically, Slide the screen
to move the map to arrive your required area for
downloading. To Switching the map or video as
main interface by tapping the rectangular window
on the lower left corner of the screen.

RTK data binding (For H520E-RTK only)

Option 1
CORS Network Binding:

Notice:

 Please download the map first then connect

the ST16E to the RTK data link.

Step 1: After the ST16E and drone are bound, tap
the Wi-Fi logo and select a Hotspot to make con-
nect the ST16E to the internet.

Notice:

 If conditions permit, please use the 5 GHz

Wi-Fi to transfer the RTK data between the hotspot
with ST16E for stable communication quality.

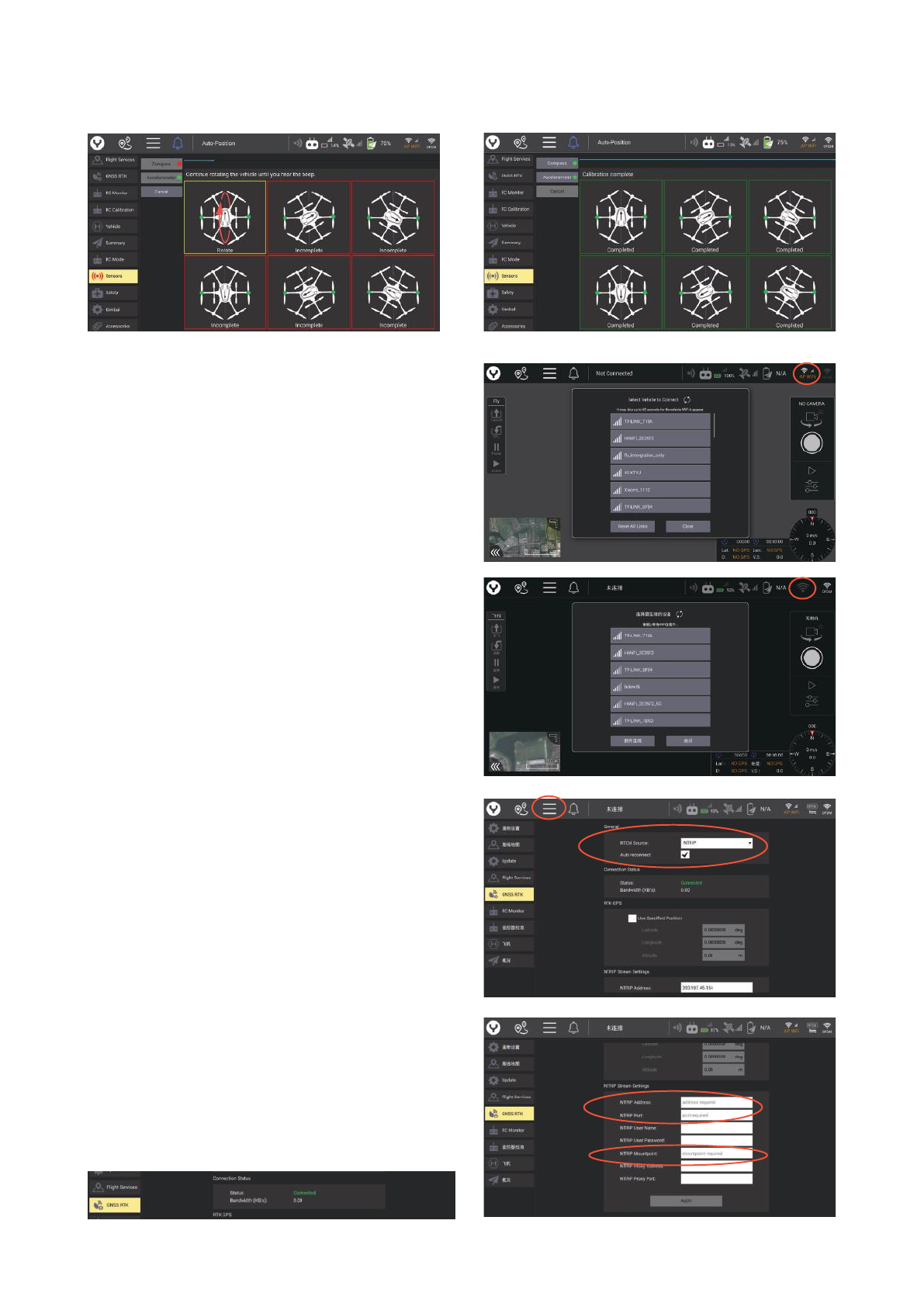

Step 2: Tap the Settings icon then tap GNSS RTK.
Select NTRIP as the RTCM source, then tick Auto
Reconnect.

Step 3: Fill the following NTRIP Stream Settings pa-
rameters according to your CORS Network.

Notice:

 You must fill out the Required Tagging

Form.

Step 4: Tap Apply to finish the connection process.

Notice:

When connection to the CORS Network has

been successful, the Connection Status display will
display a green “Connected” .

14

During Calibration

Calibration Finished
