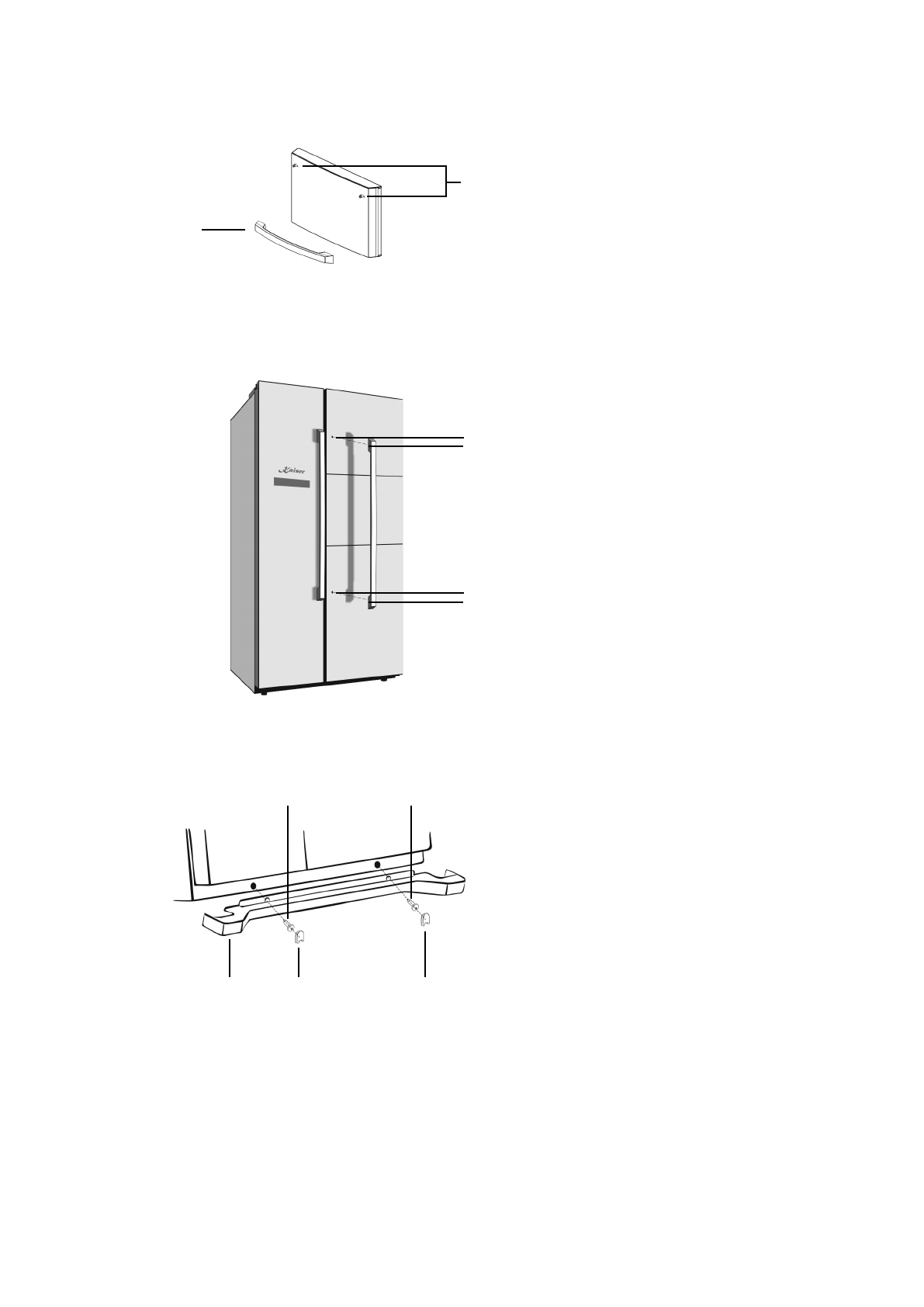

Handle installation

Models with freezer drawers

Use cross recessed screwdriver to set

the bolts

1

on the door as shown in

the  figure.  Fix  them  tight  on  the  door.

Place the handle

2

 from above as

per the direction shown at the picture

and hang the handle above on the

set  bolts.  Using  the  supplied  hexagon

spanner set screws into the threaded

holes and tighten them gently. Ensure

that the handle is well erected.

Models KS 9...

Use cross recessed screwdriver to set

the lugs

3

on the door as shown in the

figure.  Turn  the  screws  of  the  lugs  to

tighten.

Place the inner ledges of the fixing el-

ements

4

of the door handle

into the

corresponding slots of upper and low-

er lugs simultaneously and move the

door handle from the bottom up.

Using the screwdriver, turn the keeper

screw under the door handle to tighten.

Ensure that the handle is well erected.

Decorative bar installation

Modelle KS 9...

Install the decorative bar

5

 on the bot-

tom  panel  as  shown  in  the  figure.  By

means of a cross recessed screwdriver

turn the screws

6

 to tighten. By means

of delivered in the complete set screw

caps

7

 close openings for screws. Re-

move a protective film from the bar.
