Connection to the electrical power mains

WARNING

This apparatus must be earthed.

The oven is only for domestic use.
The feed voltage and the absorbed power are as indicated on the data plate attached to
the left-hand side upright, which can be seen when the oven door is open.
Connecting must be carried out by qualified personnel and in accordance with the
regulations currently in force.

The manufacturer can not be held responsible for any damages to persons or objects
caused by failure to observe these instructions.

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent
or similarly qualified persons in order to avoid a hazard.

The oven must be connected to the mains through a multipole circuit breaker with
a contact-to-contact gap of at least 3 mm, making sure that the earth wire is not
disconnected. For connecting use a flexible cable of the

H05V2V2-F 3x1,5 mm

2

type

remembering to make it long enough to allow the oven to be removed from its housing
unit when maintenance work is required.

To connect the cable to the oven
proceed as follows (see Fig. 2):
-  Remove the lid (1) by unfastening

the three screws (2). Unfasten the
two screws (3) for the cable holder
and feed the cable through the
opening immediately below the
cover.

-  Remove about 12 cm of the outside

insulation from the cable and shorten
the two active wires (live and neutral)
to 6 cm, leaving long the one to  be
connected to the main earth terminal
on the terminal box; remove about
1 cm of the main insulation from the
three wires and connect them correctly
to the terminal box, remembering to respect the polarities.

-  Tighten the two screws (3) of the cable holder and put the lid (1) back on with the three

screws (2).

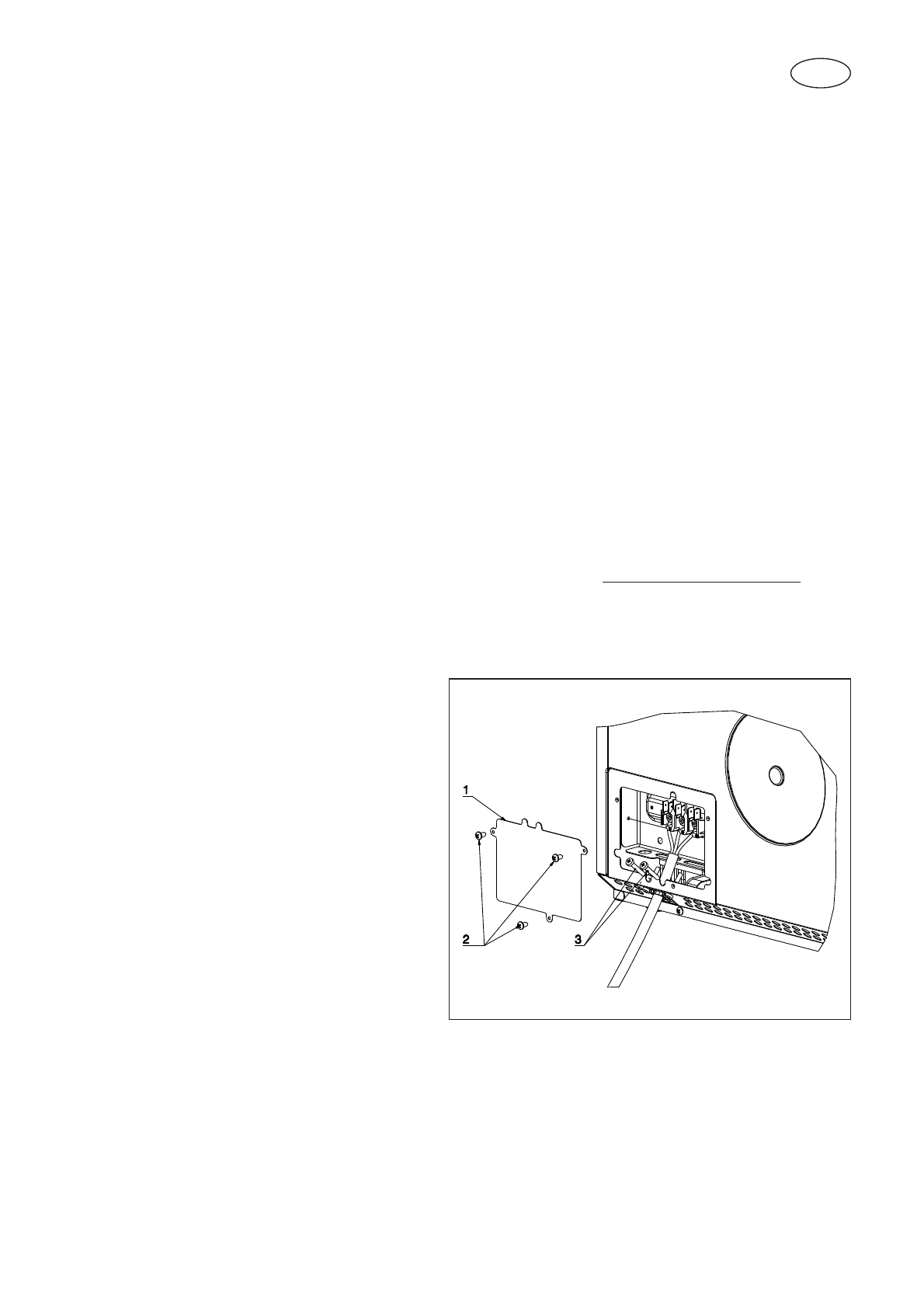

Fig. 2
