ENGLISH

en

12

is suitable for double-wheeled bench grinders. Inner

diameter of extraction connection piece: 35 mm.

Before switching on the machine, ensure that the

extraction device is connected and being used

correctly.

6.6 Test run

Check the grinding wheels before initial use.

Test run

A test run of approx. 5 min without load must

be carried out before initial use. All persons must

stay clear of the danger zone when this is

performed.

.

7.1 Adjusting the workpiece support

Adjust the workpiece supports (8) frequently to

compensate for wear of the grinding wheels (4).
The distance between the workpiece support and

grinding material must be as small as possible and

never greater than 2 mm (see illustration C, page 2).
If the grinding wheel is so badly worn that the

maximum distance of 2 mm can no longer be

maintained, the grinding wheel must be replaced.

7.2 Adjusting the spark deflector

Adjust the spark deflectors (10) regularly to

compensate for wear on the grinding wheels (4).
Release the 2 screws on the spark deflector and

shift the spark deflector.
The distance between the spark deflector and

grinding wheel must be as small as possible and

never greater than 2 mm (see illustration C, page 2).
If the grinding wheel is so badly worn that the

maximum distance of 2 mm can no longer be

maintained, the grinding wheel must be replaced.

7.3 Switching On and Off

Press the switch  (11) (see illustrations D, page 2).

I

= Switch  on

0

= Switch  off

DS 125, DS 150:

Avoid inadvertent starts: always

switch the grinder off when the plug is removed from

the mains socket or if there has been a power cut.

Restart protection (not in DS 125, DS 150):

When power is restored after a power failure, the

machine - which is still switched on - will not start

automatically for safety reasons. Switch machine

on and off again.

7.4 Dry grinding, belt sanding

- Stand in front of the grinder.

- Holding the workpiece with both hands, place the

workpiece on the workpiece supports (8) and

gently press it against the dry grinding wheel/

sanding belt. For optimum grinding/sanding

results, move the workpiece gently to and fro. This

also helps to distribute wear evenly on the

grinding material.

7.5 Wet grinding (TNS 175 only)

Only use the wet grinding wheel for grinding

when there is water in the water container.

(18). Roughly 1/3 of the wet grinding wheel should

be immersed in water. grinding results may

impaired if the water level is either too low or too

high.
- Stand to the left of the grinder, in front of the wet

grinding wheel.

- Holding the workpiece with both hands, lower it

onto the wet grinding wheel. You can also support

the workpiece on the levels on the water container

(18) and then lower the workpiece onto the wet

grinding wheel.

7.6 Adjusting the belt run (BS 175 only)

Unplug. Rotate the sanding belt manually. Use

the rotary knob (14) to adjust the sanding belt

so that it runs centrally on the sanding belt roller.

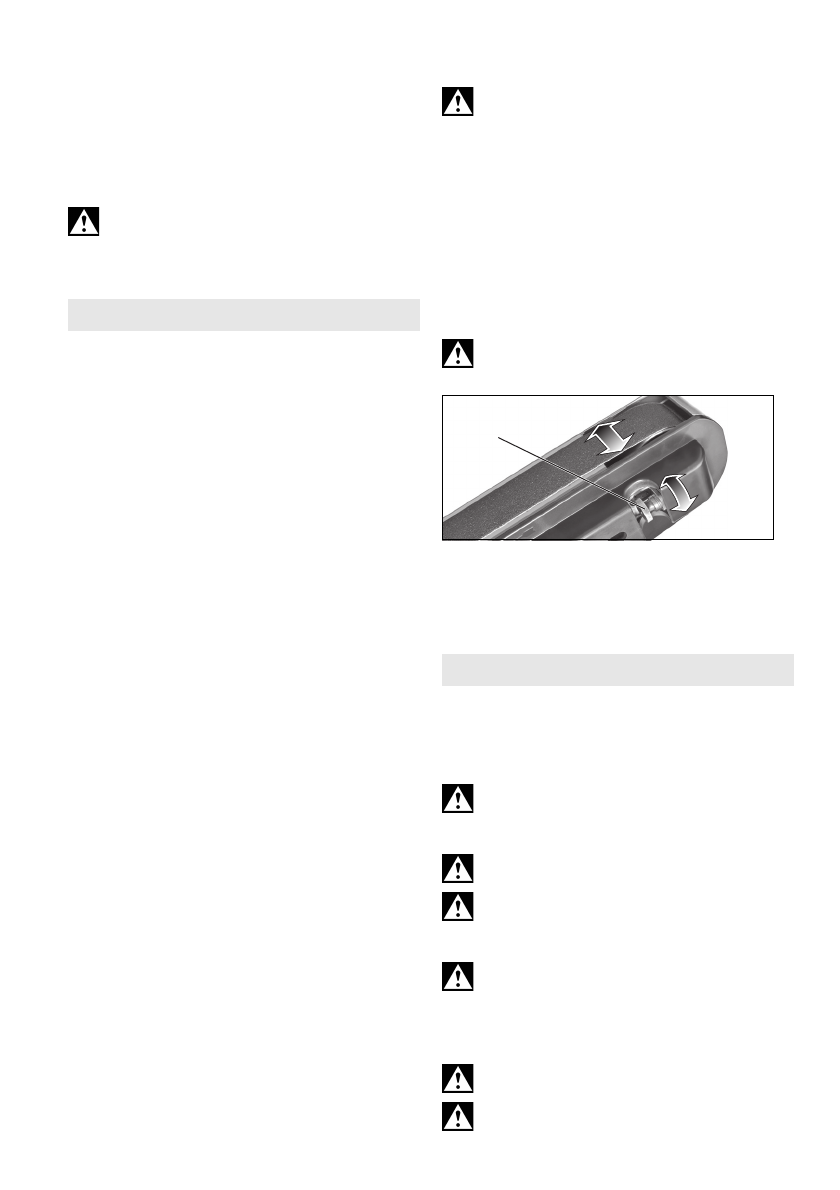

7.7 Setting the angle of the belt sanding arm

(only BS 175) (see page 3 fig. E)

- Loosen the screw at the belt sanding arm

- Put the belt sanding arm in the desired position

- Tighten again the screw at the belt sanding arm

Clean, check and perform maintenance work on the

machine and guard devices regularly. Regularly

clean the inside of the grinding wheels and belt

grinder housing. The grinding wheels and sanding

belt must be able to rotate freely within the housing.

Disconnect the mains plug before starting any

setting, cleaning, maintenance or repair work.

8.1 Grinding wheel change

Use only original Metabo grinding wheels.

The permissible rotational speed specified on

the grinding wheel must be equal to or greater

than the maximum idling speed specified on the

identification plate of the machine.

Grinding wheel check:

suspend the grinding wheel on a thread.

Knock lightly with a piece of hard wood. You will

hear a clear tone if the grinding wheel is in perfect

condition. If you hear a clattering, dull or hollow

sound, the grinding wheel is damaged.

Do not use damaged grinding wheels.

Test run

A test run of approx. 5 min without load must

be carried out after the grinding wheel has been

7. Use

8. Maintenance, cleaning
