INSTALLATION

Drilling the Ceiling/shelf and fixing the frame

DRILLING THE CEILING/SHELF

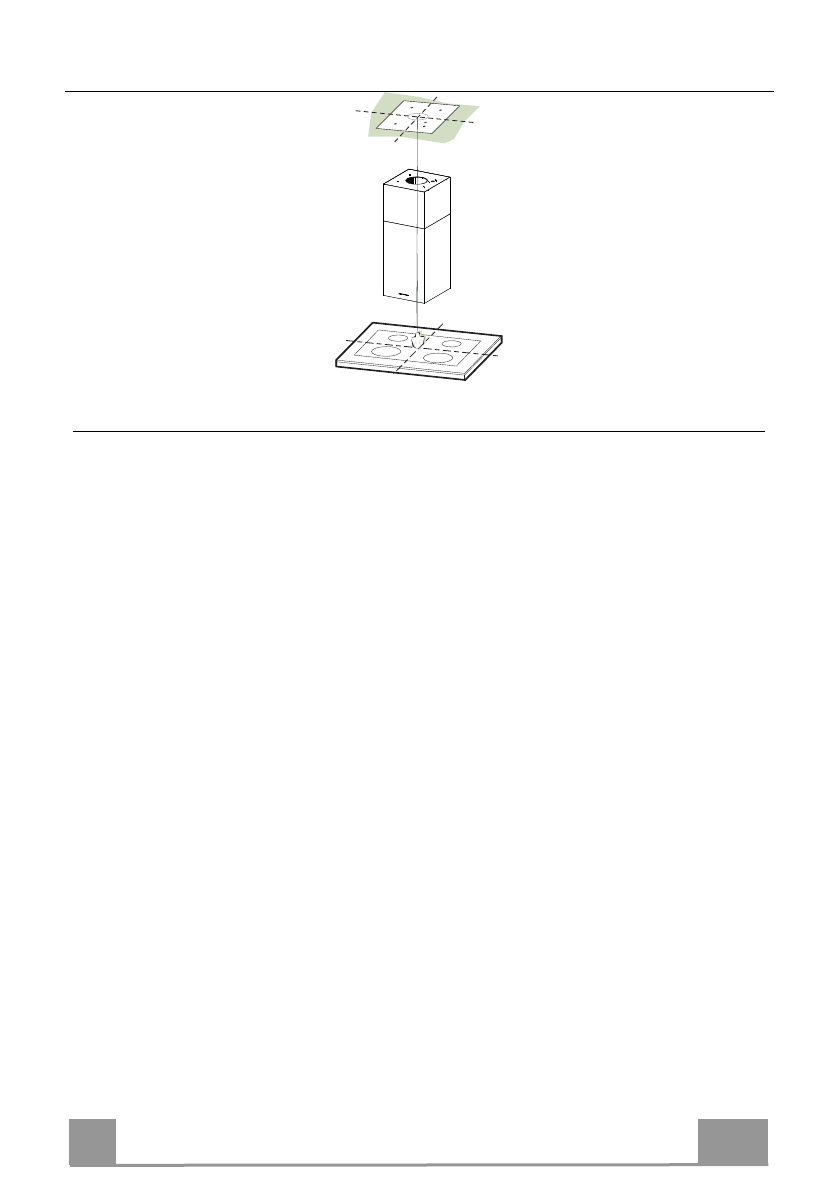

•  Use a plumb line to mark the centre of the hob on the ceiling/support shelf.
•  Place the drilling template

21

 provided on the ceiling/support shelf, making sure that the

template is in the correct position by lining up the axes of the template with those of the hob.

•  Mark the centres of the holes in the template.
•  Drill the holes at the points marked:

•  For concrete ceilings, drill for plugs appropriate to the screw size.
•  For hollow brick ceilings with wall thickness of 20 mm: drill ø 10 mm(immediately insert

the Dowels

11

 supplied).

•  For wooden beam ceilings, drill according to the wood screws used.
•  For wooden shelf, drill ø 7 mm.
•  For the power supply cable feed, drill ø 10 mm.
•  For the air outlet (Ducted Version), drill according to the diameter of the external air ex-

haust duct connection.

•  Insert two screws of the following type, crossing them and leaving 4-5 mm from the ceiling:

•  For concrete ceilings, use the appropriate plugs for the screw size (not provided).
•  for Cavity ceiling with inner space, with wall thickness of approx. 20 mm, Screws

12h

,

supplied.

•  For wooden beam ceilings, use 4 wood screws (not provided).

  •  For wooden shelf, use 4 screws

12g

 with washers

22

 and nuts

23

, provided.
