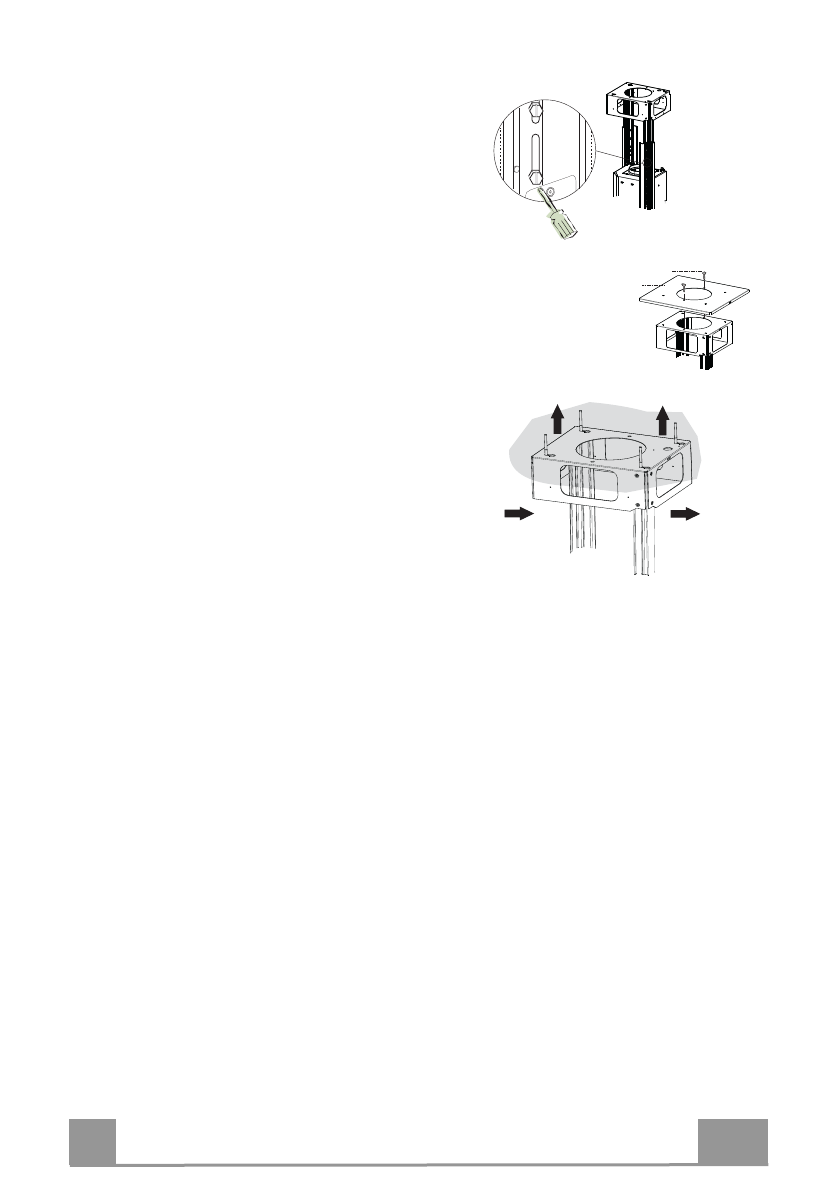

FIXING THE FRAME

If you wish to adjust the height of the frame,  proceed
as follows:
•  Unfasten the metric screws joining the two columns,

located at the sides of the frame.

•  Adjust the frame to the required, then replace all the

screws removed as above.

•  Fix the Fixing Part of the Upper Chimney

26

to the

hanging kit using the 2 screws

12w

(M3 x 8).

•  Lift up the frame, fit the frame slots onto the screws

up to the slot end positions.

•  Tighten the two screws and fasten the other two
  screws provided; before locking the screws com-

pletely, it is possible to adjust the frame by turning it,
making sure that the screws do not come out of their
housing in the adjustment slot.

•  It is now possible to place and tighten the 4 safety

screws, Proceed as follows:

  •  drill the ceiling with a 10 mm ø bit taking as refer-

ence the holes of the side parts of the

upper

chimney fixing part.

  •  insert the 4 dowels (provided).
  •  insert the washers (provided) to the screws and

tighten the screws

•  The Frame must be securely fastened so as to support

both the weight of the Hood and the stress caused by
occasional axial pressure against the fitted  Appli-
ance. After fixing, make sure that the base is stable
even when the Frame is subjected to lateral stress.

•  If the Ceiling is not strong enough in the area where

the hood is to be fixed, the Installer must strengthen
the area using suitable plates and counterplates an-
chored to resistant structures.

12w

26

2

2

1

1
