EN

1

12

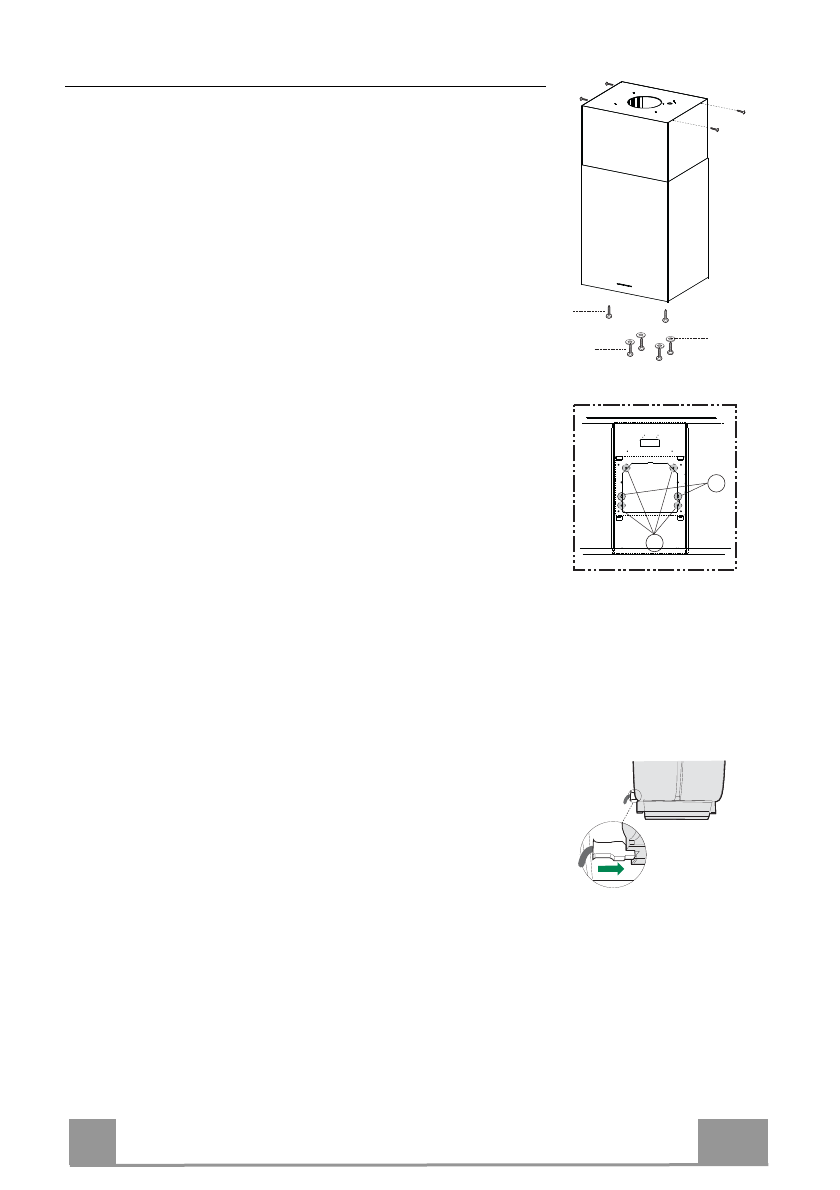

Flue assembly - Mounting the hood body

•  Insert the upper duct and fix it on the top of the upper duct

connection using the

12c

 screws (2.9 x 9.5) supplied with the

appliance.

Recirculation version

•  It is necessary to make sure that the air outlet connection

15

 is

placed correctly so that the air outlet grid in it corresponds to
that of the chimney.

•  If the grids of the two parts are not corresponding to each

other, it will be necessary to remove the chimney and to adjust
the position of the air outlet connection

15

, and at last to as-

sembly the parts again by following the earlier indications.

Before fixing the hood body to the frame:
•  Screw the 2 screws

12f

 half way into the holes provided in the

sides of the bottom of the frame.

•  Open the suction panel by turning the specific knob.
•  Disconnect the panel from the hood canopy by sliding the fix-

ing pin lever.

•  Remove the grease filters from the hood body.
•  Remove any activated charcoal filters.
•  Lift the hood canopy and engage the screws

12f

 in the slots (

A

)

as far as they will go.

•  Working from below, fix the hood canopy to the frame (

B

),

using the 4 screws

12q

and 4 washers

22

 provided, then tighten

all the screws securely.

A

B

12c

22

12f

12q

ELECTRICAL CONNECTION

•  Connect the Hood to the mains power supply, inserting a two-

pole cut-out switch with contact aperture of at least 3 mm
along the line.

•  Pull the Comfort Panel to open it, ensure that the supply cable

connector is properly inserted into the Suction device socket

•  Join the connectors.
•  Install the odour filter and the charcoal filter in case the hood is

to be used in recycling version.

•  Install the grease filter again, and successively the suction

panel.
