www.timberk.com • electrical storage water heater

9

IMPORTANT!

To provide reliable operation and safe use of the

water heater, prior to the first run check if it is properly

connected to the 220V AC mains. The water heater to

be connected must be securely linked with the earth

circuit of your electric mains. If the water heater is

not grounded, then in case of a short circuit GFCI,

supplied with the heater, may not operate. It is

dangerous.

IMPORTANT!

Wall outlet should be rated on voltage not lower than

10А, electric main cabel with cooper section not

lesser then 3х1,5 mm

2

 (for cooper).

Electric  plug of  the device corresponds one block

with GFCI.

1. The water heater is designed to be connected to 220V single-phase

electric main. Prior to connecting make sure that parameters of the electric

main in the place of connection correspond to parameters, specified on the

identification plate with technical parameters of the appliance. You should

follow the current electrical safety code when installing the water heater.
2. The power outlet must be properly grounded. The outlet must be

designed for rated current not less than 10A. The power outlet and plug

must always be dry to prevent current leakage. Regularly check if the

power plug is tightly connected to the outlet. Do it in the following order:

insert the power plug into the outlet, switch off the water heater after half-

hour operation and unplug the cord, check if the plug is heated by your

hand. If the plug is heated over 50°C, then to prevent damages, accidents

and fire as a result of bad electrical contact, replace the outlet with a new

one. A specialist must do this.
3. Power cord of the appliance is a single unit with GFCI (Ground Fault

Circuit Interrupter).

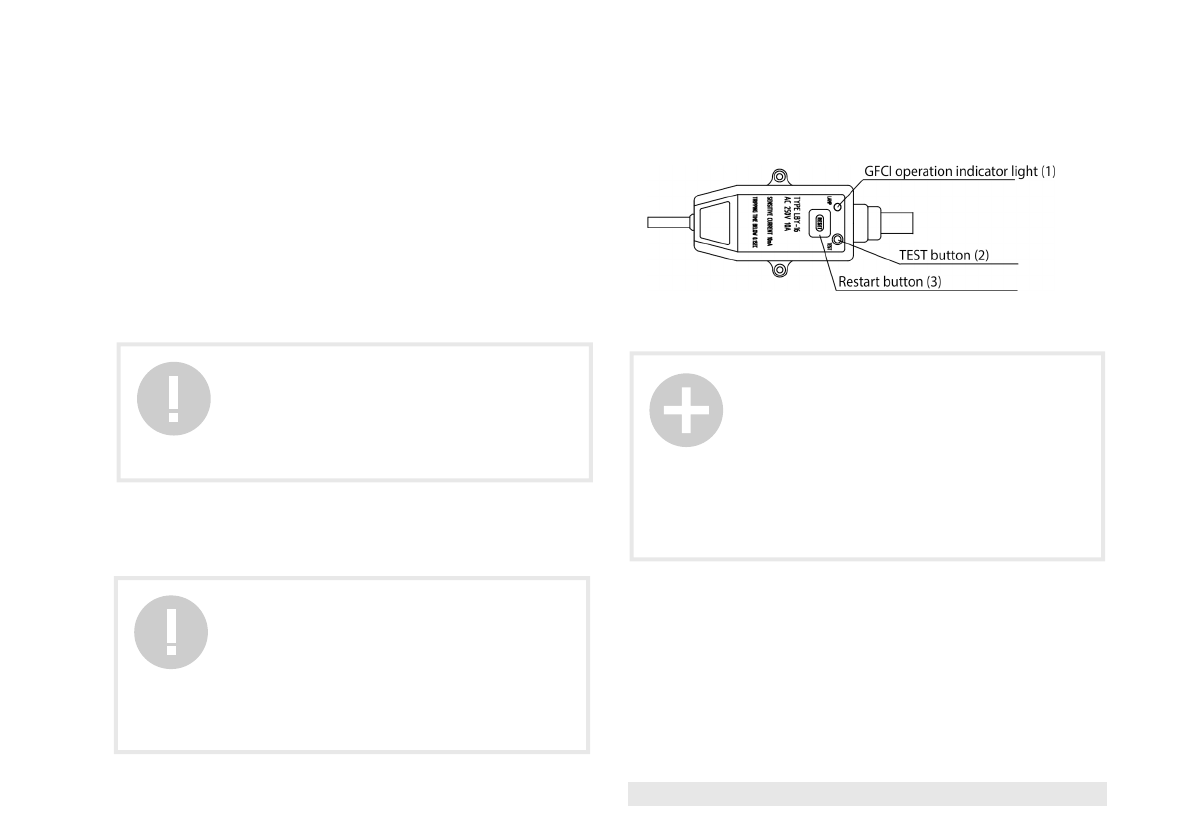

GFCI (Ground Fault Circuit Interrupter) (Fig. 9)

1. Connect the cable to the mains, indicator (1) will light up.

2. Press button (2) for testing, voltage will be cut off, indicator (1) will light

down and restart button (3) will go upwards.

3. Press button (3) to restart the appliance, voltage will be restored and

indicator (1) will light up.

Electric socket should be no lower, than 10A, power card with copper inner

part, cross-section of copper should be not less, than 3x1,5 mm

2

.

Electric plug has combined with GFCI.

Fig. 7

NOTE:

- if pressing test button (2) voltage is not cut off and/or

indicator (1) continues to be lighted, it means that GFCI

safety device is not operating properly.
- if pressing restart button (3) voltage is not restored

and/or indicator (1) doesn’t light up, it means that the

water heater is not operating properly. In both cases

disconnect the water heater and call the service center.
- to reduce the risk of an electric shock, do not

disassemble, remove or fill liquid in this appliance.
