www.timberk.com • electrical storage water heater

12

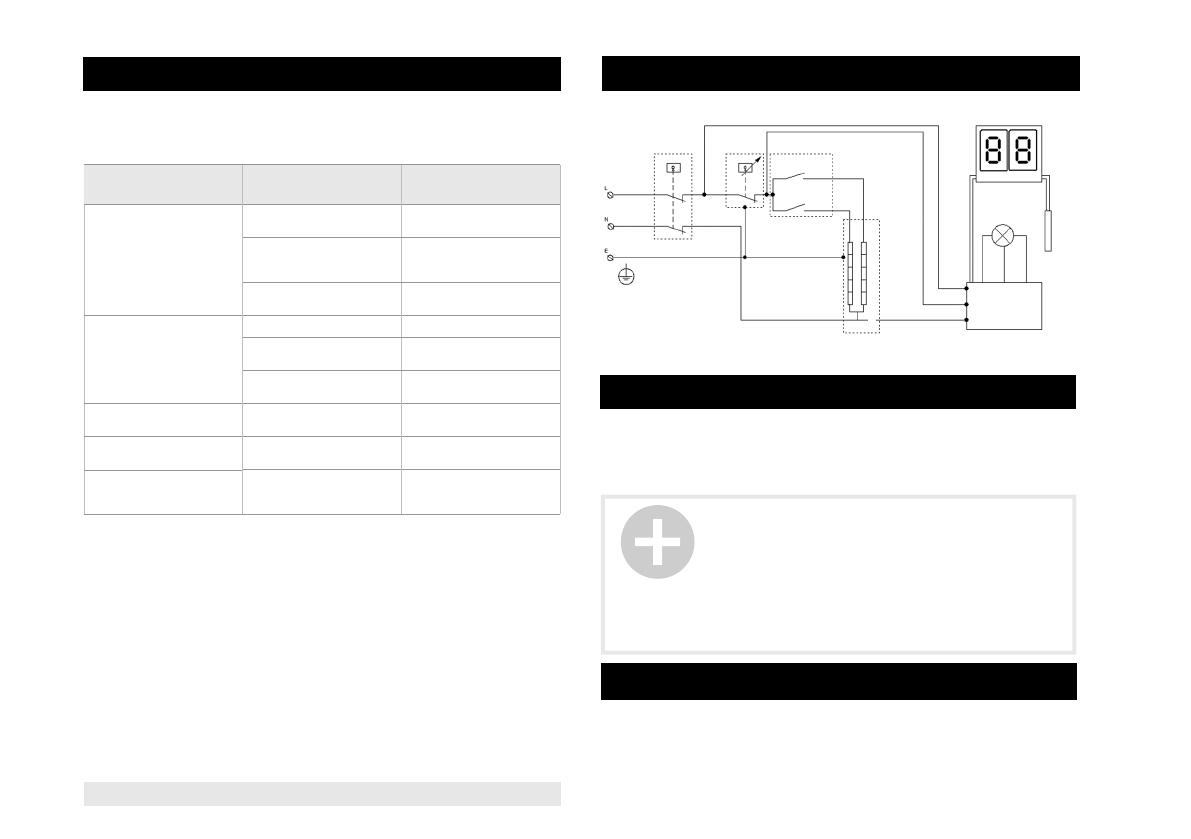

12. WIRING DIAGRAM

temperature

limlter

hating power switch

indication

light

temperature

sensor

LED-display

termostat

indication light

power board

heating element

Fig. 11

The water heater should be disposed upon the end of life. You can obtain

detailed information on water heater disposal from a representative of local

authorities.
Device service life is 10 years.

13. DISPOSAL

14. SERIAL NUMBER AND PRODUCTION DATE

Serial number, production month and year are included in ID LINE product

code. Sticker with ID LINE code is pasted on product surface. Month and

two last numbers of year is putted after symbol “-“.

NOTE:

Technical and any other characteristics of the

appliance can be revised.
Such changes may be introduced without warning and

prior notice to the consumers.
The manufacturer shall not be liable for changes in the

appliance’s wiring diagram that may be implemented

without notice to the consumers.

Possible malfunctions and troubleshooting methods
Table 4

10. TROUBLESHOOTING

Failure

Possible causes

Troubleshooting method

Heating indicator light doesn’t light up,
water is not heated

1. Temperature adjustment device
is broken.

Contact a repairer, TIMBERK service
center.

2. Temperature limiter was actuated or
was not switched on.

Switch on the temperature switch
following instructions on its activation.
(page 15)

3. Temperature limiter is broken.

Contact a repairer, TIMBERK service
center.

Water doesn’t flow from the hot water
discharge cock

1. Water feed is cut off.

1. Wait until water supply is restored.

2. Water pressure is too low.

2. Switch on the water heater again,
when normal water pressure restores.

3. Water supply exhaust valve is
closed.

Water temperature is too high

Water temperature control system
is damaged.

Contact a repairer, TIMBERK service
center.

Water leakage

Seal at the point of pipe connection
is broken.

Replace the joint seal.

Water flows from the appliance’s case

Breaking of the internal tank
(corrosion)Seal at the point of the
heating element connection is broken.

Contact a repairer, TIMBERK service
center.
