www.timberk.com • electrical storage water heater

5

Capacity, l

A

B

C

D

E

F

G

H

SWH FED1 /

SWH FSQ1 series

30

573

593

280

235.9

432.9

13.5

72.3

-

50

858

878

450

235.9

432.9

13.5

72.3

-

80

967

987

500

273.2

492.2

13.5

103.2

-

100

1187

1207

650

273.2

492.2

13.5

103.2

-

Dimensions

IMPORTANT!

Technical characteristics of the water heater you

purchased as of the date of manufacture correspond to

data, specified in the table. Technical characteristics and

scope of delivery can be revised without any prior notice.

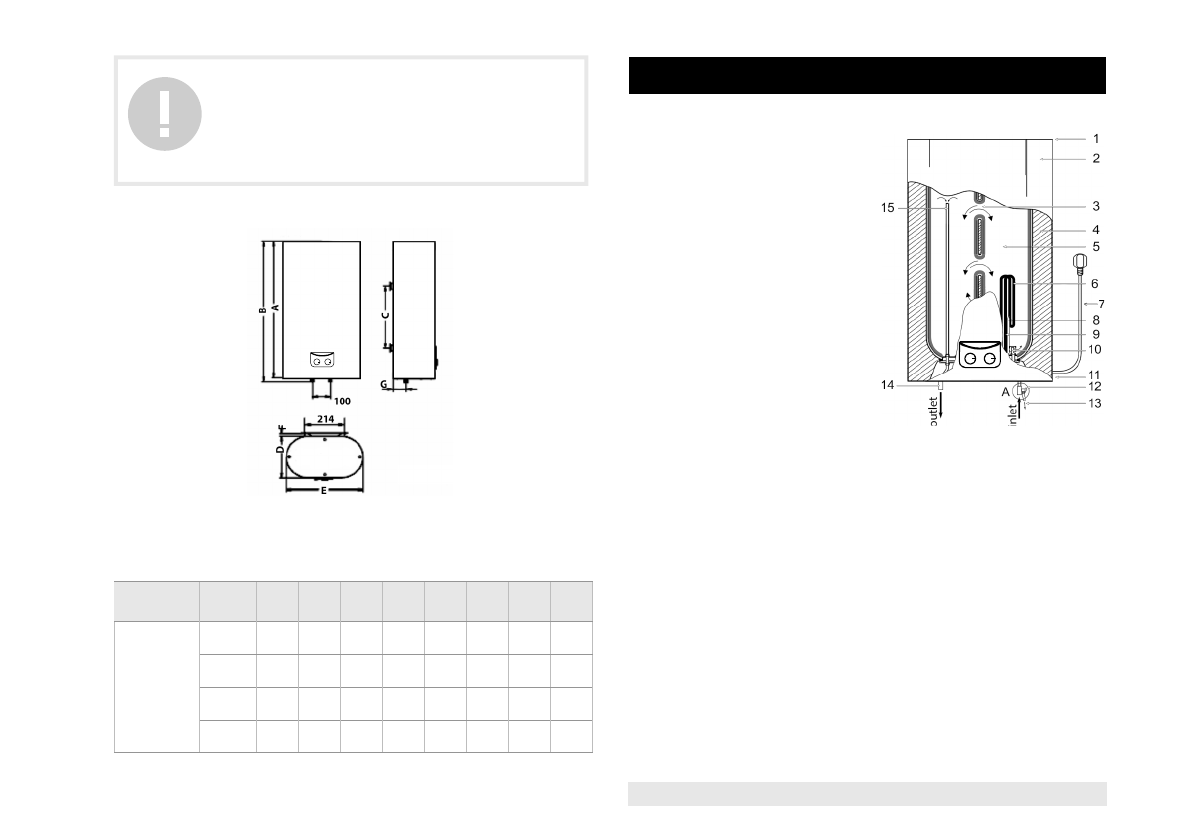

Dimensions of water heaters (mm) are made in accordance with fig. 1.

Table 3

Fig. 1

Fig. 2

1 – the upper composite protective

cover
2 – external decorative case
3 – system of flows (3 overflows)
4 – urethane foam heat insulation

layer
5 – internal tank
6 – heating element
7 – power cable
8 – thermostat sensor pipe
9 – protective magnesium anode
10 – inlet nozzle with a splitter
11 – the lower composite protective

cover
12 – composite pressure safety

valve (make sure to install onto the

cold water supply tube) Pos. A
13 – emergency discharge of

surplus water pressure (a small

water leakage is possible from the

emergency discharge hole when

the water heater is operating. It is

normal)
14 – hot water outlet nozzle
15 – the upper part of the hot water

intake tube

* Depending on the product batch, GFCI can

be located not within the power cable electric

plug.

5. WATER HEATER DESCRIPTION
